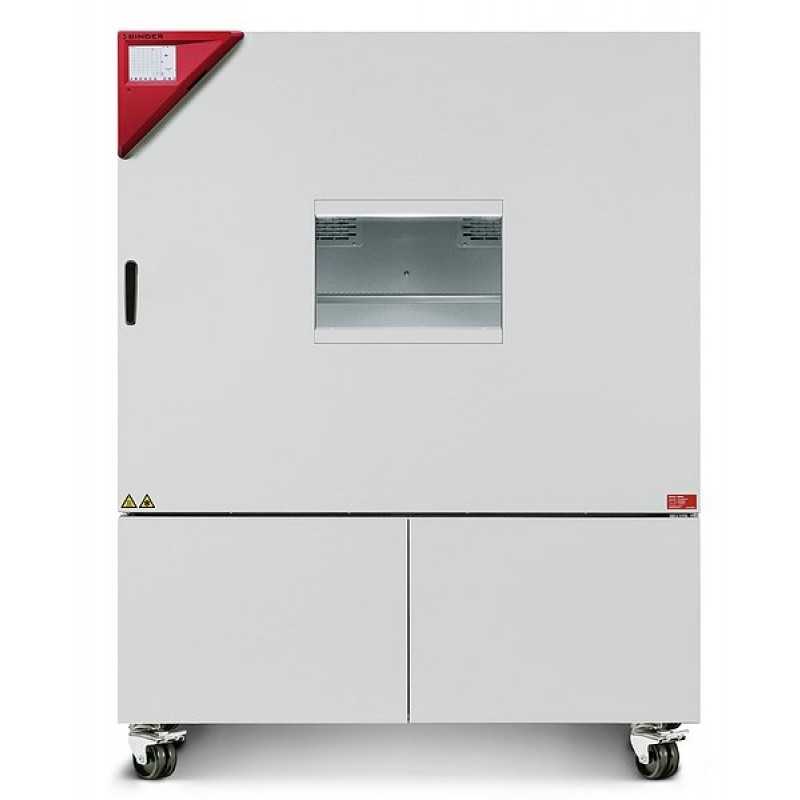

BINDER MKT720-480V-C Series MKT - Dynamic Climate Chambers, For Rapid Temperature Changes With Extended Low Temperature Range, 9020-0365

Benefits

Homogeneous climate conditions thanks to APT.line™ technology
Comprehensive programming and data acquisition
Large heated viewing window

Important characteristics

Temperature range: -70 °C to +180 °C
4 zero-voltage relay contacts
APT.line™ preheating chamber technology
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
BINDER Multi Management Software APT-COM™ Basic Edition
Troubleshooting system with visual and audible alarms
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
2 access ports with silicone plugs: 80 mm, left and right
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
4 castors, two with brakes
Computer interface: Ethernet
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
1 stainless steel rack
Inner chamber made of stainless steel
CFC-free refrigerants R-452A and R-23
Cooling with cascade compressor cooling unit

Technical specifications

Performance Data Temperature:

Average cooling down time according to IEC 60068-3-5 [K/min]: 4
Average heating-up rate according to IEC 60068-3-5 [K/min]: 4.5
Cooling down time from 180 °C to -70 °C [min]: 120
Max. heat compensation at 25 °C [W]: 5000
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -70…180
Temperature variation depending on setpoint [± K]: 0.3…2

Electrical data

Nominal power [kW]: 13
Phase (Nominal voltage): 3~
Power frequency [Hz]: 60
Rated Voltage [V]: 480
Unit fuse [A]: 32

Doors

Unit doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 44.9
Height net [in]: 79
Width net [in]: 62.3

Internal Dimensions

Depth [in]: 23.64
Height [in]: 40.2
Width [in]: 47.3

Measures

Interior volume [cu.ft.]: 25.9
Load per rack [lbs]: 88
Net weight of the unit (empty) [lbs]: 2
Permitted load [lbs]: 353
Viewing window height [in]: 11.82
Viewing window width [in]: 20.02
Wall clearance back [in]: 11.82
Wall clearance sidewise [in]: 7.88

Environment-specific data

Sound-pressure level [dB(A)]: 67

Fixtures

Number of shelves (std./max.): 1/11
