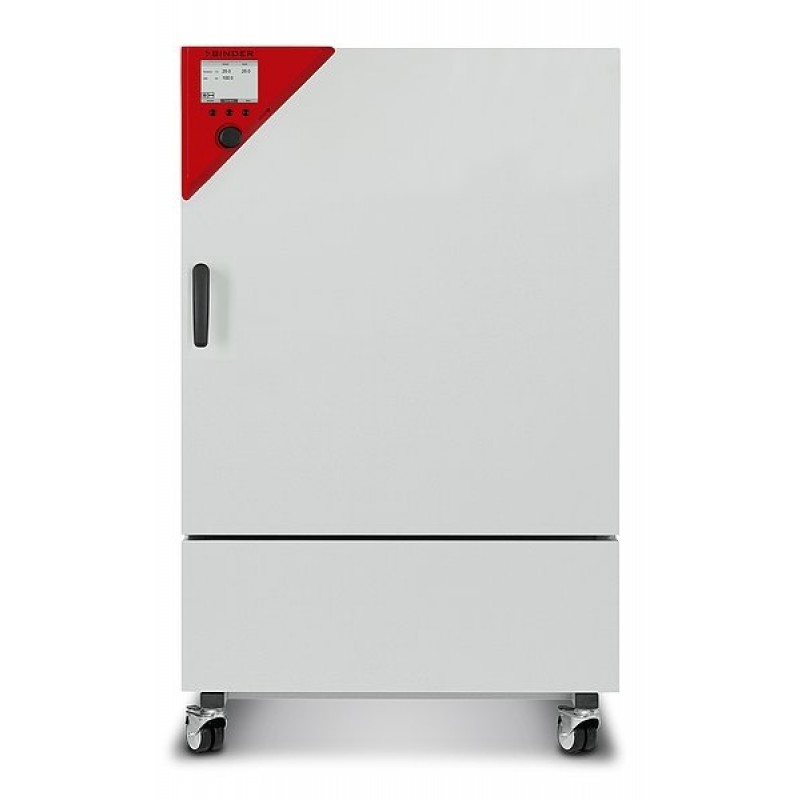

BINDER KB240UL-120V Series KB - Refrigerated Incubators, With Powerful Compressor Cooling, 9020-0304

Benefits

Safe, reproducible incubation, even at high ambient temperatures
Disinfection routine at +100 °C
Up to 30% lower energy consumption compared to the previous model

Important characteristics

Temperature range: -10 °C to +100 °C
APT.line™ preheating chamber technology
Up to 30% lower energy consumption compared to the previous model
Refrigeration with compressor refrigerated unit
Adjustable fan speed
Controller with time-segment and real-time programming
Inner door made of tempered safety glass
2 stainless steel racks
Stackable
Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
Computer interface: Ethernet

Technical specifications

Performance Data Temperature:

Recovery time after 30 seconds door open at 37 °C [min]: 2
Temperature fluctuation at 37 °C [± K]: 0.1
Temperature range: -10…100
Temperature range °C: -10…100
Temperature variation at 37 °C [± K]: 0.2

Electrical data

Nominal power [kW]: 1.2
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 100…120
Unit fuse [A]: 16

Doors

Inner doors: 1
Unit doors: 1

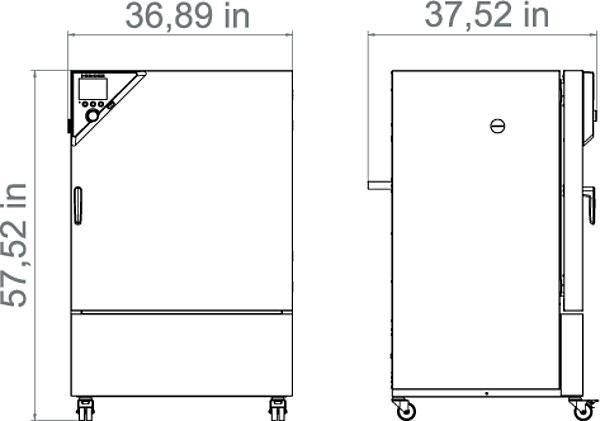

Housing dimensions not incl. fittings and connections

Depth net [in]: 31.52
Height net [in]: 57.7
Width net [in]: 36.45

Internal Dimensions

Depth [in]: 19.11
Height [in]: 30.93
Width [in]: 25.61

Measures

Interior volume [cu.ft.]: 8.7
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 375
Permitted load [lbs]: 220
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 37 °C [Wh/h]: 270
Sound-pressure level [dB(A)]: 53

Fixtures

Number of shelves (std./max.): 2/9
