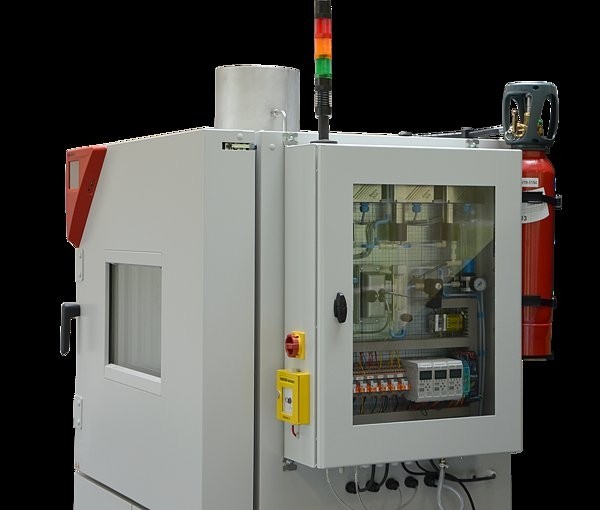

BINDER LITMK720-480V-C Series LIT MK - Battery Test Chambers, With Safety Equipment For Rapid Temperature Changes, 9020-0405

Benefits

Safety thanks to extensive protective measures
Homogeneous climate conditions thanks to APT.line™ preheating chamber
Extensive programming and data collection
Excellent overview of the test object thanks to large heated viewing window

Important characteristics

Temperature range: -40 °C to +110 °C
Class 2 independent temperature safety device when temperature is set to +120 °C

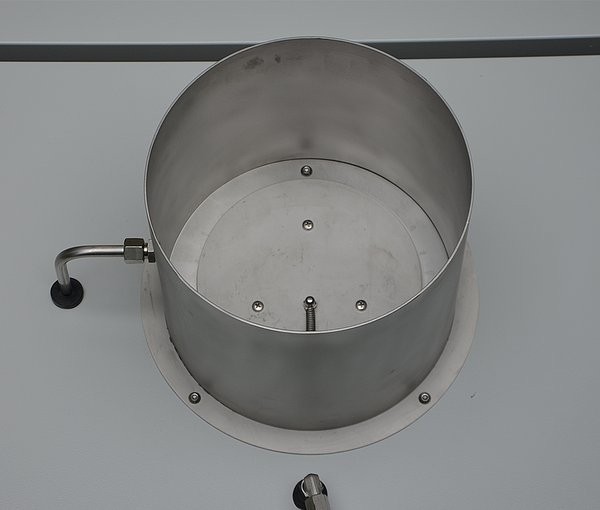

Reversible stainless steel pressure relief flap installed in the middle on top of the unit

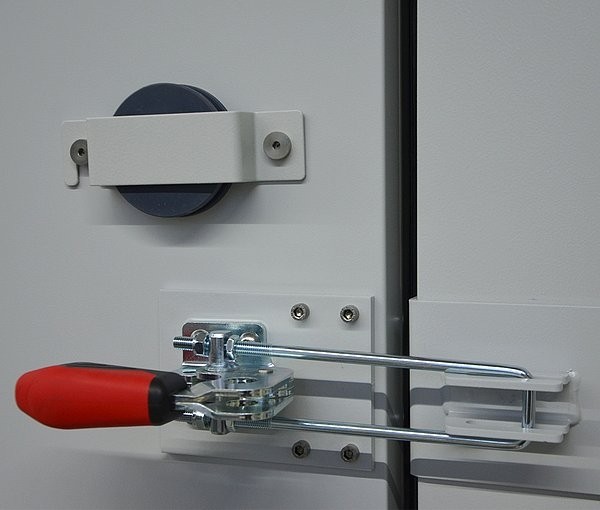

Enhanced door-locking mechanism with reinforced brackets

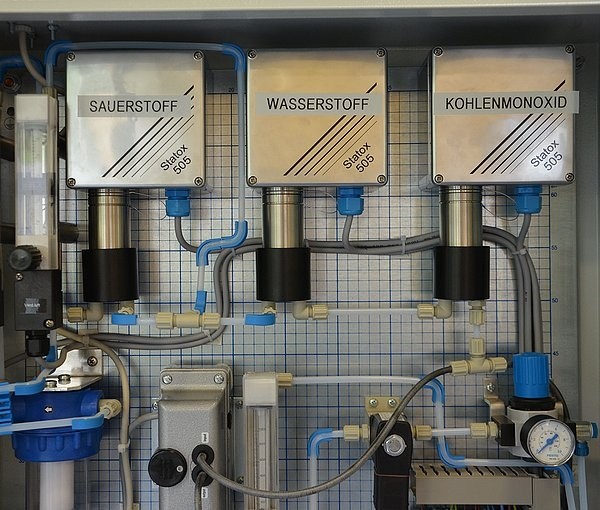

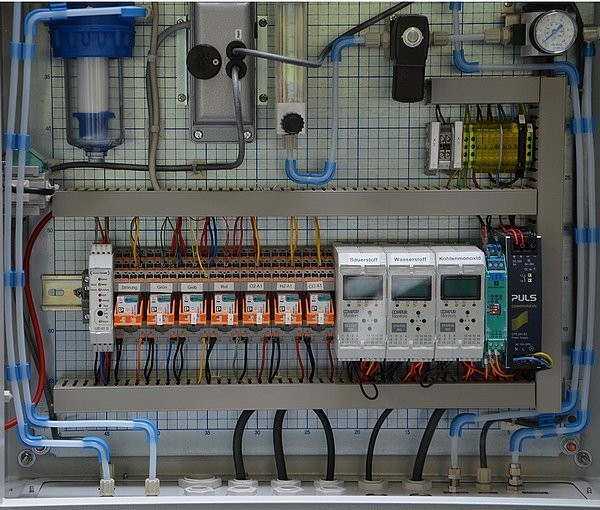

Monitoring of CO, H₂, O₂, and temperature in testing area atmosphere
Inertization equipment

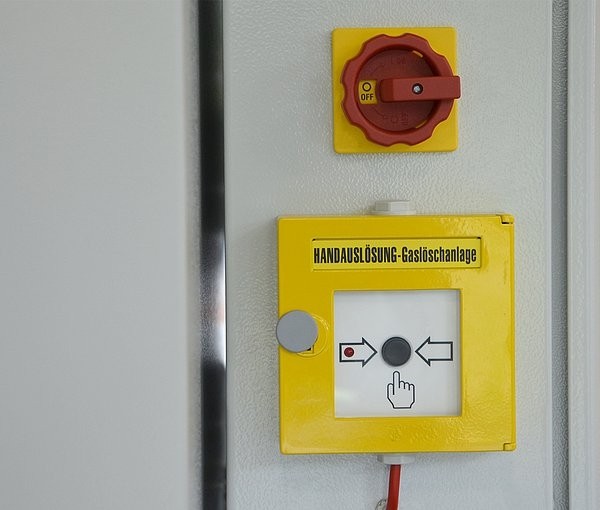

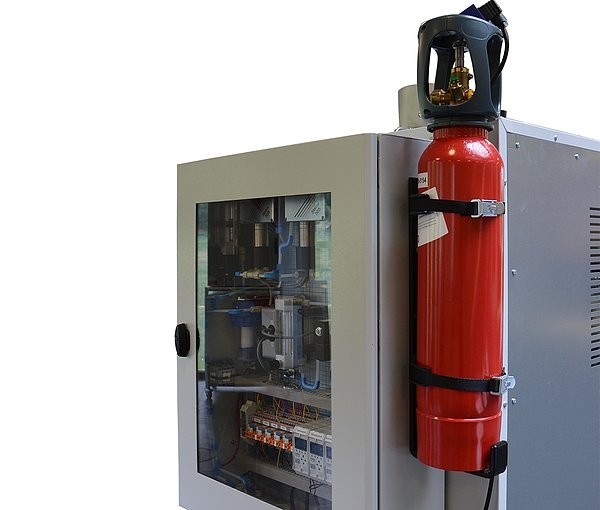

CO₂ fire suppression
APT.line™ preheating chamber technology
Programmable condensation protection for samples
Heated viewing window with LED interior lighting
BINDER Multi Management Software APT-COM™ basic edition
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB

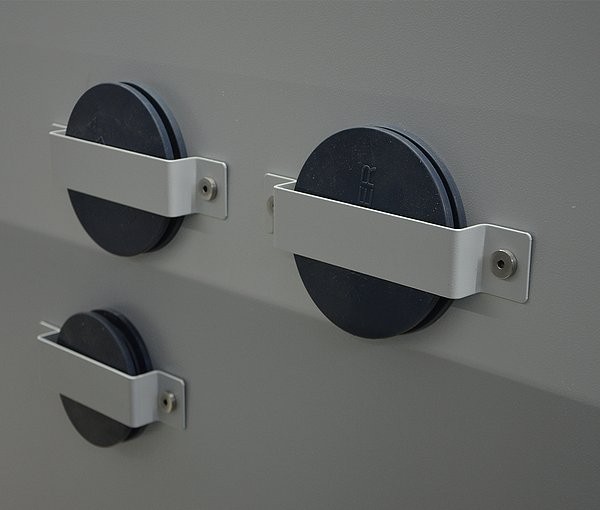

2 access ports with silicone plugs, 80 mm, left and right
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Computer interface: Ethernet
1 stainless steel rack, can be freely positioned
CFC-free refrigerant R-452A
Cooling with compressor cooling unit
TÜV SÜD confirms that the LIT MK 240 and LIT MK 720 chambers are suitable for EUCAR level 6

Optional equipment

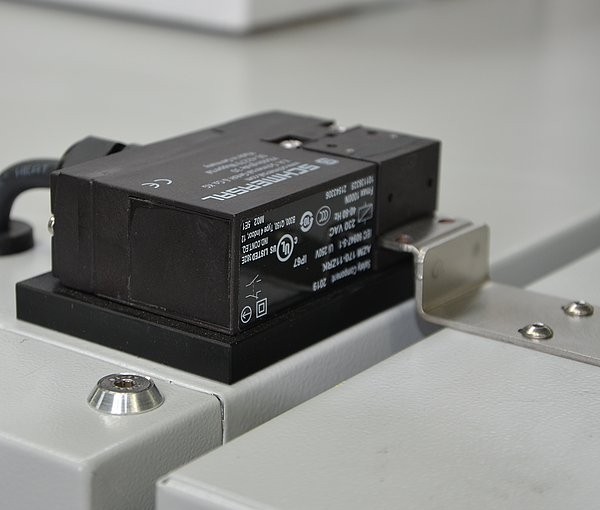

Electromechanical door-locking mechanism
Additional access ports available in various sizes and locations
Multi Management Software APT-COM for managing, recording, and documenting unit parameters
Services – wide range of services to ensure that the unit functions correctly

Technical specifications

Performance Data Temperature:

Average cooling down time according to IEC 60068-3-5 [K/min]: 3.4
Average heating-up rate according to IEC 60068-3-5 [K/min]: 4
Max. heat compensation at 25 °C [W]: 3600
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…110
Temperature variation depending on setpoint [± K]: 0.3…2

Electrical data

Nominal power [kW]: 8.7
Phase (Nominal voltage): 3~
Power frequency [Hz]: 60
Rated Voltage [V]: 480
Unit fuse [A]: 16

Doors

Unit doors: 1

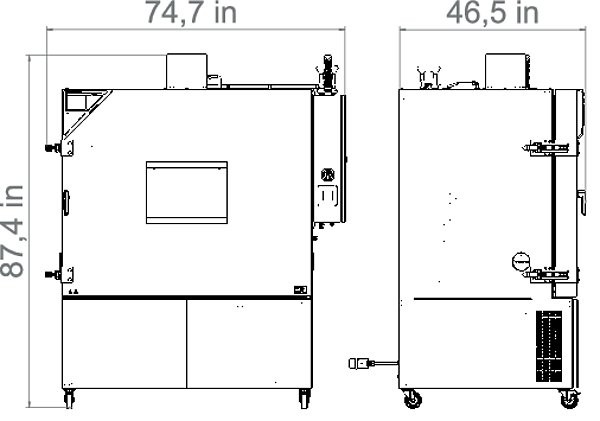

Housing dimensions not incl. fittings and connections

Depth net [in]: 46.7
Height net [in]: 79
Width net [in]: 70.7

Internal Dimensions

Depth [in]: 23.64
Height [in]: 40.2
Width [in]: 47.3

Measures

Interior volume [cu.ft.]: 25.9
Load per rack [lbs]: 88
Net weight of the unit (empty) [lbs]: 1151
Permitted load [lbs]: 353
Viewing window height [in]: 11.82
Viewing window width [in]: 20.02
Wall clearance back [in]: 11.82
Wall clearance sidewise [in]: 7.88

Environment-specific data

Sound-pressure level [dB(A)]: 67

Fixtures

Number of shelves (std./max.): 1/11
