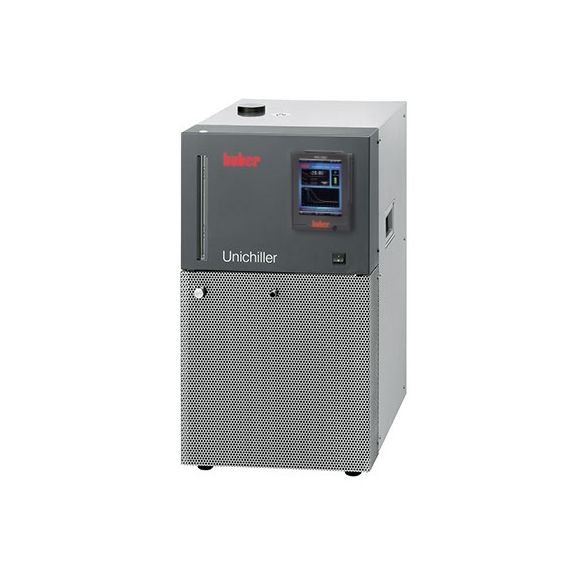

Huber 3050.0005.01 Unichiller P010-H with Pilot ONE, 208V 2~ 60Hz
Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling. Chillers also reduce water consumption and help conserve the environment whilst lowering operating costs. Unichillers are suitable for the removal of heat from chemical processes, cooling technical plants or as a central cooling water supply for laboratories. All Unichillers are designed for continual operation at ambient temperatures up to +40°C. Installation in an outside areas is possible with optional weather protection and winter operation packages. Pumps are available with an extended pressure and flow rate for applications with a high pressure drops.
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Functions
Environmentally-friendly, economic cooling solution
High efficiency
Precise temperature control
Powerful circulation pump
Robust stainless construction
Reliable continuously operation with warning functions
Easy to fill and empty
Adjustable bypass, level indicator with sight glass and digital manometer
Pilot ONE controller with 5.7" touchscreen
2 x USB (Host and Device), Ethernet and RS232 interfaces
Technical specifications
General information & temperature controller
Temperature range: -20...100 °C
Temperature stability: ±0.2 °C
Controller: Pilot ONE (E-grade "Basic")
Safety class: III / FL
Protection class: IP20
Dimensions (W x D x H): 350 x 496 x 622 mm | 13.78 x 19.53 x 24.49 inches
Weight: 57 kg | 125.68 pounds
Heating / cooling capacity
Heating capacity: 1,6 kW
Cooling capacity: 15 0 -10 -20 °C
1 0,8 0,5 0,15 kW
Cooling machine: air-cooled
Refrigerant (ASHRAE, GHS): R449A (A1, H280)
Circulation pump
Pressure pump max.: 25 lpm ; 2.5 bar | 6.6 gpm ; 36.25 psi
Pump connection: G3/4 AG male
Connections
Pt100 connection: Pt100
Digital interface: RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.: 5...40 °C
Noise level: 57 dB(A)
Filling volume min.: 3.8 Liters | 1 gal
Volume of expansion: 1.7 Liters | 0.45 gal
Power supply: 208V 2~ 60Hz
| Brand | White Box by Sycamore |
|---|---|
| UNSPSC | 41103007 |
| Power Requirement | 208V 2~ 60Hz |
| Temperature Stability (±ºC) | ±0.2 ºC |
| Temperature Range | -20...100 °C |
