Mfg Part Number
SVAC2
Shel Lab Vacuum Oven 12 x 20 x 12 in, 1.67 cu.ft, 110V
Quick Overview
Type: Vacuum Oven
Exterior Dimensions: 20.5 x 29.5 x 26.3 in
Temperature Range: 10-220 °C
Volume: 1.67 cu.ft
Voltage: 110V
$8,158.84
Order will ship within 1-3 business days
SHEL LAB vacuum ovens provide exceptional capabilities for fast and gentle drying of heat sensitive materials. They prevent residue accumulation on products and also allow safe drying of materials at lower temperatures than typically required when using convection ovens. All SHEL LAB vacuum ovens are built with a seamless stainless steel chamber for exceptional durability. Our double plenum design meets UL, CSA and EU safety requirements resulting in a cool outer surface. To achieve required vacuum levels, users can choose from a 3/8 inch orifice or a KF25 fitting to withstand heavy use and minimize draw-down time. Maximum permitted end vacuum is 10 mTorr. Leak rate is 10 mTorr per hour.

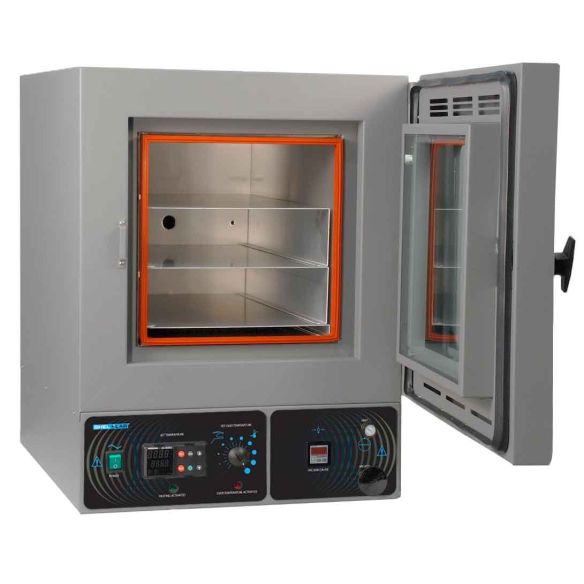

The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples.
SHEL LAB vacuum ovens are equipped with silicone gaskets. While these gaskets resist a wide variety of temperatures and pressures, they can breakdown in the presence of solvents and acids.
The Vacuum Oven contains a 12 x 20 x 12 in interior dimension and it can also contain a 3 level shelving with a total of 1.67 cu.ft
SVAC2 is a CE approved Vacuum Oven that contains a Digital control and display with a 24 month limited warranty.
| Brand | Shel Lab |
|---|---|
| UNSPSC | 41104509 |
| Certificate | CE |
| Heating Time | 90 min at 150°C |
| Oven Type | Vacuum Oven |
| Temperature Uniformity | 6% of SP °C |
| Heat Range | 10-220 °C |
| Temperature Accuracy | 0.1 °C |
| Shelves | 3 |
| Weight | 179 lbs |
| Exterior Dimensions | 20.5 x 29.5 x 26.3 in |
| Power | 150 V |
| Volume | 1.67 cu.ft |
| Interior Dimensions | 12 x 20 x 12 in |
| Capacity | Capacity |
| Display | digital |
| Control Type | Digital |
