Quick Overview

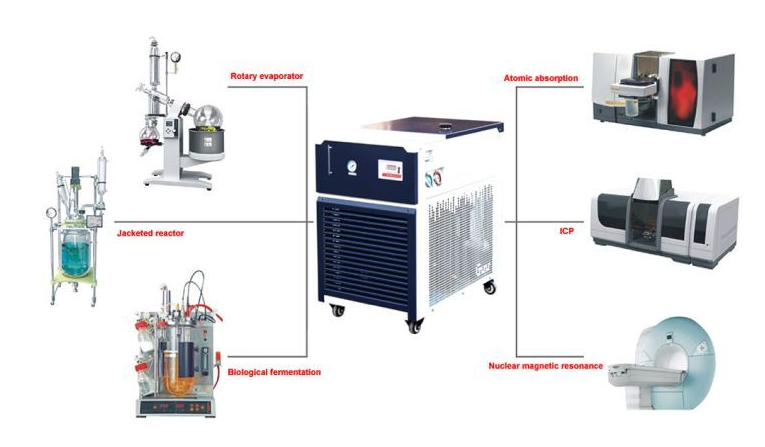

Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

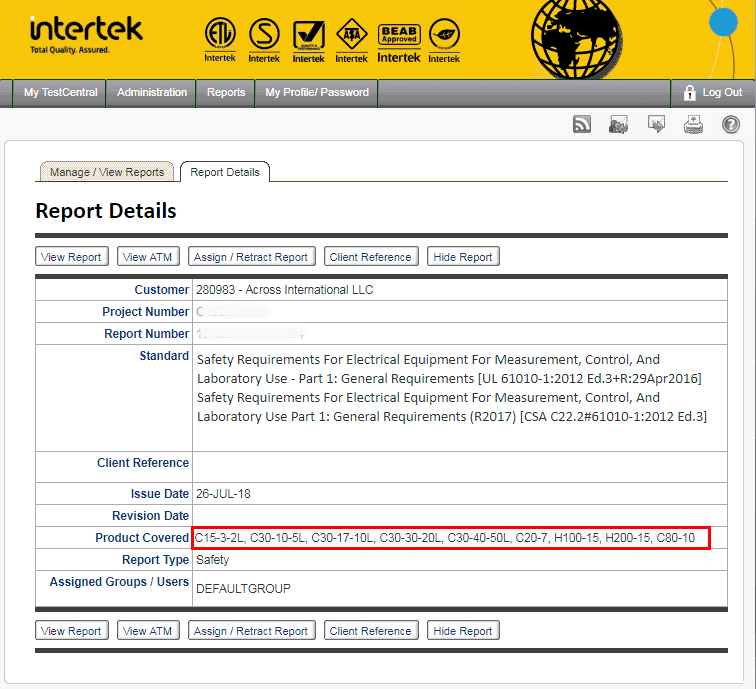

Compliance
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3
Compliance
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3
Details

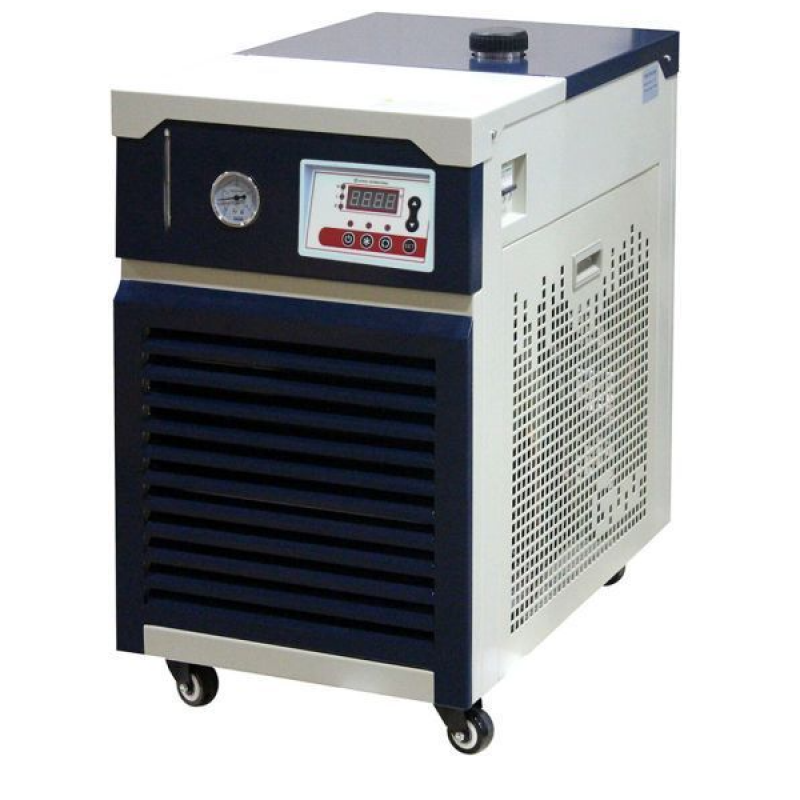

Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -30C/-22F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C30 circulating chiller features
ETL tested to UL and CSA standards
No dry ice or liquid nitrogen needed
Advanced PID digital temp controller
Built-in chilling fluid filter protects the recirculating pump and prevent blockage
All steel construction for durability
Cost saving as the water consumption is completely eliminated
Built-in casters for mobility
Eco-friendly R410A refrigerant
Insulated tubing included
Recommended for 5L rotary evaporators
Specifications

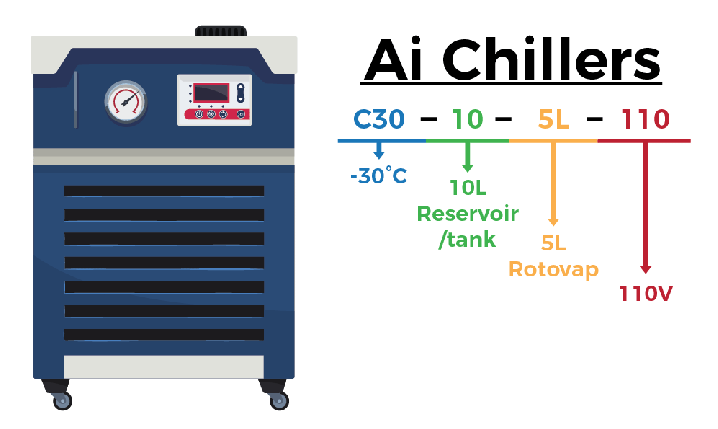

Model C30-10-5L
Temperature range Ambient to -30°C (No load)
Electrical requirements
220V 60Hz 1-PH, 1,100 watts (Not compatible with 50Hz power)
Cooling capacity (Assuming working environment 25°C/77°F)
@ 32°F/0°C: 1,250W
@ 14°F/-10°C: 800W
@-4°F/-20°C: 300W
@-22°F/-30°C: 150W
Compressor
Make: Panasonic
Power: 208-230V 60Hz 1-PH
Number of compressor: one
Refrigerant: R410A
Recirculating pump
Type: Centrifugal
Output: 100 watts
Pumping speed: 20 L/min or 5.3 gallon/min
Maximum head: 20 feet or 6 meter
Maximum pressure: 5.8 psi
Coolant outlet pressure
Displayed on the built-in mechanical pressure gauge
Reservoir
Material: Type 304 stainless steel, polished

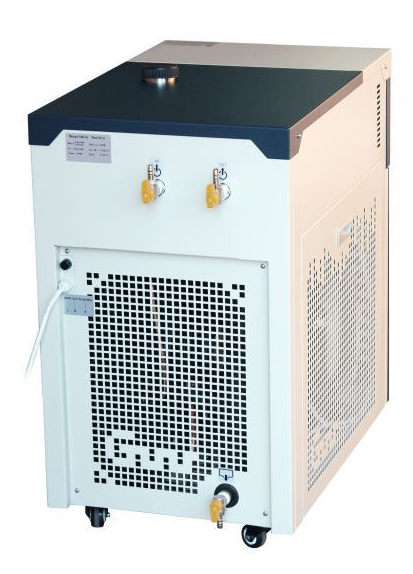

Chilling fluid connection: 3/8" hose barb x 2
Capacity: 10 liters or 2.6 gallons

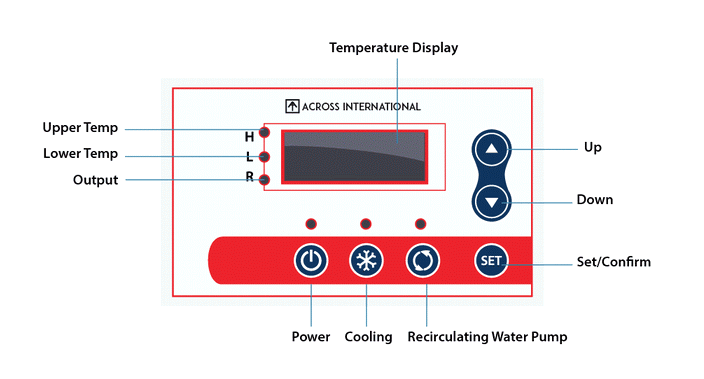

Temperature controller
Type: Digital microprocessor PID controlled
Display unit: Celsius °C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to -30°C
Temperature sensor type
Pt100
Housing
Powder coated type 42 stainless steel
Recommended coolant
For 50°F/10°C or higher:
distilled water
Between 50°F/10°C and -22°F/-30°C:
50% ethylene glycol + 50% distilled water
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters Four
Unit/shipping dimensions
26.5 x 17 x 27" / 32 x 22 x 36" (WxDxH)
Unit/shipping weight 155 Lbs / 210 Lbs
Safety
Compressor over-temp protection
Compressor delay start protection
Short circuit and ground protection
Over-current protection
Recommended for rotary evaporators
Ai 5L SolventVap rotary evaporators
Warranty One year
IMPORTANT! -30C/-22F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C30 circulating chiller features
ETL tested to UL and CSA standards
No dry ice or liquid nitrogen needed
Advanced PID digital temp controller
Built-in chilling fluid filter protects the recirculating pump and prevent blockage
All steel construction for durability
Cost saving as the water consumption is completely eliminated
Built-in casters for mobility
Eco-friendly R410A refrigerant
Insulated tubing included
Recommended for 5L rotary evaporators
Specifications
Model C30-10-5L
Temperature range Ambient to -30°C (No load)
Electrical requirements
220V 60Hz 1-PH, 1,100 watts (Not compatible with 50Hz power)
Cooling capacity (Assuming working environment 25°C/77°F)
@ 32°F/0°C: 1,250W
@ 14°F/-10°C: 800W
@-4°F/-20°C: 300W
@-22°F/-30°C: 150W
Compressor
Make: Panasonic
Power: 208-230V 60Hz 1-PH
Number of compressor: one
Refrigerant: R410A
Recirculating pump
Type: Centrifugal
Output: 100 watts
Pumping speed: 20 L/min or 5.3 gallon/min
Maximum head: 20 feet or 6 meter
Maximum pressure: 5.8 psi
Coolant outlet pressure
Displayed on the built-in mechanical pressure gauge
Reservoir
Material: Type 304 stainless steel, polished
Chilling fluid connection: 3/8" hose barb x 2
Capacity: 10 liters or 2.6 gallons
Temperature controller
Type: Digital microprocessor PID controlled
Display unit: Celsius °C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to -30°C
Temperature sensor type
Pt100
Housing
Powder coated type 42 stainless steel
Recommended coolant
For 50°F/10°C or higher:
distilled water
Between 50°F/10°C and -22°F/-30°C:
50% ethylene glycol + 50% distilled water
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters Four
Unit/shipping dimensions
26.5 x 17 x 27" / 32 x 22 x 36" (WxDxH)
Unit/shipping weight 155 Lbs / 210 Lbs
Safety
Compressor over-temp protection
Compressor delay start protection
Short circuit and ground protection
Over-current protection
Recommended for rotary evaporators
Ai 5L SolventVap rotary evaporators
Warranty One year
Additional Information
| Brand | Across International |
|---|---|
| UNSPSC | 41103007 |
