Quick Overview
Ai C15 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Compliance
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3
Compliance
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3
Details

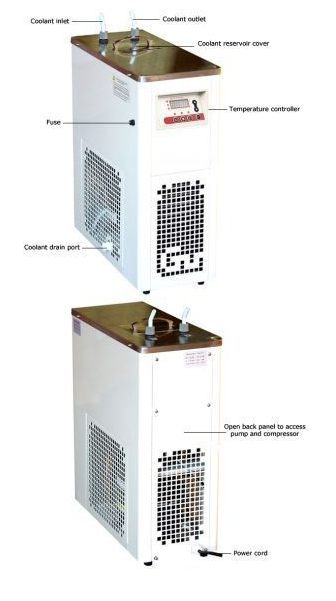

Ai C15 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -15C/5F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
Features
ETL tested to UL and CSA standards
No dry ice or liquid nitrogen needed
360 degree rotating chilling fluid connectors
ANSI standard all stainless steel reservoir
All steel construction for durability
Small footprint saves valuable lab space
Cost saving as the water consumption is completely eliminated
Eco-friendly R404A refrigerant
Insulated tubing included
Recommended for 2L rotary evaporators
Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.
Specifications
Model C15-3-2L
Temperature range Ambient to -15°C (No load)
Electrical requirements
110V 60Hz 1-PH, 500 watts
Compressor Make: Embraco (Brazil)
Power: 115V 60Hz 1 HP
Number of compressor: one
Refrigerant: R404A (Eco-friendly)
Cooling capacity @0°C: 400W

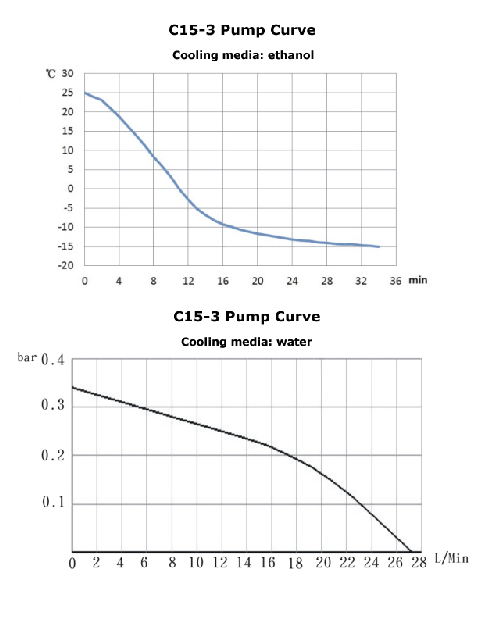

Recirculating pump
Make: Shanghai XinXiShan MP-20R (China)
Type: Centrifugal
Output: 15 watts
Power: 110V 50/60Hz 310mA 2650-3100 rpm
Pumping speed: 17 L/min or 4.5 gallon/min
Maximum head: 6.6 feet or 2 meter
Maximum pressure: 2.9 psi
Reservoir
Dimensions: 5 x 11 x 5" (WxDxH)
Material: Type 304 stainless steel, polished
Chilling fluid connection: 3/8" hose barb x 2
Capacity: 3 liters or 0.8 gallons
Temperature controller
Type: Digital microprocessor PID controlled
Display unit: Celsius °C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to -15°C
Temperature sensor type
Pt100
Housing Powder coated type 42 stainless steel
Recommended coolant
For 50°F/10°C or higher:
distilled water
Between 50°F/10°C and 5°F/-15°C:
50% ethylene glycol + 50% distilled water
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters No
Unit/shipping dimensions
16 x 9 x 22" / 24 x 14 x 30" (WxDxH)
Unit/shipping weight
60 Lbs / 105 Lbs
Safety Compressor over-temp protection
Short circuit and ground protection
Over-current protection
Compressor delay start protection
Recommended for rotary evaporators Ai 2L SolventVap rotary evaporators
Warranty One year
IMPORTANT! -15C/5F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
Features
ETL tested to UL and CSA standards
No dry ice or liquid nitrogen needed
360 degree rotating chilling fluid connectors
ANSI standard all stainless steel reservoir
All steel construction for durability
Small footprint saves valuable lab space
Cost saving as the water consumption is completely eliminated
Eco-friendly R404A refrigerant
Insulated tubing included
Recommended for 2L rotary evaporators
Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.
Specifications
Model C15-3-2L
Temperature range Ambient to -15°C (No load)
Electrical requirements
110V 60Hz 1-PH, 500 watts
Compressor Make: Embraco (Brazil)
Power: 115V 60Hz 1 HP
Number of compressor: one
Refrigerant: R404A (Eco-friendly)
Cooling capacity @0°C: 400W
Recirculating pump
Make: Shanghai XinXiShan MP-20R (China)
Type: Centrifugal
Output: 15 watts
Power: 110V 50/60Hz 310mA 2650-3100 rpm
Pumping speed: 17 L/min or 4.5 gallon/min
Maximum head: 6.6 feet or 2 meter
Maximum pressure: 2.9 psi
Reservoir
Dimensions: 5 x 11 x 5" (WxDxH)
Material: Type 304 stainless steel, polished
Chilling fluid connection: 3/8" hose barb x 2
Capacity: 3 liters or 0.8 gallons
Temperature controller
Type: Digital microprocessor PID controlled
Display unit: Celsius °C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to -15°C
Temperature sensor type
Pt100
Housing Powder coated type 42 stainless steel
Recommended coolant
For 50°F/10°C or higher:
distilled water
Between 50°F/10°C and 5°F/-15°C:
50% ethylene glycol + 50% distilled water
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters No
Unit/shipping dimensions
16 x 9 x 22" / 24 x 14 x 30" (WxDxH)
Unit/shipping weight
60 Lbs / 105 Lbs
Safety Compressor over-temp protection
Short circuit and ground protection
Over-current protection
Compressor delay start protection
Recommended for rotary evaporators Ai 2L SolventVap rotary evaporators
Warranty One year
Additional Information
| Brand | Across International |
|---|---|
| UNSPSC | 41103007 |
