Quick Overview

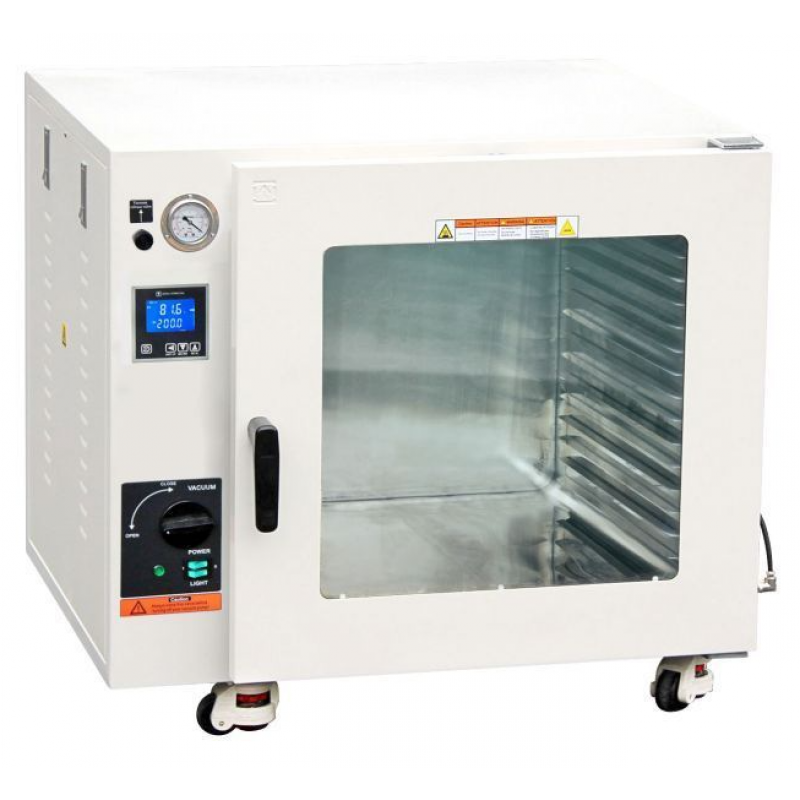

Introducing the new Ai 14-shelf capacity 5.0 cu ft ECO vacuum ovens with LED lights. Every one of these vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving the warehouses.
Manufactured in accordance with
ISO 9001:2000
ISO 12100-1:2003, ISO 12100-2:2003
EN1050:1996, EN294:1992, EN60204-1:2006
CE
Manufactured in accordance with
ISO 9001:2000
ISO 12100-1:2003, ISO 12100-2:2003
EN1050:1996, EN294:1992, EN60204-1:2006
CE
Details
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Features
Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
3rd gen low proportional gain temperature controllers keep your oven temperature within +/- 1F accuracy, in either F or C.
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
Dual layer observation window with 3/4"" tempered safety glass.
3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
Built-in swivel casters with leveling feet.
For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
All ovens shipped from our New Jersey or Nevada location for quick delivery.
2-year warranty and lifetime US-based parts and service support.
Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Specifications
Electrical requirements
110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts
Chamber
Size: 19.75 x 21.5 x 19.75""
Material: Stainless steel
Capacity: 5.0 cubic feet
Heater
3-sided heating (left 800W, right 800W, bottom 1,400W)
Temperature control
Controller: low proportional gain, microcomputer PID controlled
Range: ambient to 150°
Display units: Fahrenheit or Celsius
Uniformity: +/- 7% of setpoint
Dwelling timer range: 1 to 9999 minutes
Vacuum
Ultimate vacuum level: better than 500 microns/millitorrs
Mechanical gauge range: 0 to 30 inch mercury
Vacuum port: KF25 flange x 1
Vent port: KF25 flange x 1
Vacuum pump: Sold separately
Weight
Unit: 390 Lbs, shipping: 600 Lbs
Dimensions (WxDxH)
Unit: 32.25 x 28 x 30""
Shipping: 38 x 37 x 38""
Shelves
Shelf size: 19.25 x 21 x 0.5"" (WxDxH)
Material: aluminum
Style: pan-shape
Capacity: 14 shelves max.
Comes standard with oven purchase: 7 shelves
Total area with 14 shelves: 39.3 sq ft or 5660 sq inch
Distance between the most adjacent shelves: 1.25""
Max. load capacity per shelf: 20 Lbs
Door gasket material
Silicone or Viton
Observation window
1/2" tempered safety glass
Safety
Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial
In-door lights
White LED
Warranty
1 year"
Features
Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
3rd gen low proportional gain temperature controllers keep your oven temperature within +/- 1F accuracy, in either F or C.
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
Dual layer observation window with 3/4"" tempered safety glass.
3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
Built-in swivel casters with leveling feet.
For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
All ovens shipped from our New Jersey or Nevada location for quick delivery.
2-year warranty and lifetime US-based parts and service support.
Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Specifications
Electrical requirements
110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts
Chamber
Size: 19.75 x 21.5 x 19.75""
Material: Stainless steel
Capacity: 5.0 cubic feet
Heater
3-sided heating (left 800W, right 800W, bottom 1,400W)
Temperature control
Controller: low proportional gain, microcomputer PID controlled
Range: ambient to 150°
Display units: Fahrenheit or Celsius
Uniformity: +/- 7% of setpoint
Dwelling timer range: 1 to 9999 minutes
Vacuum
Ultimate vacuum level: better than 500 microns/millitorrs
Mechanical gauge range: 0 to 30 inch mercury
Vacuum port: KF25 flange x 1
Vent port: KF25 flange x 1
Vacuum pump: Sold separately
Weight
Unit: 390 Lbs, shipping: 600 Lbs
Dimensions (WxDxH)
Unit: 32.25 x 28 x 30""
Shipping: 38 x 37 x 38""
Shelves
Shelf size: 19.25 x 21 x 0.5"" (WxDxH)
Material: aluminum
Style: pan-shape
Capacity: 14 shelves max.
Comes standard with oven purchase: 7 shelves
Total area with 14 shelves: 39.3 sq ft or 5660 sq inch
Distance between the most adjacent shelves: 1.25""
Max. load capacity per shelf: 20 Lbs
Door gasket material
Silicone or Viton
Observation window
1/2" tempered safety glass
Safety
Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial
In-door lights
White LED
Warranty
1 year"
Additional Information
| Brand | Across International |
|---|---|
| UNSPSC | 41104509 |
| Certificate | CE |
| Heating Time | No |
| Oven Type | Convection Oven |
| Temperature Uniformity | No |
| Heat Range | ambient to 150°C |
| Temperature Accuracy | 0.1 °C |
| Shelves | 14 |
| Weight | 390 lbs |
| Exterior Dimensions | 32.25 x 28 x 30 in |
| Power | 110 V |
| Volume | 5 cu.ft |
| Interior Dimensions | 19.75 x 21.5 x 19.75 in |
| Capacity | No |
| Display | digital |
| Control Type | digital |
