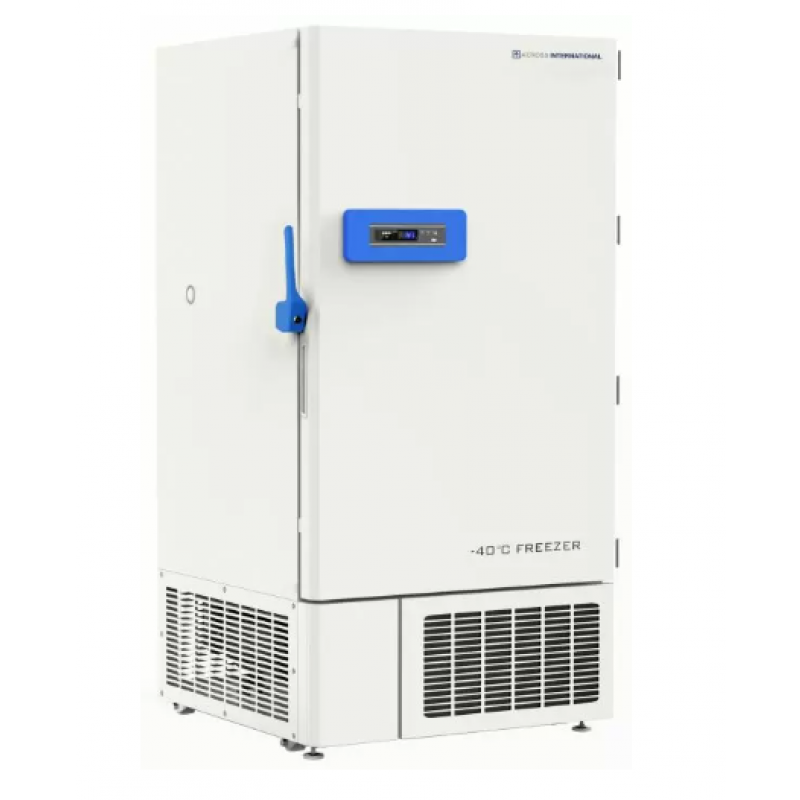

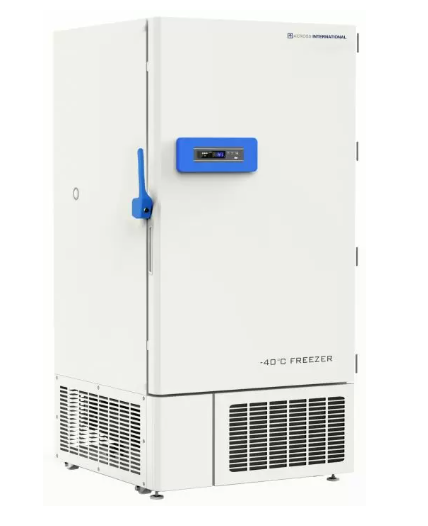

AI DeepFreeze 27 Cu Ft -40°C Upright Medical Freezer 110V, D27.110

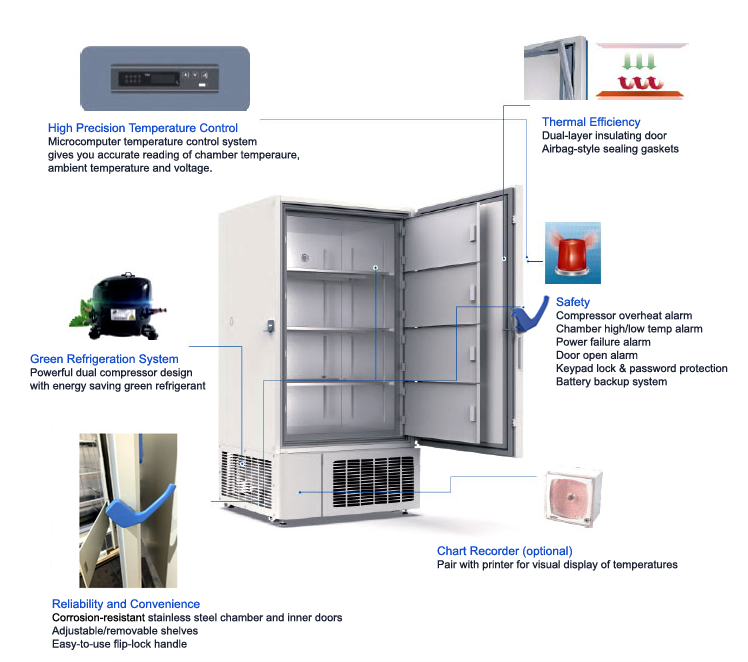

Features

• Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum


• All stainless steel interior for clean operation, durability, and ease of maintenance

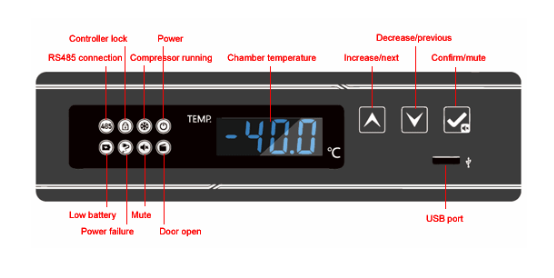

• Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit


• Stainless steel interior for clean operation, durability, and ease of maintenance

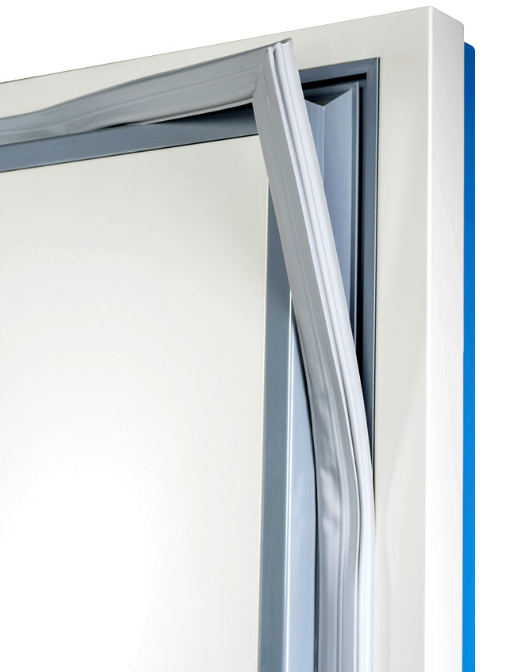

• Dual silicon sealing gaskets for ultra airtight operation


• 72-hour battery backup for controller


• Built-in remote alarm and RS-485 port

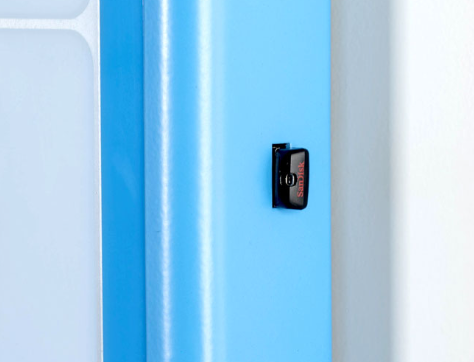

• USB interface for data export and storage


• Extremely quiet and reliable


• Environmentally friendly refrigerant


• Use only RoSH compliant non-toxic components and materials


• Built-in swivel casters with adjustable support that will secure the unit on uneven floor

Specifications

Electrical requirements
110V (±10%) 60Hz 1-Phase, 1,320W 12A
Performance
Temperature range: -20°C to -40°C
Time to reach -40°C: 4 hours
Compressor
Make: SECOP
Number of compressor: two
Style: parallel
Refrigerant: R507
Chamber
Dimensions: 34 x 27.5 x 51" (WxDxH)
Material: 304 stainless steel
Capacity: 27.1 Cu Ft

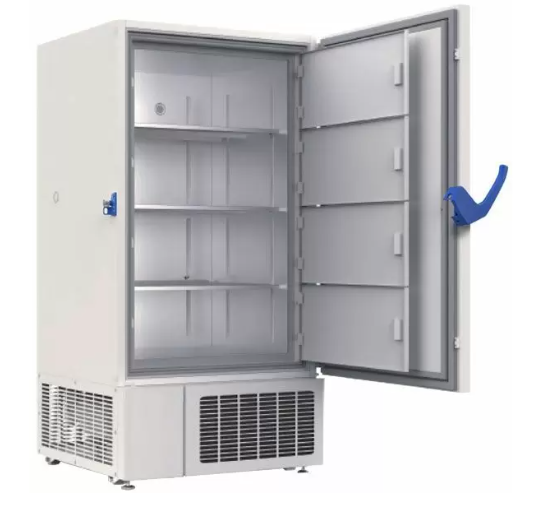

Shelf
Come with unit: three adjustable shelves (4 compartments)
Material: 304 stainless steel
Capacity: 110 Lbs on three shelves, evenly distributed
450 Lbs on the base of the chamber, evenly distributed
Dimensions: 33 x 26 inches (compatible with G27)
Additional shelf unit price: $150
Door and gasket
Inner door: four, each with one sealing gasket

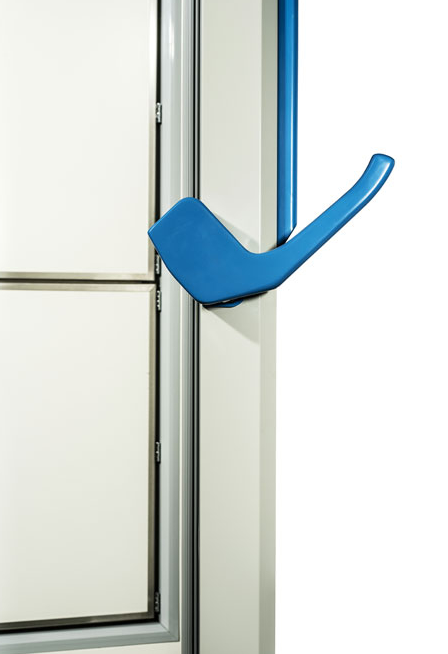

External door: one with dual sealing gasket, lock-able
Working environment
- Temperature: 16°C to 32°C
- Humidity: <80% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
Battery backup system
72 hours (for controller display and alarms only)
Access port
Two, one on the side and one in the back, one inch diameter
Communication
Remote alarm 4-20mA transmitter, USB, RS-485
Built-in swivel casters
Four, with two leveling feet
Noise level
52 dBA
Unit/shipping weight & dimensions
635 Lbs / 866 Lbs
47.5 x 41.5 x 77.5" / 51 x 46 x 85" (WxDxH)
Safety
Compressor over-temp protection
Compressor power surge delay protection
Power failure protection
Low battery, door open, filter clogging, system failure alarms
External door with lock
Warranty
One year
