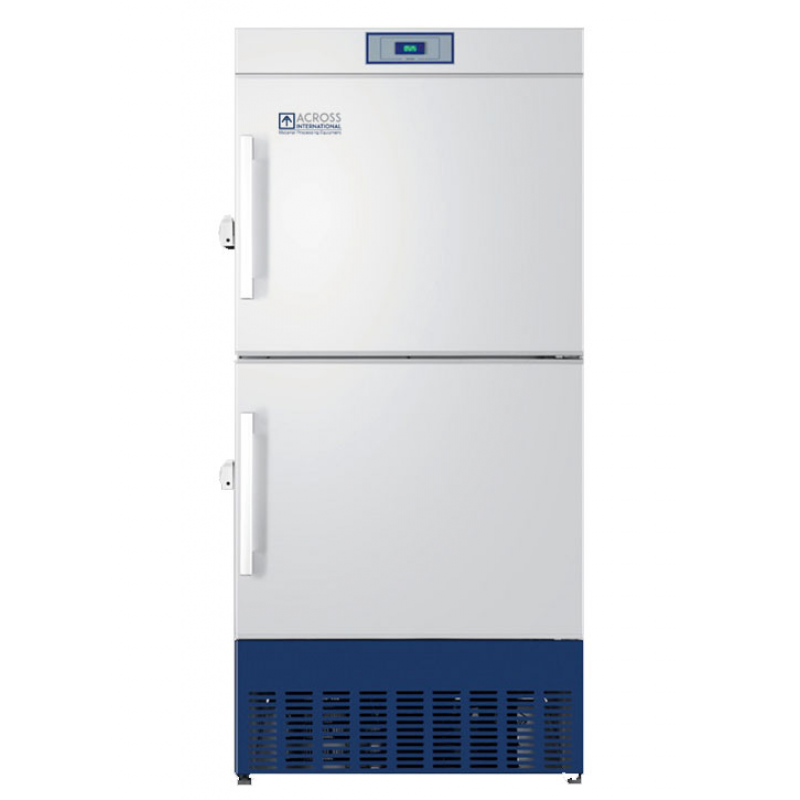

Quick Overview
The new Ai EasyChill series -30C 18 Cu Ft upright freezers is great for large storage of sample and products. Our unique compressor design with HC refrigerant offers you speedy cooling, great temperature uniformity inside the chamber, energy efficiency, and very quite operation.
Details
The E18 is UL certified and is great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum.
Important!
Specifications
Electrical requirements
115V (±10%) 60Hz 1-Phase, 600W, 6.5A
Performance
Temperature range: -10°C to -30°C
Time from ambient to -30°C: 3 hours
Temperature uniformity: ±4°C
Time from -30°C to -10°C with door closed (ambient 25°C): 5 hours
Controller
Microprocessor-controlled, LED display
Compressor
Power: 110V 60Hz 1-PHASE
Cooling type: direct cooling
Defrost mode: manual
Refrigerant: CFC-free, HC refrigerant
Chamber
Dimensions: 27 x 24 x 48.3" (WxDxH)
Material: coated steel
Volume: 17.9 Cu Ft
Number of chambers: two
Door and gasket
Two lockable door, with dual sealing gaskets
Working environment
- Temperature: 10°C to 32°C (ideal temperature: 18°C to 25°C)
- Humidity: <85% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
Storage bin
Ten, plastic
Battery backup system
48 hours (for controller display and alarms only)
Access port
One, on the left of the freezer
Noise level
43 dBA
Unit/shipping weight & dimensions
360 Lbs / 440 Lbs
36 x 32 x 73" / 38 x 25.5 x 80.5" (WxDxH)
Safety
Compressor over-temp protection
Compressor power surge delay protection
External door with lock
Sensor error, low battery, chamber high/low temperature, and remote alarms
Compliance
UL 61010-1
CSA C22.2
Warranty
One year
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
Specifications
Electrical requirements
115V (±10%) 60Hz 1-Phase, 600W, 6.5A
Performance
Temperature range: -10°C to -30°C
Time from ambient to -30°C: 3 hours
Temperature uniformity: ±4°C
Time from -30°C to -10°C with door closed (ambient 25°C): 5 hours
Controller
Microprocessor-controlled, LED display
Compressor
Power: 110V 60Hz 1-PHASE
Cooling type: direct cooling
Defrost mode: manual
Refrigerant: CFC-free, HC refrigerant
Chamber
Dimensions: 27 x 24 x 48.3" (WxDxH)
Material: coated steel
Volume: 17.9 Cu Ft
Number of chambers: two
Door and gasket
Two lockable door, with dual sealing gaskets
Working environment
- Temperature: 10°C to 32°C (ideal temperature: 18°C to 25°C)
- Humidity: <85% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
Storage bin
Ten, plastic
Battery backup system
48 hours (for controller display and alarms only)
Access port
One, on the left of the freezer
Noise level
43 dBA
Unit/shipping weight & dimensions
360 Lbs / 440 Lbs
36 x 32 x 73" / 38 x 25.5 x 80.5" (WxDxH)
Safety
Compressor over-temp protection
Compressor power surge delay protection
External door with lock
Sensor error, low battery, chamber high/low temperature, and remote alarms
Compliance
UL 61010-1
CSA C22.2
Warranty
One year
Additional Information
| Brand | Across International |
|---|---|
| UNSPSC | 41103005 |
