Quick Overview

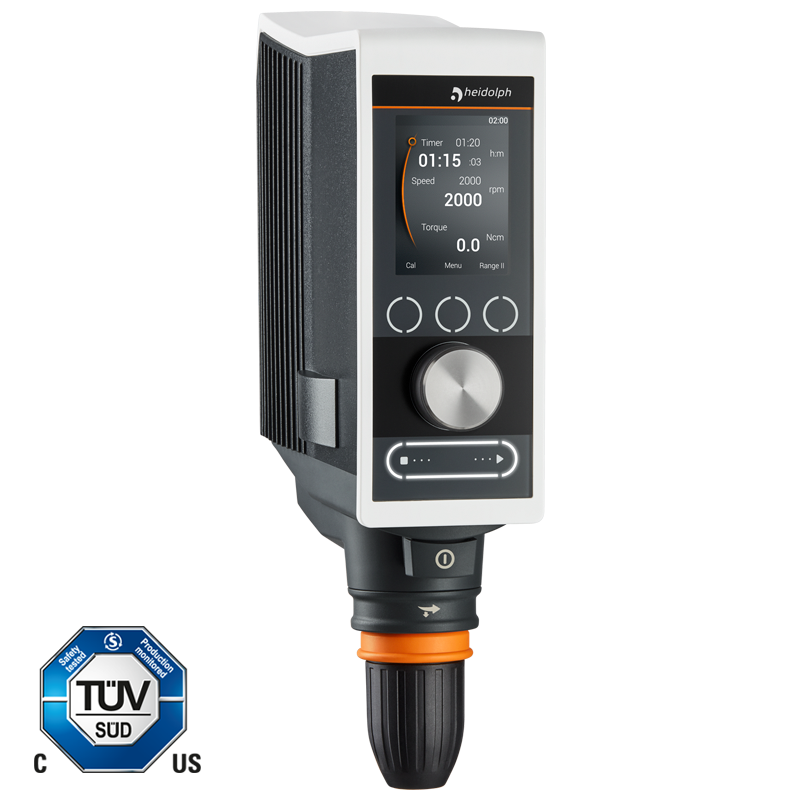

Hei-TORQUE Ultimate 400 Overhead Stirrer
The devices of the Hei-TORQUE Ultimate line are Heidolph high performance overhead stirrers.
In addition, the Hei-TORQUE Ultimate 400 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.
The overhead stirrer Hei-TORQUE Ultimate 400 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.
Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Ultimate 400 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.
• Constant speed even under changing loads
• Safe start and stop of operation via slide touch panel to avoid unintended stirring
• Noise level: below 50 db
• Sealed housing with high protection class IP 54
• Overtemperature sensor prevents heat up situations
• Sealed panel made of glass and magnetic smart knob
• Unique quick chuck for ease of changing impellers
• Accurate torque indication shows any viscosity changes
• Digital 3.2 in. display for ease of operation:
• Allows for pre-programmed profiles and saves in memory
• Interval operation
• Watch rpm and torque graph life
• Timer / Countdown / Real time settings
• USB and RS 232 interface to save all process data in digital file
• Ideal for demanding tasks which must be reproducible and documentable
• Additional features and operation modes allows for perfect adjustment for individual application
• Including free Hei-Control software for dependable automation of all processes. Control up to four devices simultaneously.
• Wide speed range (10 - 2,000 rpm)
• Maximum torque of 400 Ncm
• Can optimally stir viscosities up to 250,000 mPas or volumes up to 100 liters (H2O)
The devices of the Hei-TORQUE Ultimate line are Heidolph high performance overhead stirrers.
In addition, the Hei-TORQUE Ultimate 400 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.
The overhead stirrer Hei-TORQUE Ultimate 400 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.
Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Ultimate 400 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.
• Constant speed even under changing loads
• Safe start and stop of operation via slide touch panel to avoid unintended stirring
• Noise level: below 50 db
• Sealed housing with high protection class IP 54
• Overtemperature sensor prevents heat up situations
• Sealed panel made of glass and magnetic smart knob
• Unique quick chuck for ease of changing impellers
• Accurate torque indication shows any viscosity changes
• Digital 3.2 in. display for ease of operation:
• Allows for pre-programmed profiles and saves in memory
• Interval operation
• Watch rpm and torque graph life
• Timer / Countdown / Real time settings
• USB and RS 232 interface to save all process data in digital file
• Ideal for demanding tasks which must be reproducible and documentable
• Additional features and operation modes allows for perfect adjustment for individual application
• Including free Hei-Control software for dependable automation of all processes. Control up to four devices simultaneously.
• Wide speed range (10 - 2,000 rpm)
• Maximum torque of 400 Ncm
• Can optimally stir viscosities up to 250,000 mPas or volumes up to 100 liters (H2O)
Details
Hei-TORQUE Ultimate 400 Overhead Stirrer
The devices of the Hei-TORQUE Ultimate line are Heidolph high performance overhead stirrers.
In addition, the Hei-TORQUE Ultimate 400 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.
The overhead stirrer Hei-TORQUE Ultimate 400 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.
Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Ultimate 400 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.
Constant speed even under changing loads Safe start and stop of operation via slide touch panel to avoid unintended stirring Noise level: below 50 db Sealed housing with high protection class IP 54 Overtemperature sensor prevents heat up situations Sealed panel made of glass and magnetic smart knob Unique quick chuck for ease of changing impellers Accurate torque indication shows any viscosity changes Digital 3.2 in. display for ease of operation: Allows for pre-programmed profiles and saves in memory Interval operation Watch rpm and torque graph life Timer / Countdown / Real time settings USB and RS 232 interface to save all process data in digital file Ideal for demanding tasks which must be reproducible and documentable Additional features and operation modes allows for perfect adjustment for individual application Including free Hei-Control software for dependable automation of all processes. Control up to four devices simultaneously. Wide speed range (10 - 2,000 rpm) Maximum torque of 400 Ncm Can optimally stir viscosities up to 250,000 mPas or volumes up to 100 liters (H2O)
The devices of the Hei-TORQUE Ultimate line are Heidolph high performance overhead stirrers.
In addition, the Hei-TORQUE Ultimate 400 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.
The overhead stirrer Hei-TORQUE Ultimate 400 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.
Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Ultimate 400 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.
Constant speed even under changing loads Safe start and stop of operation via slide touch panel to avoid unintended stirring Noise level: below 50 db Sealed housing with high protection class IP 54 Overtemperature sensor prevents heat up situations Sealed panel made of glass and magnetic smart knob Unique quick chuck for ease of changing impellers Accurate torque indication shows any viscosity changes Digital 3.2 in. display for ease of operation: Allows for pre-programmed profiles and saves in memory Interval operation Watch rpm and torque graph life Timer / Countdown / Real time settings USB and RS 232 interface to save all process data in digital file Ideal for demanding tasks which must be reproducible and documentable Additional features and operation modes allows for perfect adjustment for individual application Including free Hei-Control software for dependable automation of all processes. Control up to four devices simultaneously. Wide speed range (10 - 2,000 rpm) Maximum torque of 400 Ncm Can optimally stir viscosities up to 250,000 mPas or volumes up to 100 liters (H2O)
Additional Information
| Brand | Heidolph North America |
|---|---|
| UNSPSC | 41103810 |
