Quick Overview

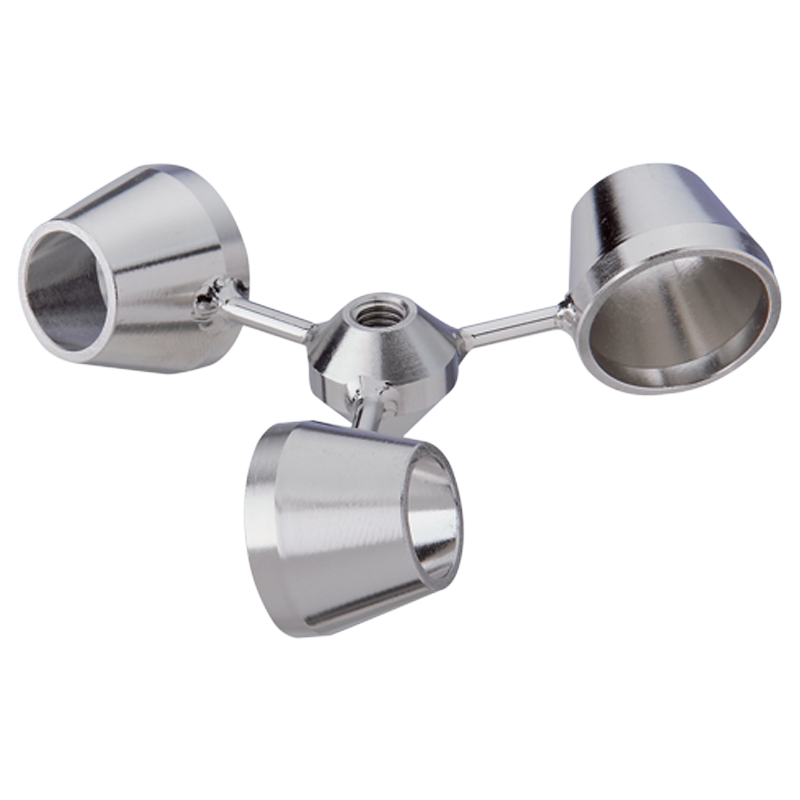

Overhead Stirrer Visco Jet Impeller inoJET-120mm (Stainless Steel)
Particularly in the case of applications with very viscous media such as pastes and gels, a very reliable stirring process in the entire vessel without air entry is important. This is what the innovative stirring system VISCO JET® offers!
The particular shape of the blades triggers an intrinsically dynamic flow, which shortens the process times with significantly better mixing results compared to conventional impellers. An all-rounder for aqueous and highly viscous substances. You can find out more about this here.
The VISCO JET® 120 is ideal for vessels with the following characteristics:
ideal vessel diameter: 200- 300 mm
ideal ground clearance: 36 mm
ideal filling level: 200- 300 mm
ideal volume: 6,300 - 21,200 ml
A stirrer shaft with a diameter of 10 mm is included in the scope of delivery.
• The turbulent flow which is created by a special cone principle even at low speeds is unique to the Visco Jet Impeller
• For all mixing tasks with low to high viscosity media and gels
• Capable of completely mixing larger quantities of high-viscosity liquids and gels
• Fields of use include beverage production, dairy products, food, sugar & candy production, chemistry/petro chemistry, ceramics, water treatment, cosmetics, colorant/paint production and paper manufacturing
• Ø 120mm
• Material – Stainless Steel
• Length – 500mm
• Shaft diameter – 10mm
• Speed range – 120-500 rpm
• For vessel diameter 170-300mm
Particularly in the case of applications with very viscous media such as pastes and gels, a very reliable stirring process in the entire vessel without air entry is important. This is what the innovative stirring system VISCO JET® offers!
The particular shape of the blades triggers an intrinsically dynamic flow, which shortens the process times with significantly better mixing results compared to conventional impellers. An all-rounder for aqueous and highly viscous substances. You can find out more about this here.
The VISCO JET® 120 is ideal for vessels with the following characteristics:
ideal vessel diameter: 200- 300 mm
ideal ground clearance: 36 mm
ideal filling level: 200- 300 mm
ideal volume: 6,300 - 21,200 ml
A stirrer shaft with a diameter of 10 mm is included in the scope of delivery.
• The turbulent flow which is created by a special cone principle even at low speeds is unique to the Visco Jet Impeller
• For all mixing tasks with low to high viscosity media and gels
• Capable of completely mixing larger quantities of high-viscosity liquids and gels
• Fields of use include beverage production, dairy products, food, sugar & candy production, chemistry/petro chemistry, ceramics, water treatment, cosmetics, colorant/paint production and paper manufacturing
• Ø 120mm
• Material – Stainless Steel
• Length – 500mm
• Shaft diameter – 10mm
• Speed range – 120-500 rpm
• For vessel diameter 170-300mm
Details
Overhead Stirrer Visco Jet Impeller inoJET-120mm (Stainless Steel)
Particularly in the case of applications with very viscous media such as pastes and gels, a very reliable stirring process in the entire vessel without air entry is important. This is what the innovative stirring system VISCO JET® offers!
The particular shape of the blades triggers an intrinsically dynamic flow, which shortens the process times with significantly better mixing results compared to conventional impellers. An all-rounder for aqueous and highly viscous substances. You can find out more about this here.
The VISCO JET® 120 is ideal for vessels with the following characteristics:
ideal vessel diameter: 200- 300 mm ideal ground clearance: 36 mm ideal filling level: 200- 300 mm ideal volume: 6,300 - 21,200 ml
A stirrer shaft with a diameter of 10 mm is included in the scope of delivery.
The turbulent flow which is created by a special cone principle even at low speeds is unique to the Visco Jet Impeller For all mixing tasks with low to high viscosity media and gels Capable of completely mixing larger quantities of high-viscosity liquids and gels Fields of use include beverage production, dairy products, food, sugar & candy production, chemistry/petro chemistry, ceramics, water treatment, cosmetics, colorant/paint production and paper manufacturing Ø 120mm Material – Stainless Steel Length – 500mm Shaft diameter – 10mm Speed range – 120-500 rpm For vessel diameter 170-300mm
Particularly in the case of applications with very viscous media such as pastes and gels, a very reliable stirring process in the entire vessel without air entry is important. This is what the innovative stirring system VISCO JET® offers!
The particular shape of the blades triggers an intrinsically dynamic flow, which shortens the process times with significantly better mixing results compared to conventional impellers. An all-rounder for aqueous and highly viscous substances. You can find out more about this here.
The VISCO JET® 120 is ideal for vessels with the following characteristics:
ideal vessel diameter: 200- 300 mm ideal ground clearance: 36 mm ideal filling level: 200- 300 mm ideal volume: 6,300 - 21,200 ml
A stirrer shaft with a diameter of 10 mm is included in the scope of delivery.
The turbulent flow which is created by a special cone principle even at low speeds is unique to the Visco Jet Impeller For all mixing tasks with low to high viscosity media and gels Capable of completely mixing larger quantities of high-viscosity liquids and gels Fields of use include beverage production, dairy products, food, sugar & candy production, chemistry/petro chemistry, ceramics, water treatment, cosmetics, colorant/paint production and paper manufacturing Ø 120mm Material – Stainless Steel Length – 500mm Shaft diameter – 10mm Speed range – 120-500 rpm For vessel diameter 170-300mm
Additional Information
| Brand | Heidolph North America |
|---|---|
| UNSPSC | 41103810 |
