Quick Overview
Maximum Capacity: 50 lb (25 kg)
Readability: 0.002 lb (1 g)
Readability (Certified): 0.01 lb (5 g)
Platform Size: 12 in x 12 in (305 mm x 305 mm)
Readability: 0.002 lb (1 g)
Readability (Certified): 0.01 lb (5 g)
Platform Size: 12 in x 12 in (305 mm x 305 mm)
Details

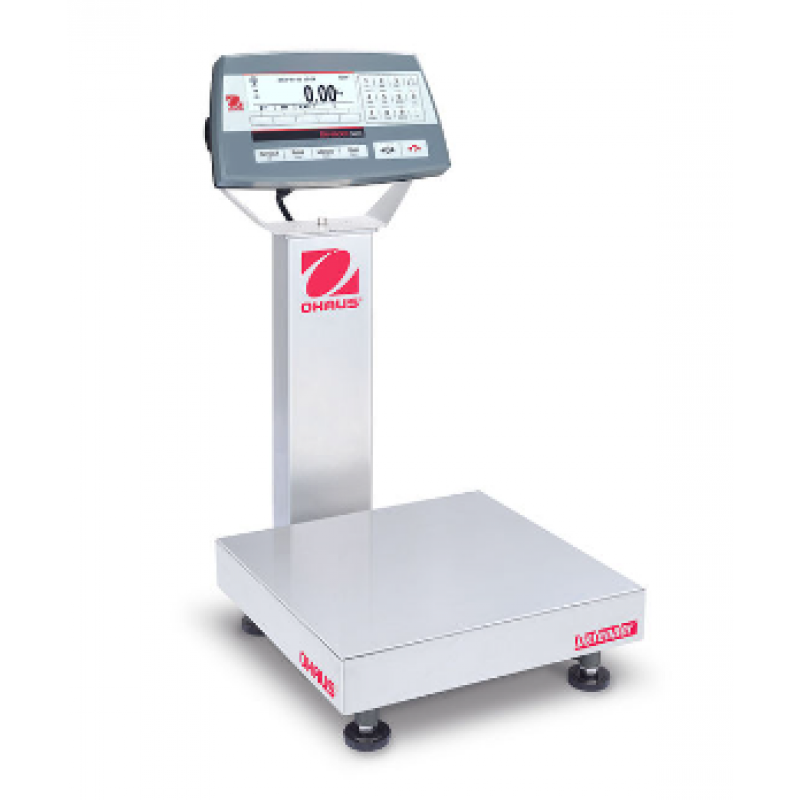

The Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.
Specifications
Maximum Capacity: 50 lb (25 kg)
Readability: 0.002 lb (1 g)
Readability (Certified): 0.01 lb (5 g)
Platform Size: 12 in x 12 in (305 mm x 305 mm)
Power: Rechargeable Battery (Not Included); AC Power (Included)
Battery Life: 20 Hours with Rechargeable Battery
Communication: Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions: 17.4 in x 22.6 in x 12 in (442 mm x 574 mm x 305 mm) (LxHxW)
Display: Dot matrix LCD with white LED backlight
Net Weight: 22 lb (10 kg)
Outputs: 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction: Stainless Steel
Protection Rating: Not Applicable
Second Scale Input: Not Applicable
Tare Range: To capacity by subtraction
Units of Measurement: Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound: Ounce
Working Environment: 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
ABS plastic (TD52P) or stainless steel (TD52XW) indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet
Design Features
User-configurable resolution up to dual range 15,000d/3,000e (25000d/5000d for NTEP), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare
Specifications
Maximum Capacity: 50 lb (25 kg)
Readability: 0.002 lb (1 g)
Readability (Certified): 0.01 lb (5 g)
Platform Size: 12 in x 12 in (305 mm x 305 mm)
Power: Rechargeable Battery (Not Included); AC Power (Included)
Battery Life: 20 Hours with Rechargeable Battery
Communication: Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions: 17.4 in x 22.6 in x 12 in (442 mm x 574 mm x 305 mm) (LxHxW)
Display: Dot matrix LCD with white LED backlight
Net Weight: 22 lb (10 kg)
Outputs: 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction: Stainless Steel
Protection Rating: Not Applicable
Second Scale Input: Not Applicable
Tare Range: To capacity by subtraction
Units of Measurement: Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound: Ounce
Working Environment: 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
ABS plastic (TD52P) or stainless steel (TD52XW) indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet
Design Features
User-configurable resolution up to dual range 15,000d/3,000e (25000d/5000d for NTEP), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare
Additional Information
| Brand | Ohaus |
|---|---|
| UNSPSC | 41111507 |
