Quick Overview

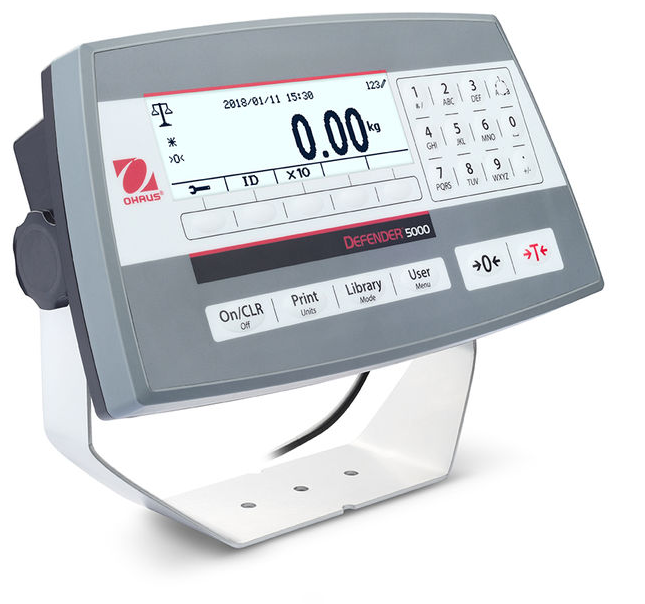

Multifunctional Indicator for Standard Industrial Applications
See results clearly on the large backlit display. The alphanumeric keypad & function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including RS232/RS485/USB device, Ethernet & Bluetooth/WiFi. Analog Output & Discrete I/O with relays.
Features common industrial modes & supports a 50,000 item library & 1,000 user profiles which can be downloaded/uploaded for easy set-up (with SD Card). GMP/GLP with time/date for result traceability.
See results clearly on the large backlit display. The alphanumeric keypad & function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including RS232/RS485/USB device, Ethernet & Bluetooth/WiFi. Analog Output & Discrete I/O with relays.
Features common industrial modes & supports a 50,000 item library & 1,000 user profiles which can be downloaded/uploaded for easy set-up (with SD Card). GMP/GLP with time/date for result traceability.
Details
SPECIFICATIONS
Resolution: 75,000
Resolution (Certified): 10,000
Battery Life: 20 Hours with Rechargeable Battery
Outputs: 4 - 20mA; 2 In/4 Out digital I/O
Second Scale Input: Not applicable
Protection Rating: Not applicable
Communication: Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions: 10.4 in x 7.6 in x 3 in (265 mm x 192 mm x 75 mm) (LxHxW)
Display: Dot matrix LCD with white LED backlight
Legal for Trade: NTEP Certified; Measurement Canada Approved
Net Weight: 3 lb (1.5 kg)
Power: Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating: Not applicable
Tare Range: To capacity by subtraction
Units of Measurement: Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment: 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Resolution: 75,000
Resolution (Certified): 10,000
Battery Life: 20 Hours with Rechargeable Battery
Outputs: 4 - 20mA; 2 In/4 Out digital I/O
Second Scale Input: Not applicable
Protection Rating: Not applicable
Communication: Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions: 10.4 in x 7.6 in x 3 in (265 mm x 192 mm x 75 mm) (LxHxW)
Display: Dot matrix LCD with white LED backlight
Legal for Trade: NTEP Certified; Measurement Canada Approved
Net Weight: 3 lb (1.5 kg)
Power: Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating: Not applicable
Tare Range: To capacity by subtraction
Units of Measurement: Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment: 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Additional Information
| Brand | Ohaus |
|---|---|
| UNSPSC | 41111524 |
