Quick Overview
Recovery time after 30 seconds door open at 37 °C [min]: 15
Temperature fluctuation at 37 °C [± K]: 0.3
Temperature range +5 °C above ambient temperature to [°C]: 70
Temperature variation at 37 °C [± K]: 0.5
Details
Benefits
Easy handling
Accurate temperature control
Simple and ergonomic door opening
Important characteristics
Temperature range: ambient temperature +5 °C to 70 °C
APT.line™ preheating chamber technology
Gravity convection
Adjustable exhaust air flap
Controller with timer function
Inner door made of tempered safety glass
1 chrome-plated rack, incl. shelf supports
Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
Technical specifications
Performance Data Temperature:
Recovery time after 30 seconds door open at 37 °C [min]: 15
Temperature fluctuation at 37 °C [± K]: 0.3
Temperature range +5 °C above ambient temperature to [°C]: 70
Temperature variation at 37 °C [± K]: 0.5
Electrical data
Nominal power [kW]: 0.3
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 12.5
Doors
Inner doors: 1
Unit doors: 1

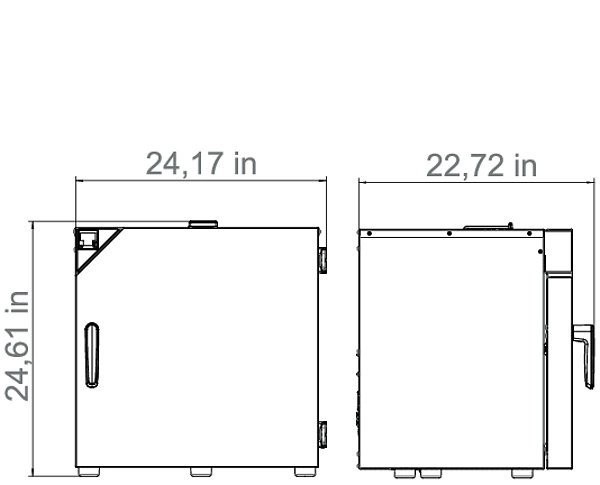

Housing dimensions not incl. fittings and connections
Depth net [in]: 22.73
Height net [in]: 24.63
Width net [in]: 24.19
Internal Dimensions
Depth [in]: 13.79
Height [in]: 17.34
Width [in]: 15.76
Measures
Interior volume [cu.ft.]: 2.2
Load per rack [lbs]: 33
Net weight of the unit (empty) [lbs]: 77
Permitted load [lbs]: 99
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94
Environment-specific data
Energy consumption at 37 °C [Wh/h]: 25
Fixtures
Number of shelves (std./max.): 1/3
