Quick Overview
Recovery time after 30 seconds door open at 37 °C [min]: 15
Temperature fluctuation at 37 °C [± K]: 0.3
Temperature range +5 °C above ambient temperature to [°C]: 70
Temperature variation at 37 °C [± K]: 0.5
Details
Benefits
Safe and reproducible incubation even under high batch throughputs in long-term operation
Disinfection routine at 100 °C
Stable atmosphere by inner glass door
Important characteristics
Temperature range: room temperature plus 5 °C to 100 °C
APT.line™ preheating chamber technology
gravity convection
Adjustable exhaust air flap
Controller with timer functions
Inner door made of tempered safety glass
2 chrome-plated racks
Stackable
Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm
Computer interface: RS 422
Technical specifications
Performance Data Temperature:
Recovery time after 30 seconds door open at 37 °C [min]: 15
Temperature fluctuation at 37 °C [± K]: 0.3
Temperature range +5 °C above ambient temperature to [°C]: 70
Temperature variation at 37 °C [± K]: 0.5
Electrical data
Nominal power [kW]: 0.35
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 6.3
Doors
Inner doors: 1
Unit doors: 1

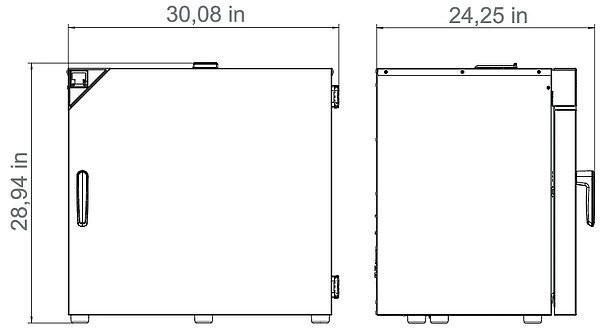

Housing dimensions not incl. fittings and connections
Depth net [in]: 24.27
Height net [in]: 28.96
Width net [in]: 30.1
Internal Dimensions
Depth [in]: 15.37
Height [in]: 21.67
Width [in]: 21.67
Measures
Interior volume [cu.ft.]: 4.2
Load per rack [lbs]: 44
Net weight of the unit (empty) [lbs]: 104
Permitted load [lbs]: 165
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94
Environment-specific data
Energy consumption at 37 °C [Wh/h]: 25
Fixtures
Number of shelves (std./max.): 1/5
