Quick Overview
A BINDER FD series Avantgarde.Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Details
Benefits
Best energy efficiency on the market
Excellent temporal and spatial temperature accuracy
USB connection for recording data
Temperature range up to +300 °C
Important characteristics
Temperature range: +10 °C above ambient temperature to +300 °C
High temperature accuracy thanks to APT.line™ technology
Forced convection
Controller with LCD display
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Units up to 115 L are stackable
Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
Ergonomic handle design
USB port for recording data
Technical specifications
Performance Data Temperature:
Heating-up time to 150 °C [min]: 19
Recovery time after 30 seconds door open at 150 °C [min]: 5
Temperature fluctuation at 150 °C [± K]: 0.4
Temperature range +10 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 1.9
Air change data
Air change (approx.) at 100 °C [x/h]: 9
Electrical data
Nominal power [kW]: 2.5
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 240
Unit fuse [A]: 16
Doors
Unit doors: 1

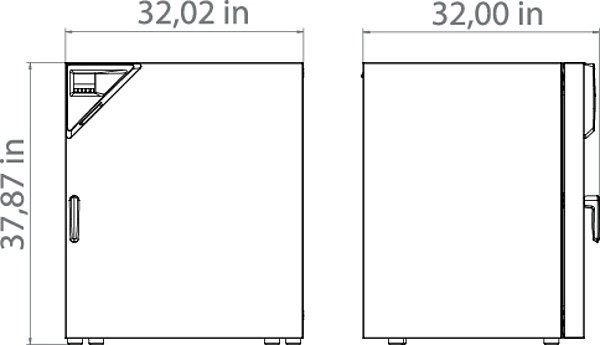

Housing dimensions not incl. fittings and connections
Depth net [in]: 32.5
Height net [in]: 37.04
Width net [in]: 31.91
Internal Dimensions
Depth [in]: 20.29
Height [in]: 30.73
Width [in]: 25.61
Measures
Interior volume [cu.ft.]: 9.1
Load per rack [lbs]: 88
Net weight of the unit (empty) [lbs]: 185
Permitted load [lbs]: 595
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94
Environment-specific data
Energy consumption at 150 °C [Wh/h]: 410
Sound-pressure level [dB(A)]: 43
Fixtures
Number of shelves (std./max.): 2/8
Additional Information
| Brand | BINDER |
|---|---|
| Certificate | CE |
| Heating Time | 19 min at 150 °C |
| Oven Type | Forced Air Oven |
| Temperature Uniformity | 10 °C to +300 °C |
| Heat Range | 19-150 °C |
| Temperature Accuracy | 0.1 °C |
| Shelves | 2/8 |
| Weight | 185 lbs |
| Exterior Dimensions | 32.5 x 37.04 x 31.91 in |
| Power | 240 V |
| Volume | 9.1 cu.ft |
| Interior Dimensions | 20.29 x 30.73 x 25.61 in |
| Capacity | Capacity |
| Display | digital |
| Control Type | Digital |
