Quick Overview

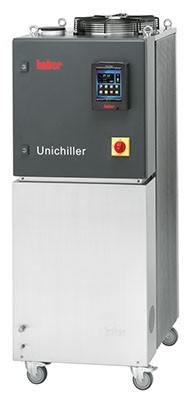

Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling.
Details
Functions
Environmentally-friendly, economic cooling solution
High efficiency
Precise temperature control
Powerful circulation pump
Intelligent energy management
Reliable continuously operation with warning functions
Pilot ONE controller with 5.7" touchscreen
Digital filling level indicator
2 x USB (Host and Device), Ethernet and RS232 interfaces
Heater options available
Technical specifications
General information & temperature controller
Temperature range: -10...40 °C
Temperature stability: ±0.5 °C
Controller: Pilot ONE (E-grade "Basic")
Safety class: I / NFL
Protection class: IP20
Dimensions (W x D x H): 450 x 511 x 1230 mm | 17.72 x 20.12 x 48.43 inches
Weight: -- kg | pounds
Heating / cooling capacity
Cooling capacity:
15: 0: -10: °C
1,7: 0,9: 0,4: kW
Cooling machine: air-cooled
Refrigerant (ASHRAE, GHS): R449A (A1, H280)
Circulation pump
Pressure pump max.: 30 lpm ; 3.8 bar | 7.93 gpm ; 55.1 psi
Pump connection: G3/4 AG male
Connections
Pt100 connection: Pt100
Digital interface: RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.: 5...40 °C
Noise level: 64 dB(A)
Filling volume min.: 2.5 Liters | 0.66 gal
Volume of expansion: 2 Liters | 0.53 gal
Power supply: 208V 2~ 60Hz
Additional Information
| Brand | White Box by Sycamore |
|---|---|
| UNSPSC | 41103007 |
| Power Requirement | 208V 2~ 60Hz |
| Cooling Temperature | No |
| Temperature Stability (±ºC) | ±0.5ºC |
| Temperature Range | -10...40 °C |
