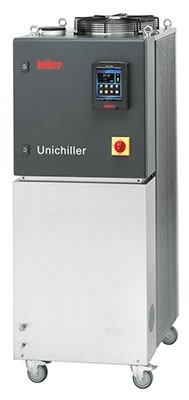

Huber 3024.0059.01 Unichiller 020T with Pilot ONE, 208V 2~ 60Hz

Vendor: #N/A

Mfg Part Number: 3024.0059.01

Be the first to review this product

Quick Overview

Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling.

Price: $24937.50

Ships in 1-3 days if in stock, contact us for current availability

Quick Overview

Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling.

Details

Functions

Environmentally-friendly, economic cooling solution
High efficiency
Precise temperature control
Powerful circulation pump
Intelligent energy management
Reliable continuously operation with warning functions
Pilot ONE controller with 5.7" touchscreen
Digital filling level indicator
2 x USB (Host and Device), Ethernet and RS232 interfaces
Heater options available

General information & temperature controller

Temperature range: -20...40 °C
Temperature stability: ±0.5 °C
Controller: Pilot ONE (E-grade "Basic")
Safety class: I / NFL
Protection class: IP20
Dimensions (W x D x H): 450 x 510 x 1230 mm | 17.72 x 20.08 x 48.43 inches
Weight: 141 kg | 310.91 pounds


Heating / cooling capacity

Cooling capacity:
15: 0: -10: -20: °C
2: 2: 1,5: 0,8: kW
Cooling machine: air-cooled
Refrigerant (ASHRAE, GHS): R449A (A1, H280) (1,2 kg)

Circulation pump

Pressure pump max.: 30 lpm ; 3.8 bar | 7.93 gpm ; 55.1 psi
Pump connection: G3/4 AG male

Connections

Pt100 connection: Pt100
Digital interface: RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.: 5...40 °C
Filling volume min.: 2.5 Liters | 0.66 gal
Volume of expansion: 2 Liters | 0.53 gal
Power supply: 208V 2~ 60Hz
Current max.: 11 A
Fusing: 2x16 A

Additional Information

Brand White Box by Sycamore
UNSPSC 41103007
Power Requirement 208V 2~ 60Hz
Cooling Temperature No
Temperature Stability (±ºC) ±0.5ºC
Temperature Range -20...40 °C
