Quick Overview

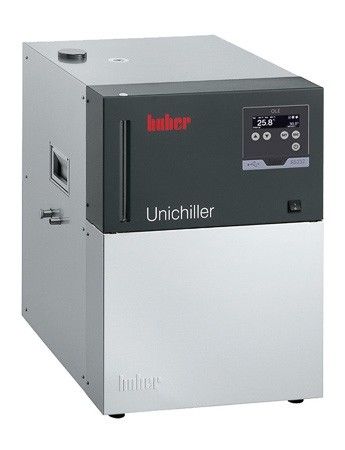

Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling.
Details
Functions
Environmentally-friendly, economic cooling solution
High efficiency
Precise temperature control
Simple operation with menu navigation
Robust stainless construction
Reliable continuously operation with warning functions
Easy to fill and empty
Adjustable bypass, level indicator with sight glass and digital manometer
Bright, large OLED display
USB and RS232 interfaces
Technical specifications
General information & temperature controller
Temperature range: -10...100 °C
Temperature stability: ±0.2 °C
Temperature display: OLED Display
Display resolution: 0.1 °C
Alarm message: optical, acoustical
Controller: OLÉ
Safety class: III / FL
Protection class: IP20
Dimensions (W x D x H): 420 x 487 x 579 mm | 16.54 x 19.17 x 22.8 inches
Weight: -- kg | pounds
Heating / cooling capacity
Heating capacity: 1,6 - 2 kW
Cooling capacity: 15: 0: -10: °C
2,5: 2: 1,2: kW
Cooling machine: water-cooled
Refrigerant (ASHRAE, GHS): R449A (A1, H280)
Circulation pump
Pressure pump max.: 25 lpm ; 2.5 bar | 6.6 gpm ; 36.25 psi
Pump connection: G3/4 AG male
Connections
Digital interface: USB (Device), RS232 interfaces
Operating data
Permissible ambient temp.: 5...40 °C
Noise level: 60 dB(A)
Filling volume min.: 3.8 Liters | 1 gal
Volume of expansion: 1.7 Liters | 0.45 gal
Cooling water connection: G1/2 AG
Cooling water differential pressure min.: 3 bar | 43.5 psi
Cooling water pressure max.: 6 bar | 87 psi
Power supply: 208-230V 1~/2~ 60Hz
Additional Information
| Brand | White Box by Sycamore |
|---|---|
| UNSPSC | 41103007 |
| Power Requirement | 208-230V 1~/2~ 60Hz |
| Cooling Temperature | No |
| Temperature Stability (±ºC) | ±0.2 ºC |
| Temperature Range | -10...100 °C |
