Quick Overview
Recovery time after 30 seconds door open at 37 °C [min]: 4
Temperature fluctuation at 37 °C [± K]: 0.1
Temperature range: -10…100
Temperature range °C: -10…100
Temperature variation at 37 °C [± K]: 0.2
Details
Benefits
Safe, reproducible incubation, even at high ambient temperatures
Disinfection routine at +100 °C
Up to 30% lower energy consumption compared to the previous model
Important characteristics
Temperature range: -10 °C to +100 °C
APT.line™ preheating chamber technology
Up to 30% lower energy consumption compared to the previous model
Refrigeration with compressor refrigerated unit
Adjustable fan speed
Controller with time-segment and real-time programming
Inner door made of tempered safety glass
2 stainless steel racks
Stackable
Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
Computer interface: Ethernet
Technical specifications
Performance Data Temperature:
Recovery time after 30 seconds door open at 37 °C [min]: 4
Temperature fluctuation at 37 °C [± K]: 0.1
Temperature range: -10…100
Temperature range °C: -10…100
Temperature variation at 37 °C [± K]: 0.2
Electrical data
Nominal power [kW]: 1.4
Phase (Nominal voltage): 1~
Power frequency [Hz]: 50/60
Rated Voltage [V]: 100…120
Unit fuse [A]: 16
Doors
Inner doors: 1
Unit doors: 1

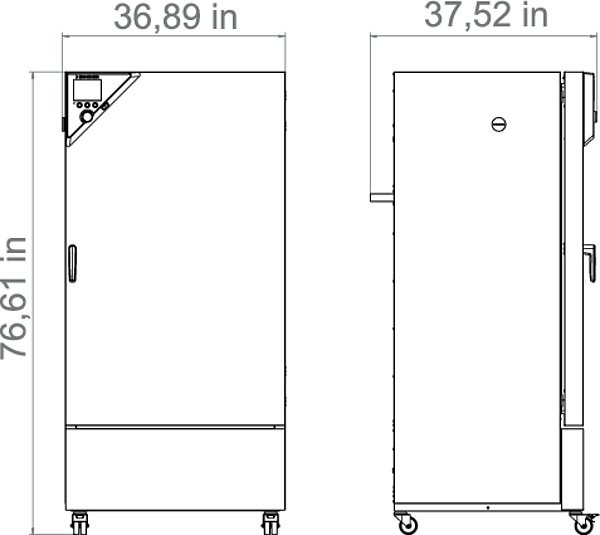

Housing dimensions not incl. fittings and connections
Depth net [in]: 31.72
Height net [in]: 76.8
Width net [in]: 36.45
Internal Dimensions
Depth [in]: 19.11
Height [in]: 50
Width [in]: 25.61
Measures
Interior volume [cu.ft.]: 14.1
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 485
Permitted load [lbs]: 265
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 3.94
Environment-specific data
Energy consumption at 37 °C [Wh/h]: 330
Sound-pressure level [dB(A)]: 53
Fixtures
Number of shelves (std./max.): 2/15
Additional Information
| Brand | BINDER |
|---|---|
| UNSPSC | 41104400 |
| Cleaning Cycle Time | No |
| Data Export | No |
| Door Opening | No |
| Exterior Dimensions | No |
| Heating | No |
| Interior Dimensions | No |
| Power Requirement | No |
| Display | No |
| Programming | No |
| Incubator Type | Refrigerated |
| Temperature Range | No |
| Number of Inner Doors | No |
| O2 Control | No |
| Recovery Time | No |
| RH | No |
| CO2 Sensor | No |
| Number of Shelves | No |
| Shelf Positions | No |
| Sterilization | No |
| Temperature Accuracy | No |
| Temperature Uniformity | No |
| Connectivity | No |
