Quick Overview
Max. heat compensation at 40 °C [W]: 500
Recovery time after 30 seconds door open at 37 °C [min]: 4
Temperature fluctuation at 37 °C [± K]: 0.1
Temperature range (max. 26 °C under ambient temperature) [°C]: 0…70
Temperature variation at 37 °C [± K]: 0.1
Details
Benefits
Safe: Unique condensate and dry-out protection for all operating conditions
Reliable: Fail-safe operation due to intelligent thermoelectric tempering
Smart: Temperatures programmable for intermitted incubation and refrigeration
Economical: Minimum energy consumption thanks to optimized thermoelectric cooling
Important characteristics
Temperature range: 0 °C through +70 °C (max. 26 °C below the ambient temperature)
APT.line™ preheating chamber technology
Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
Inner door made of tempered safety glass
Inner chamber made completely of stainless steel
2 stainless steel racks
Adjustable condensate protection
Access port with silicone plug Ø 30 mm
LCD to display temperature along with additional information and alarms
Internal data logger, measured values can be read out in open format via USB
Unit self-test for comprehensive status analysis
Technical specifications
Performance Data Temperature:
Max. heat compensation at 40 °C [W]: 500
Recovery time after 30 seconds door open at 37 °C [min]: 4
Temperature fluctuation at 37 °C [± K]: 0.1
Temperature range (max. 26 °C under ambient temperature) [°C]: 0…70
Temperature variation at 37 °C [± K]: 0.1
Electrical data
Nominal power [kW]: 1.3
Phase (Nominal voltage): 1~
Power frequency [Hz]: 50/60
Rated Voltage [V]: 100…120
Unit fuse [A]: 16
Doors
Inner doors: 2
Unit doors: 2

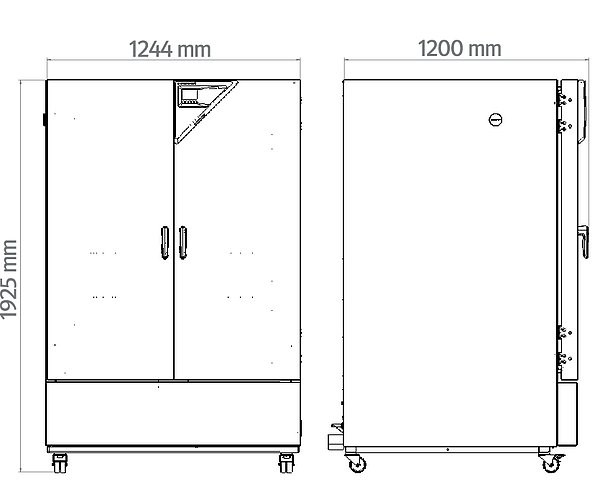

Housing dimensions not incl. fittings and connections
Depth net [in]: 45.3
Height net [in]: 75.8
Width net [in]: 49.3
Internal Dimensions
Depth [in]: 32.94
Height [in]: 49.3
Width [in]: 38.34
Measures
Interior volume [cu.ft.]: 36
Load per rack [lbs]: 99
Net weight of the unit (empty) [lbs]: 721
Permitted load [lbs]: 331
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 3.94
Environment-specific data
Energy consumption at 37 °C [Wh/h]: 105
Sound-pressure level [dB(A)]: 47
Fixtures
Number of shelves (std./max.): 2/15
