Quick Overview
Temperature range with 100% illumination [°C]: 10…60
Temperature range without illumination cassettes [°C]: 0…70
Details
Benefits
Patented lighting system ensures homogeneous light distribution
Flexible positioning of illumination cassettes, three different light spectra, individually selectable
Pressure humidification with fast response times
Important characteristics
Temperature range: 0 °C to +70 °C
Temperature range with light: +10 °C to +60 °C
Humidity range: 10 % to 80 % RH
positionable illumination cassettes, each with 5 fluorescent tubes
APT.line™ preheating chamber technology
Adjustable fan speed
Humidity regulation with capacitative humidity sensor and vapor humidification
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Unit self-test for comprehensive status analysis
Tight-sealing inner door made of safety glass (ESG)
Avoidance of glass corrosion by special TIMELESS coating
Display via color LCD monitor
stainless steel racks
Access port with silicone plug, 30 mm, left
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Computer interface: Ethernet
Door heating

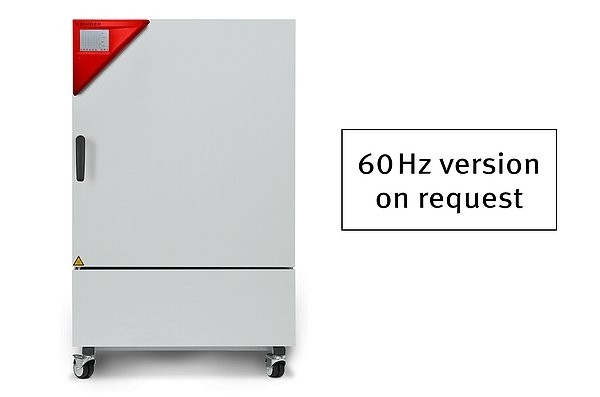

60 Hz version on request
Performance Data Temperature
Temperature range with 100% illumination [°C]: 10…60
Temperature range without illumination cassettes [°C]: 0…70
Performance Data Climate
Humidity range with illumination cassettes, with illumination [% RH] : 0…75
Humidity range without illumination [% RH]: 10…80
Temperature range with 100% illumination [°C]: 20…60
Temperature range without illumination cassettes [°C]: 10…70
Lightdata per Illumination Cassettes
Arabidopsis lamps [lx]*: 14000
Arabidopsis lamps [W/m²]*: 43
Daylight tubes [lx]*: 13000
Daylight tubes [W/m²]*: 38
Fluora® growth lamps [lx]*: 10500
Fluora® growth lamps [W/m²]*: 36
Electrical data
Nominal power [kW]: 3.5
Phase (Nominal voltage): 1~
Power frequency [Hz]: 50
Rated Voltage [V]: 200…240
Unit fuse [A]: 16
Doors
Inner doors: 2
Unit doors: 2

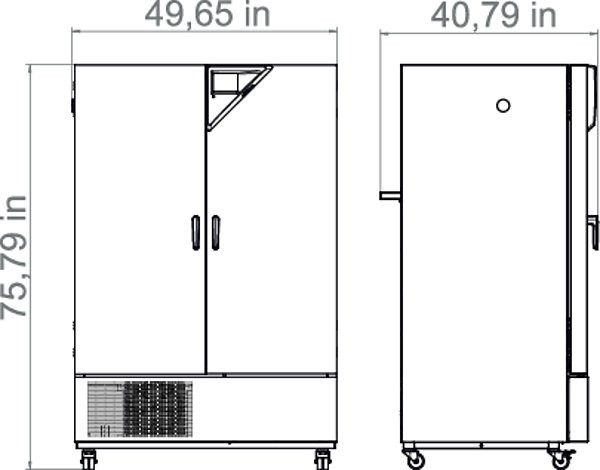

Housing dimensions not incl. fittings and connections
Depth net [in]: 35.07
Height net [in]: 75.8
Width net [in]: 49.3
Internal Dimensions
Depth [in]: 22.69
Height [in]: 49.3
Width [in]: 38.34
Measures
Interior volume [cu.ft.]: 24.7
Load per rack [lbs]: 99
Net weight of the unit (empty) [lbs]: 825
Permitted load [lbs]: 331
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 7.88
Environment-specific data
Sound-pressure level [dB(A)]: 59
Fixtures
Number of illumination cassettes (std./max.): 3/3
Number of shelves (std./max.): 3/12
