BINDER KT170UL-120V Series KT - Refrigerated Incubators, With Peltier Technology, 9020-0310
Quick Overview
Max. heat compensation at 40 °C [W]: 100 Recovery time after 30 seconds door open at 37 °C [min]: 3 Temperature fluctuation [± K]: 0.1 Temperature range: 4…100 Temperature range °C: 4…100 Temperature variation at 37 °C [± K]: 0.4
Details
Benefits
Safe, reproducible incubation, even at high ambient temperatures Disinfection routine at +100 °C Up to 30% lower energy consumption compared to the previous model
Important characteristics
Temperature range: -10 °C to +100 °C APT.line™ preheating chamber technology Up to 30% lower energy consumption compared to the previous model Refrigeration with compressor refrigerated unit Adjustable fan speed Controller with time-segment and real-time programming Inner door made of tempered safety glass 2 stainless steel racks Stackable Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm Computer interface: Ethernet
Technical specifications
Performance Data Temperature:
Max. heat compensation at 40 °C [W]: 100 Recovery time after 30 seconds door open at 37 °C [min]: 3 Temperature fluctuation [± K]: 0.1 Temperature range: 4…100 Temperature range °C: 4…100 Temperature variation at 37 °C [± K]: 0.4
Electrical data
Nominal power [kW]: 0.8 Phase (Nominal voltage): 1~ Power frequency [Hz]: 50/60 Rated Voltage [V]: 100…120 Unit fuse [A]: 10
Doors
Inner doors: 1 Unit doors: 1

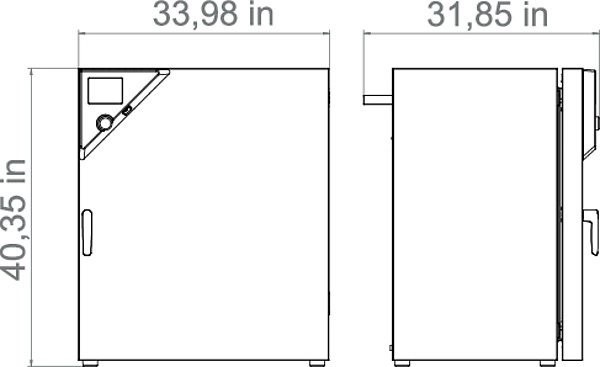

Housing dimensions not incl. fittings and connections
Depth net [in]: 25.81 Height net [in]: 40.4 Width net [in]: 33.88
