Quick Overview
Heating-up time to 150 °C [min] 21
Recovery time after 30 seconds door open at 150 °C [min]: 3
Temperature fluctuation at 150 °C [± K]: 0.3
Temperature range +5 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 1.9
Details
Benefits
Uniform drying conditions thanks to APT.line™ technology
Identical test conditions throughout the chamber interior independent of sample size and quantity
Outstanding thermal insulation saves operation costs
Advanced programming options
Important characteristics
Temperature range: room temperature plus 5 °C to 300 °C
APT.line™ preheating chamber technology
Adjustable fan speed
Program-controlled ventilation flap
Color LCD controller with time-segment programming
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Computer interface: RS 422
Technical specifications
Performance Data Temperature:
Heating-up time to 150 °C [min] 21
Recovery time after 30 seconds door open at 150 °C [min]: 3
Temperature fluctuation at 150 °C [± K]: 0.3
Temperature range +5 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 1.9
Air change data
Air change (approx.) at 150 °C [x/h]: 36
Electrical data
Nominal power [kW]: 5
Phase (Nominal voltage): 3~
Power frequency [Hz]: 50/60
Rated Voltage [V]: 400

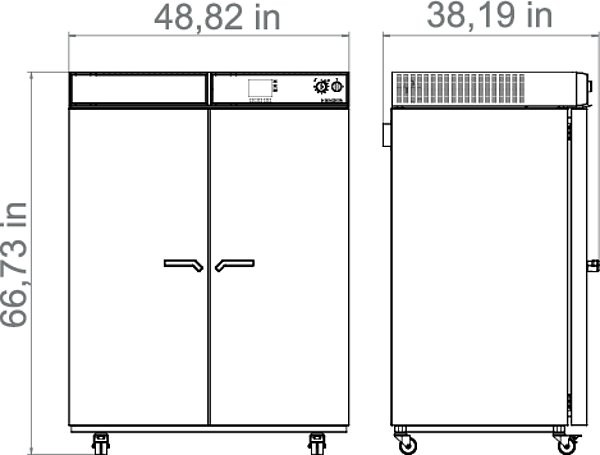

Housing dimensions not incl. fittings and connections
Depth net [in]: 34.08
Height net [in]: 66.6
Width net [in]: 48.7
Internal Dimensions
Depth [in]: 24.03
Height [in]: 47.3
Width [in]: 39.4
Measures
Interior volume [cu.ft.]: 25.4
Load per rack [lbs]: 99
Net weight of the unit (empty) [lbs]: 448
Permitted load [lbs]: 265
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94
Environment-specific data
Energy consumption at 150 °C [Wh/h]: 1320
Fixtures
Number of shelves (std./max.): 2/16
Additional Information
| Brand | BINDER |
|---|---|
| UNSPSC | 41104506 |
| Cleaning Cycle Time | No |
| Data Export | No |
| Door Opening | No |
| Exterior Dimensions | No |
| Heating | No |
| Interior Dimensions | No |
| Power Requirement | No |
| Display | No |
| Programming | No |
| Incubator Type | N/A |
| Temperature Range | No |
| Number of Inner Doors | No |
| O2 Control | No |
| Recovery Time | No |
| RH | No |
| CO2 Sensor | No |
| Number of Shelves | No |
| Shelf Positions | No |
| Sterilization | No |
| Temperature Accuracy | No |
| Temperature Uniformity | No |
| Connectivity | No |
