Quick Overview
Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5
Cooling down time from 180 °C to -40 °C [min]: 90
Max. heat compensation at 25 °C [W]: 800
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation depending on setpoint [± K]: 0.5…1.5
Details
Benefits
Homogeneous climate conditions thanks to APT.line™ technology
Comprehensive programming and data acquisition
Large heated viewing window
Important characteristics
Temperature range: -40 °C to +180 °C
APT.line™ preheating chamber technology
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
BINDER Multi Management Software APT-COM™ Basic Edition
Troubleshooting system with visual and audible alarms
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Access port with silicone plug, 50 mm, left
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
4 castors, two with brakes
Computer interface: Ethernet
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
1 stainless steel rack
Inner chamber made of stainless steel
CFC-free refrigerant R-452A
Cooling with compressor cooling unit
Optional equipment
APT-COM Multi Management Software – for managing, recording, and documenting unit parameters
Racks – option of stainless steel racks, depending on test requirements
Compressed air supply system
Services – wide range of services to ensure that the unit functions correctly
Technical specifications
Performance Data Temperature:
Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5
Cooling down time from 180 °C to -40 °C [min]: 90
Max. heat compensation at 25 °C [W]: 800
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation depending on setpoint [± K]: 0.5…1.5
Electrical data
Nominal power [kW]: 2.8
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 240
Unit fuse [A]: 16
Doors
Unit doors: 1

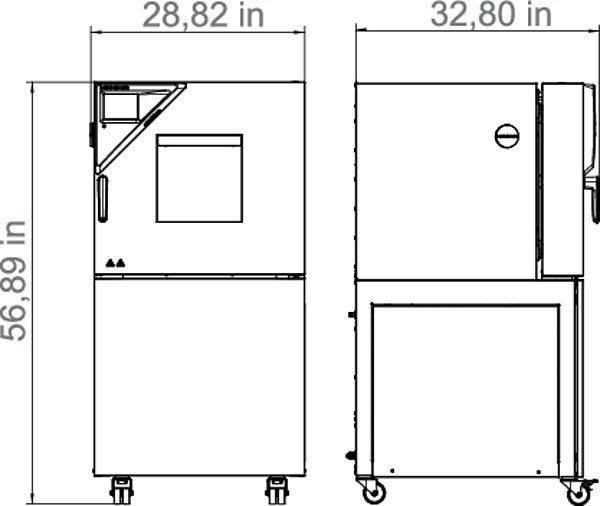

Housing dimensions not incl. fittings and connections
Depth net [in]: 30.65
Height net [in]: 56.9
Width net [in]: 28.37
Internal Dimensions
Depth [in]: 13.79
Height [in]: 16.55
Width [in]: 15.76
Measures
Interior volume [cu.ft.]: 2.1
Load per rack [lbs]: 33
Net weight of the unit (empty) [lbs]: 364
Permitted load [lbs]: 132
Viewing window height [in]: 10.05
Viewing window width [in]: 11.35
Wall clearance back [in]: 11.82
Wall clearance sidewise [in]: 7.88
Environment-specific data
Energy consumption at 20 °C: 600 W
Sound-pressure level [dB(A)]: 59
Fixtures
Number of shelves (std./max.): 1/4
