Quick Overview
Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5
Cooling down time from 180 °C to -40 °C [min]: 115
Heating-up time from -40 °C to 180 °C [min]: 55
Max. heat compensation at 20 °C [W]: 4500
Temperature fluctuation [± K]: 0.1…0.5
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation [± K]: 0.1…1.2
Temperature variation depending on setpoint [± K]: 0.1…1.2
Details
Benefits
Homogeneous climate conditions thanks to APT.line™ technology
Comprehensive programming and data acquisition
Large heated viewing window
Important characteristics
Temperature range: -40 °C to +180 °C
APT.line™ preheating chamber technology
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
BINDER Multi Management Software APT-COM™ Basic Edition
Troubleshooting system with visual and audible alarms
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Access port with silicone plug, 50 mm, left
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
4 castors, two with brakes
Computer interface: Ethernet
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
1 stainless steel rack
Inner chamber made of stainless steel
CFC-free refrigerant R-452A
Cooling with compressor cooling unit
Optional equipment
APT-COM Multi Management Software – for managing, recording, and documenting unit parameters
Racks – option of stainless steel racks, depending on test requirements
Compressed air supply system
Services – wide range of services to ensure that the unit functions correctly
Technicalspecifications
Performance Data Temperature:
Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5

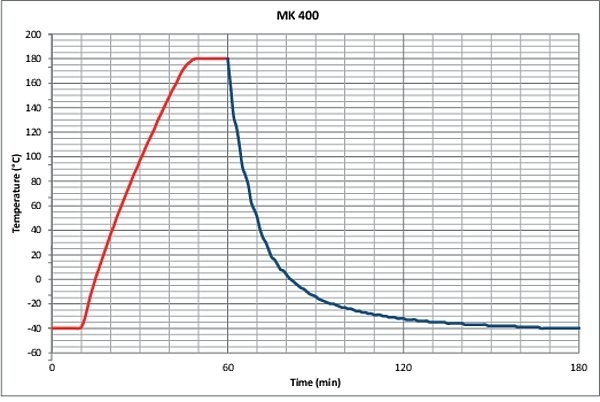

Cooling down time from 180 °C to -40 °C [min]: 115
Heating-up time from -40 °C to 180 °C [min]: 55

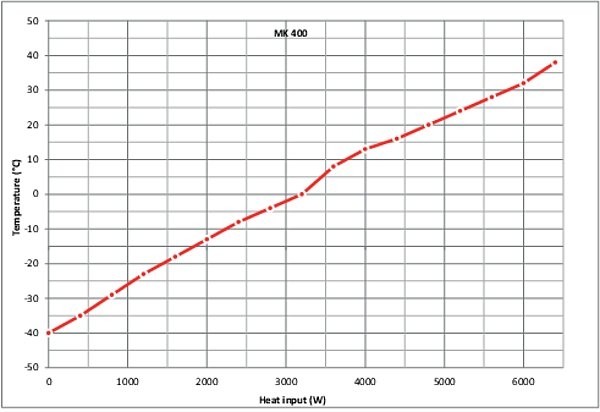

Max. heat compensation at 20 °C [W]: 4500
Temperature fluctuation [± K]: 0.1…0.5
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation [± K]: 0.1…1.2
Temperature variation depending on setpoint [± K]: 0.1…1.2
Electrical data
Nominal power [kW]: 7
Phase (Nominal voltage): 3~
Power frequency [Hz]: 60
Rated Voltage [V]: 480
Unit fuse [A]: 16
Doors
Unit doors: 1

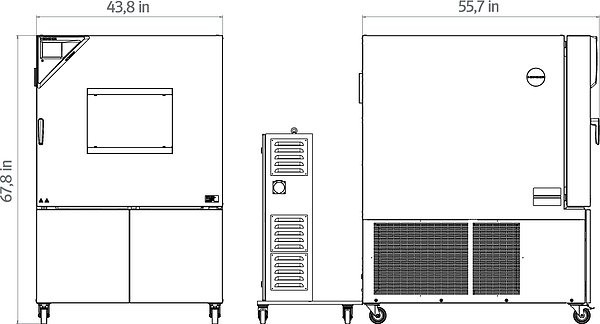

Housing dimensions not incl. fittings and connections
Depth net [in]: 55.2
Height net [in]: 67.4
Width net [in]: 43.9
Internal Dimensions
Depth [in]: 31.91
Height [in]: 27.58
Width [in]: 28.96
Measures
Interior volume [cu.ft.]: 14.7
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 910
Permitted load [lbs]: 331
Viewing window height [in]: 11.82
Viewing window width [in]: 20.02
Wall clearance back [in]: 19.7
Wall clearance sidewise [in]: 11.82
Environment-specific data
Energy consumption at 20 °C: 1400 Wh/h
Sound-pressure level [dB(A)]: 65
Fixtures
Number of shelves (std./max.): 1/6
