BINDER MKF056-240V Series MKF - Dynamic Climate Chambers, For Rapid Temperature Changes With Humidity Control, 9020-0389
Quick Overview
Average cooling down time according to IEC 60068-3-5 [K/min]: 5 Average heating-up rate according to IEC 60068-3-5 [K/min]: 5 Cooling down time from 180 °C to -40 °C [min]: 90 Max. heat compensation at 25 °C [W]: 1200 Temperature fluctuation depending on setpoint [± K]: 0.1…0.5 Temperature range: -40…180 Temperature variation depending on setpoint [± K]: 0.5…1.5
Details
Benefits
Homogeneous climate conditions thanks to APT.line™ technology Automatic water and wastewater management Pressure humidification with fast response times Comprehensive programming and data acquisition Large heated viewing window
Important characteristics
Temperature range: -40 °C to +180 °C Humidity range: 10 % to 98 % RH 4 zero-voltage relay contacts that can be activated via MCS controller APT.line™ preheating chamber technology Programmable condensation protection for test material Heated viewing window with LED interior lighting Humidity regulation with capacitative humidity sensor and vapor humidification BINDER Multi Management Software APT-COM™ Basic Edition Troubleshooting system with visual and audible alarms Intuitive touchscreen controller with time-segment and real-time programming Internal data logger, measured values can be read out in open format via USB Unit self-test for comprehensive status analysis Access port with silicone plug: 50 mm, left 4 castors, two with brakes Computer interface: Ethernet Adjustable ramp function Integrated chart recorder Real-time clock Door heating 1 stainless steel rack Complete safety connection kit for water supply and drainage, up to 1 m height BINDER test confirmation Inner chamber made of stainless steel Pt 100 temperature sensor Thermal insulation using PUR foam CFC-free refrigerant R-452A Cooling with compressor cooling unit Fin evaporator Optional equipment
APT-COM Multi Management Software – for managing, recording, and documenting unit parameters Racks – option of stainless steel racks, depending on test requirements Systems for water treatment and compressed air supply Services – wide range of services to ensure that the unit functions correctly
Technical specifications
Performance Data Temperature:

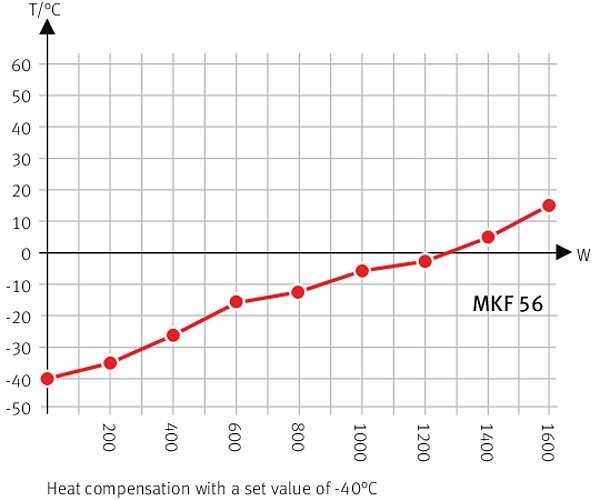

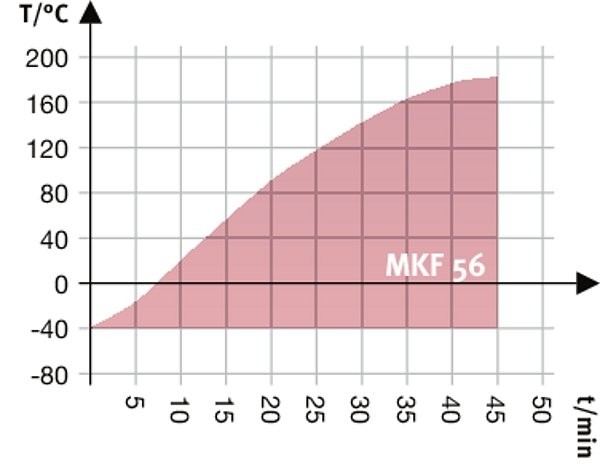

Average cooling down time according to IEC 60068-3-5 [K/min]: 5 Average heating-up rate according to IEC 60068-3-5 [K/min]: 5 Cooling down time from 180 °C to -40 °C [min]: 90 Max. heat compensation at 25 °C [W]: 1200 Temperature fluctuation depending on setpoint [± K]: 0.1…0.5 Temperature range: -40…180 Temperature variation depending on setpoint [± K]: 0.5…1.5 Performance Data Climate

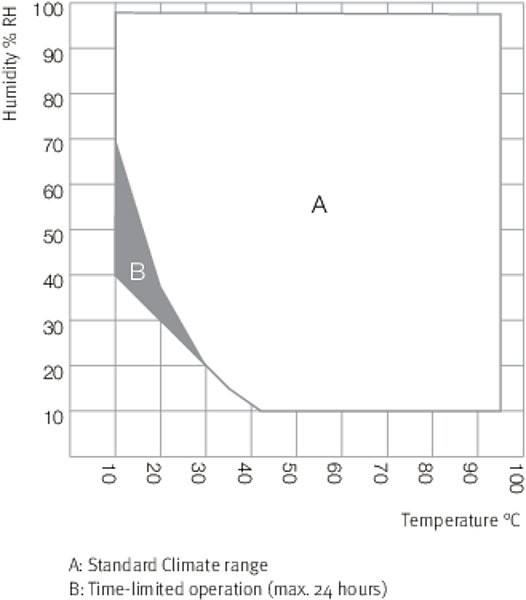

Dew point temperature range [°C]: 5…94 Humidity fluctuation depending on setpoint: ≤2,5 ± % RH Humidity range: 10…98 Temperature fluctuation depending on setpoint [± K]: 0.1…0.5 Temperature range [°C]: 10…95 Electrical data
Nominal power [kW]: 2.8 Phase (Nominal voltage): 1~ Power frequency [Hz]: 60 Rated Voltage [V]: 200…240 Unit fuse [A]: 16 Doors
Unit doors: 1 Housing dimensions not incl. fittings and connections
Depth net [in]: 30.73 Height net [in]: 56.9 Width net [in]: 28.37 Internal Dimensions
