Quick Overview
Average cooling down time according to factory standard [K/min]: 5
Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Average heating-up rate [K/min]: 5.5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5.5
Cooling down time from 180 °C to -40 °C [min]: 120
Heating-up time from -40 °C to 180 °C [min]: 60
Max. heat compensation at 20 °C [W]: 6000
Temperature fluctuation [± K]: 0.1…0.5
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation [± K]: 0.1…1.8
Temperature variation depending on setpoint [± K]: 0.1…1.8
Details
Benefits
Homogeneous climate conditions thanks to APT.line™ technology
Automatic water and wastewater management
Pressure humidification with fast response times
Comprehensive programming and data acquisition
Large heated viewing window
Important characteristics
Temperature range: -40 °C to +180 °C
Humidity range: 10% to 98% RH
Humidity regulation with capacitive humidity sensor and steam humidification
APT.line™ preheating chamber technology
Intuitive touchscreen controller with time-segment and real-time programming
CFC-free refrigerant R-452A
Integrated water-storage tank, 20 L
1 stainless steel rack
2 access ports with silicone plugs, 80 mm, left and right
4 zero-voltage relay contacts
Optional equipment
APT-COM Multi Management Software – for managing, recording, and documenting unit parameters
Racks – option of stainless steel racks, depending on test requirements
Systems for water treatment and compressed air supply
Services – wide range of services to ensure that the unit functions correctly
Technical specifications
Performance Data Temperature:
Average cooling down time according to factory standard [K/min]: 5
Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Average heating-up rate [K/min]: 5.5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5.5
Cooling down time from 180 °C to -40 °C [min]: 120
Heating-up time from -40 °C to 180 °C [min]: 60

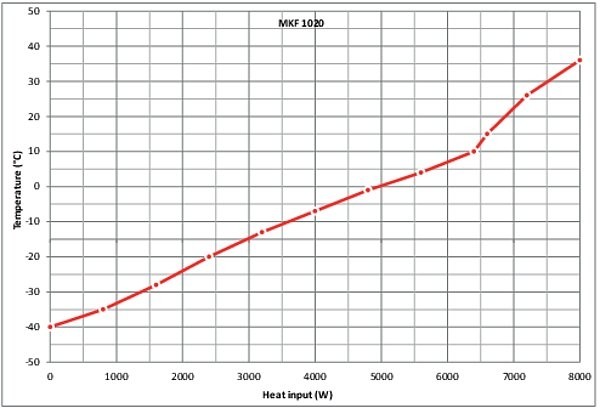

Max. heat compensation at 20 °C [W]: 6000
Temperature fluctuation [± K]: 0.1…0.5
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation [± K]: 0.1…1.8
Temperature variation depending on setpoint [± K]: 0.1…1.8
Performance Data Climate
Dew point temperature range [°C]: 5…94
Humidity fluctuation depending on setpoint: 2,5 ± % RH
Humidity range: 10…98
Temperature fluctuation [± K]: 0.1…1.5
Temperature fluctuation depending on setpoint [± K]: 0.1…1.5
Temperature range [°C]: 10…95
Temperature variation [± K]: 0.1…2
Electrical data
Nominal power [kW]: 12.5
Phase (Nominal voltage): 3~
Power frequency [Hz]: 60
Rated Voltage [V]: 480
Unit fuse [A]: 32
Doors
Unit doors: 1

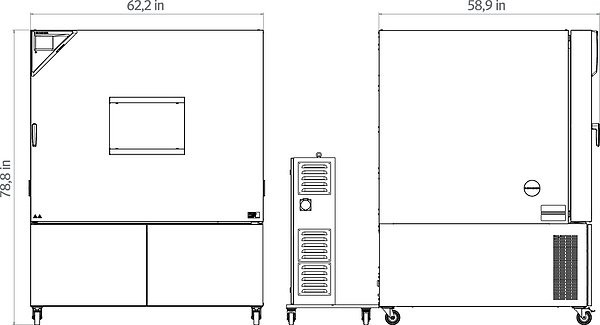

Housing dimensions not incl. fittings and connections
Depth net [in]: 58.3
Height net [in]: 79
Width net [in]: 62.3
Internal Dimensions
Depth [in]: 31.91
Height [in]: 40.2
Width [in]: 47.3
Measures
Interior volume [cu.ft.]: 35
Load per rack [lbs]: 88
Net weight of the unit (empty) [lbs]: 1402
Permitted load [lbs]: 441
Viewing window height [in]: 11.82
Viewing window width [in]: 20.02
Wall clearance back [in]: 11.82
Wall clearance sidewise [in]: 7.88
Environment-specific data
Energy consumption at 25 °C and 60 % RH [Wh/h]: 2200
Sound-pressure level [dB(A)]: 69
Fixtures
Number of shelves (std./max.): 1/11
Additional Information
| Brand | BINDER |
|---|---|
| Cleaning Cycle Time | No |
| Data Export | No |
| Door Opening | No |
| Exterior Dimensions | No |
| Heating | No |
| Interior Dimensions | No |
| Power Requirement | No |
| Display | No |
| Programming | No |
| Incubator Type | N/A |
| Temperature Range | No |
| Number of Inner Doors | No |
| O2 Control | No |
| Recovery Time | No |
| RH | No |
| CO2 Sensor | No |
| Number of Shelves | No |
| Shelf Positions | No |
| Sterilization | No |
| Temperature Accuracy | No |
| Temperature Uniformity | No |
| Connectivity | No |
