BINDER MKF720-400V Series MKF - Dynamic Climate Chambers, For Rapid Temperature Changes With Humidity Control, 9020-0381

Benefits

Homogeneous climate conditions thanks to APT.line™ technology
Automatic water and wastewater management
Pressure humidification with fast response times
Comprehensive programming and data acquisition
Large heated viewing window

Important characteristics

Temperature range: -40 °C to +180 °C
Humidity range: 10 % to 98 % RH
Integrated water-storage tank, 20 liters
4 zero-voltage relay contacts
APT.line™ preheating chamber technology
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
Humidity regulation with capacitative humidity sensor and vapor humidification
BINDER Multi Management Software APT-COM™ 4 Basic Edition
Troubleshooting system with visual and audible alarms
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
2 access ports with silicone plugs: 80 mm, left and right
4 castors, two with brakes
Computer interface: Ethernet
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
Alarm notification in the event of insufficient water in fresh water tank
1 stainless steel rack
Complete safety connection kit for water supply and drainage, up to 1 m height
Inner chamber made of stainless steel
CFC-free refrigerant R-452A
Cooling with compressor cooling unit

Optional equipment

APT-COM Multi Management Software – for managing, recording, and documenting unit parameters
Racks – option of stainless steel racks, depending on test requirements
Systems for water treatment and compressed air supply
Services – wide range of services to ensure that the unit functions correctly

Technical specifications

Performance Data Temperature:

Average cooling down time according to IEC 60068-3-5 [K/min]: 4.8

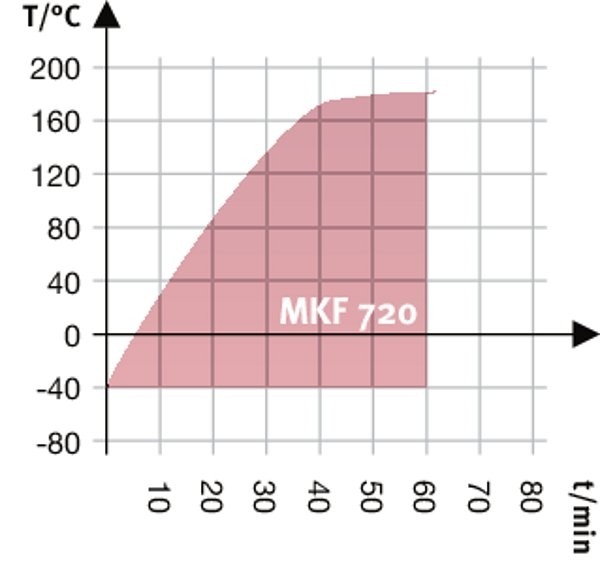

Average heating-up rate according to IEC 60068-3-5 [K/min]: 4.8

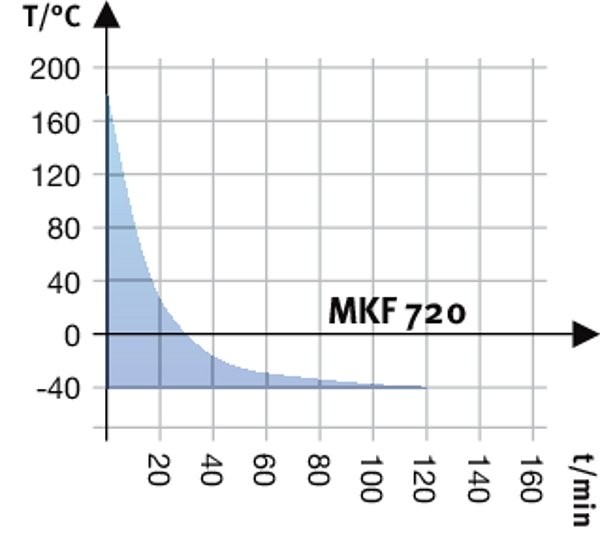

Cooling down time from 180 °C to -40 °C [min]: 120
Max. heat compensation at 25 °C [W]: 5800
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation depending on setpoint [± K]: 0.1…1.8

Performance Data Climate

Dew point temperature range [°C]: 5…94
Humidity fluctuation depending on setpoint: ≤2,5 ± % RH
Humidity range: 10…98
Temperature fluctuation depending on setpoint [± K]: 0.2…1.5
Temperature range [°C]: 10…95

Electrical data

Nominal power [kW]: 11
Phase (Nominal voltage): 3~
Power frequency [Hz]: 50
Rated Voltage [V]: 400
Unit fuse [A]: 32

Doors

Unit doors: 1

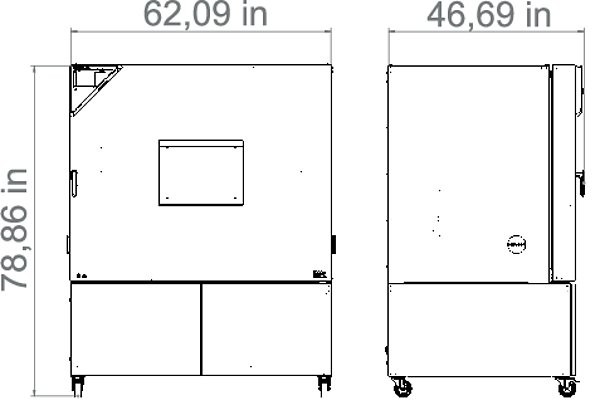

Housing dimensions not incl. fittings and connections

Depth net [in]: 44.9
Height net [in]: 79
Width net [in]: 62.3

Internal Dimensions

Depth [in]: 23.64
Height [in]: 40.2
Width [in]: 47.3

Measures

Interior volume [cu.ft.]: 25.9
Load per rack [lbs]: 88
Net weight of the unit (empty) [lbs]: 1301
Permitted load [lbs]: 353
Viewing window height [in]: 11.82
Viewing window width [in]: 20.02
Wall clearance back [in]: 11.82
Wall clearance sidewise [in]: 7.88

Environment-specific data

Energy consumption at 25 °C and 60 % RH [Wh/h]: 3000
Sound-pressure level [dB(A)]: 65

Fixtures
Number of shelves (std./max.): 1/11
