Quick Overview
Heating-up time to 150 °C [min]: 36
Recovery time after 30 seconds door open at 150 °C [min]: 19
Temperature range: 60…230
Details
Benefits
Uniform drying conditions thanks to APT.line™ technology
Identical test conditions throughout the chamber interior independent of sample size and quantity
Outstanding thermal insulation saves operation costs
Important characteristics
Temperature range: 60 °C to 230 °C
Adjustable exhaust air flap
Hydro-mechanical thermostat
Class 1 temperature limitation device (Model E028-230V-T)
Timer 0 – 120 min
2 chrome-plated racks
Technical specifications
Performance Data Temperature
Heating-up time to 150 °C [min]: 36
Recovery time after 30 seconds door open at 150 °C [min]: 19
Temperature range: 60…230
Electrical data
Nominal power [kW]: 0.8
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Doors
Unit doors: 1

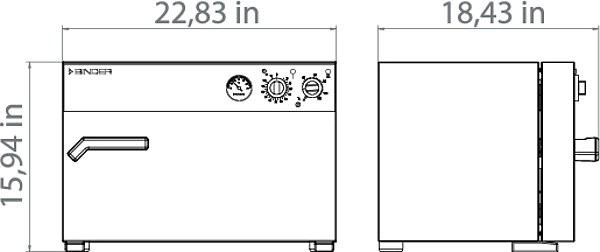

Housing dimensions not incl. fittings and connections
Depth net [in]: 16.74
Height net [in]: 15.96
Width net [in]: 22.85
Internal Dimensions
Depth [in]: 9.85
Height [in]: 11.03
Width [in]: 15.76
Measures
Interior volume [cu.ft.]: 1
Load per rack [lbs]: 22
Net weight of the unit (empty) [lbs]: 49
Permitted load [lbs]: 55
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94
Fixtures
Number of shelves (std./max.): 2/4
Additional Information
| Brand | BINDER |
|---|---|
| UNSPSC | 41104500 |
| Certificate | No |
| Heating Time | 36 min at 107 °C |
| Oven Type | Gravity Oven |
| Temperature Uniformity | 60 °C to 230 °C |
| Heat Range | 36-150 °C |
| Temperature Accuracy | 0.1 °C |
| Shelves | 2/4 |
| Weight | 49 lbs |
| Exterior Dimensions | 16.74 x 15.96 x 22.85 in |
| Power | 120 V |
| Volume | 1 cu.ft |
| Interior Dimensions | 9.85 x 11.03 x 15.76 in |
| Capacity | Capacity |
| Display | analog |
| Control Type | Analog |
