Quick Overview
Heating-up time to 150 °C [min]: 45
Recovery time after 30 seconds door open at 150 °C [min]: 16
Temperature fluctuation at 150 °C [± K]: 0.4
Temperature range +5 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 1.5
Details
Benefits
Best energy efficiency on the market
Excellent temporal and spatial temperature accuracy
USB connection for recording data
Temperature range up to +300 °C
Important characteristics
Temperature range: ambient temperature plus 5 °C to 300 °C
High temperature accuracy thanks to APT.line™ technology
Gravity convection
Controller with LCD display
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Stackable
Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
Ergonomic handle design
USB port for recording data
Technical specifications
Performance Data Temperature
Heating-up time to 150 °C [min]: 45
Recovery time after 30 seconds door open at 150 °C [min]: 16
Temperature fluctuation at 150 °C [± K]: 0.4
Temperature range +5 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 1.5
Air change data
Air change (approx.) at 100 °C [x/h]: 6
Electrical data
Nominal power [kW]: 1.35
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 12.5
Doors
Unit doors: 1

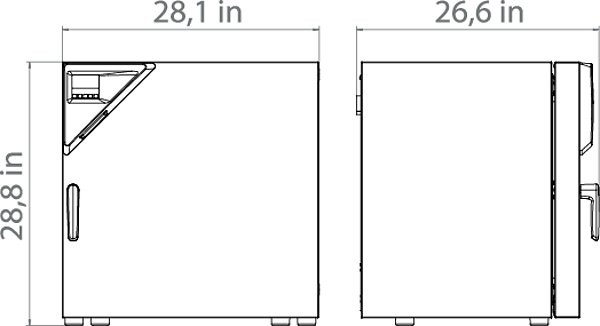

Housing dimensions not incl. fittings and connections
Depth net [in]: 23.84
Height net [in]: 27.78
Width net [in]: 27.97
Internal Dimensions
Depth [in]: 16.74
Height [in]: 20.88
Width [in]: 20.09
Measures
Interior volume [cu.ft.]: 4
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 126
Permitted load [lbs]: 331
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94
Environment-specific data
Energy consumption at 150 °C [Wh/h]: 245
Fixtures
Number of shelves (std./max.): 2/5
Additional Information
| Brand | BINDER |
|---|---|
| UNSPSC | 41104506 |
| Certificate | CE |
| Heating Time | 45 min at 150 °C |
| Oven Type | Gravity Oven |
| Temperature Uniformity | 5 °C to 300 °C |
| Heat Range | 45-150 °C |
| Temperature Accuracy | 0.1 °C |
| Shelves | 2/5 |
| Weight | 126 lbs |
| Exterior Dimensions | 23.84 x 27.78 x 27.97 in |
| Power | 120 V |
| Volume | 4 cu.ft |
| Interior Dimensions | 16.74 x 20.88 x 20.09 in |
| Capacity | Capacity |
| Display | digital |
| Control Type | Digital |
