BINDER FED260UL-240V Series FED Avantgarde.Line - Drying And Heating Chambers, With Forced Convection And Enhanced Timer Functions, 9010-0300
Quick Overview
Heating-up time to 150 °C [min]: 19 Recovery time after 30 seconds door open at 150 °C [min]: 5 Temperature fluctuation at 150 °C [± K]: 0.4 Temperature range +10 °C above ambient temperature to [°C]: 300 Temperature variation at 150 °C [± K]: 1.6
Details
Benefits
Best energy efficiency on the market Excellent temporal and spatial temperature accuracy USB connection for recording data Temperature range up to 300 °C
Important characteristics
Temperature range: +10 °C above ambient temperature to +300 °C Up to 30% lower energy consumption compared to conventional units on the market High temperature accuracy thanks to APT.line™ technology Adjustable fan speed Controller with LCD display and enhanced time functions Electromechanical control of the exhaust air flap 2 chrome-plated racks Units up to 115 liters are stackable Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm Ergonomic handle design Ethernet interface USB port for recording data
Technical specifications
Performance Data Temperature:
Heating-up time to 150 °C [min]: 19 Recovery time after 30 seconds door open at 150 °C [min]: 5 Temperature fluctuation at 150 °C [± K]: 0.4 Temperature range +10 °C above ambient temperature to [°C]: 300 Temperature variation at 150 °C [± K]: 1.6
Air change data
Air change (approx.) at 100 °C [x/h]: 9
Electrical data
Nominal power [kW]: 2.5 Phase (Nominal voltage): 1~ Power frequency [Hz]: 60 Rated Voltage [V]: 240 Unit fuse [A]: 16
Doors
Unit doors: 1

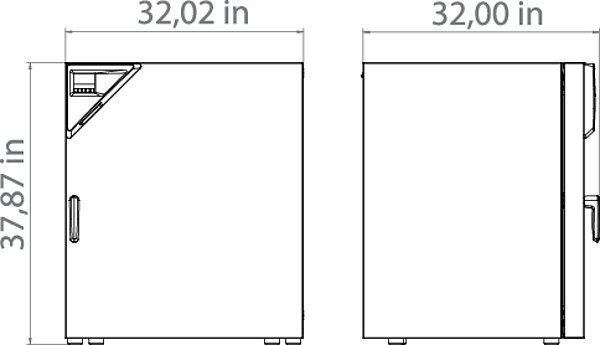

Housing dimensions not incl. fittings and connections
Depth net [in]: 29.94 Height net [in]: 37.04 Width net [in]: 31.91
