BINDER FP053UL-120V Series FP Classic.Line - Drying And Heating Chambers, With Forced Convection And Program Functions, 9010-0175

Benefits

Uniform drying conditions thanks to APT.line™ technology
Identical test conditions throughout the chamber interior independent of sample size and quantity
Outstanding thermal insulation saves operation costs
Advanced programming options

Important characteristics

Temperature range: room temperature plus 5 °C to 300 °C
APT.line™ preheating chamber technology
Adjustable fan speed
Adjustable exhaust air flap
Controller with time-segment and real-time programming
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Computer interface: RS 422

Technical specifications

Performance Data Temperature:

Heating-up time to 150 °C [min]: 24
Recovery time after 30 seconds door open at 150 °C [min]: 5
Temperature fluctuation at 150 °C [± K]: 0.3
Temperature range +5 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 2

Air change data

Air change (approx.) at 150 °C [x/h]: 64

Electrical data

Nominal power [kW]: 1.2
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 16

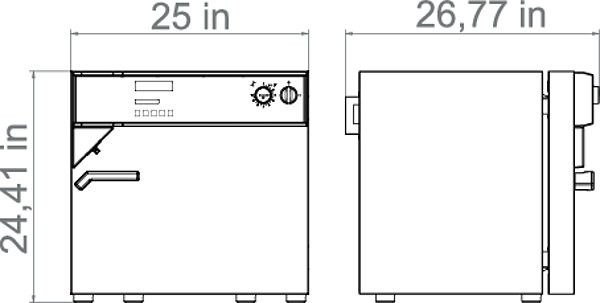

Housing dimensions not incl. fittings and connections

Depth net [in]: 22.65
Height net [in]: 24.43
Width net [in]: 25.02

Internal Dimensions

Depth [in]: 13.4
Height [in]: 15.76
Width [in]: 15.76

Measures

Interior volume [cu.ft.]: 1.9
Load per rack [lbs]: 33
Net weight of the unit (empty) [lbs]: 97
Permitted load [lbs]: 88
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 150 °C [Wh/h]: 300

Fixtures

Number of shelves (std./max.): 2/5
