Quick Overview
• Volume Capacity : 250 mL
• Speed Range : 8000 - 30000 RPM
• Fineness: Suspensions & Emulsions ( 1 - 10 μm)
• Immersion Length : 115 mm
• Speed Range : 8000 - 30000 RPM
• Fineness: Suspensions & Emulsions ( 1 - 10 μm)
• Immersion Length : 115 mm
Details
- During operation, the suspended material is drawn into the core of the homogenizer by a rotor turning at up to 30,000 RPM. The material is repeatedly cycled through slits in the probe where it is rapidly sheared and disintegrated. Although not included, there are generator probes available for solid/liquid, or tissue media up to 250mL volume samples:
- DS-160/5 Generator Probe for Liquid/Solid Media | 0.1 - 50 mL Volumes
DS-160/10 Generator Probe for Liquid/Solid Media | 1 - 250 mL Volumes
Saw Tooth Generator Probe for Tissues | 0.1 - 50 mL Volumes
Saw Tooth Generator Probe for Tissues | 1 - 50 mL Volumes
Saw Tooth Generator Probe for Tissues | 1 - 250 mL Volumes
Saw Tooth Generator Probe for Tissues | 100 - 1000 mL Volumes
- Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is usually achieved in a few seconds with little, if any, heat produced during the process. The homogenizer is easily controlled using its 6 position control dial.

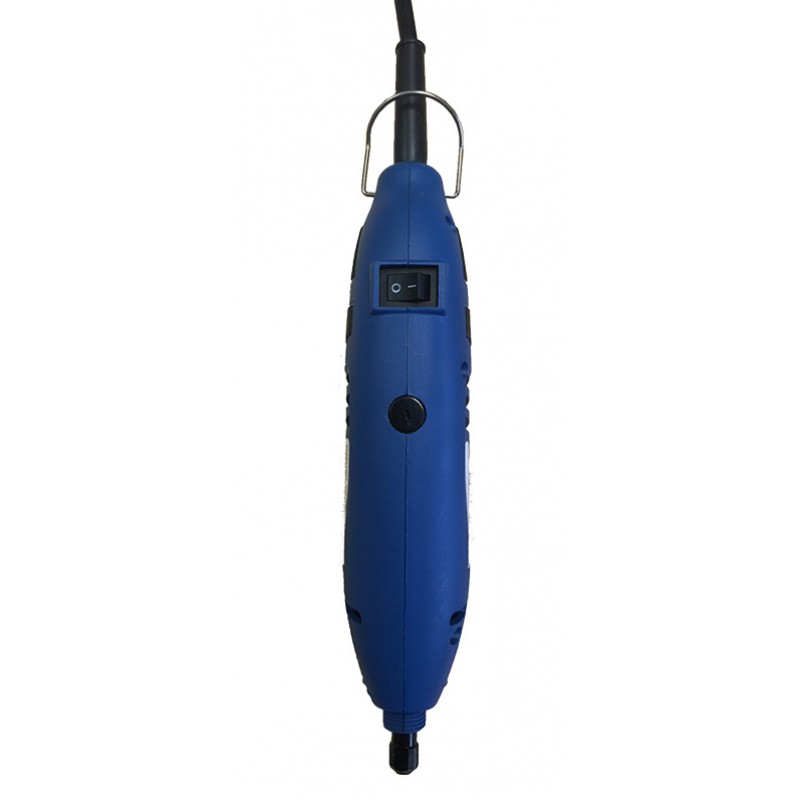

- The D160 drive is a great option for small samples due to its light weight, easy to hold design. The dirve is 1.5lbs with dimensions of 2.5 x 2.5 x 8 inches.
- This product comes with a 2 year warranty.
Additional Information
| Brand | Scilogex |
|---|---|
| UNSPSC | 41101504 |
| Type of Product | Homogenizer |
| Speed Range | 8000 - 30000 RPM |
| Accessory Type | No |
| Immersion Length | 115 mm |
| Equipment Compatibility | No |
| Fineness | Suspensions & Emulsions ( 1 - 10 μm) |
| Accessory Volume | No |
| Noise Emission | 54 dB(A) at 30000 RPM |
| Capacity | 250 mL |
| Control Type | 6 Position Control Dial |
| Motor Type | 130 Watt, Universal Motor |
| Voltage | 110V |
| Weight | 18 lbs. |
| Dimensions | 2.5 L x 2.5 W x 8 H " |
