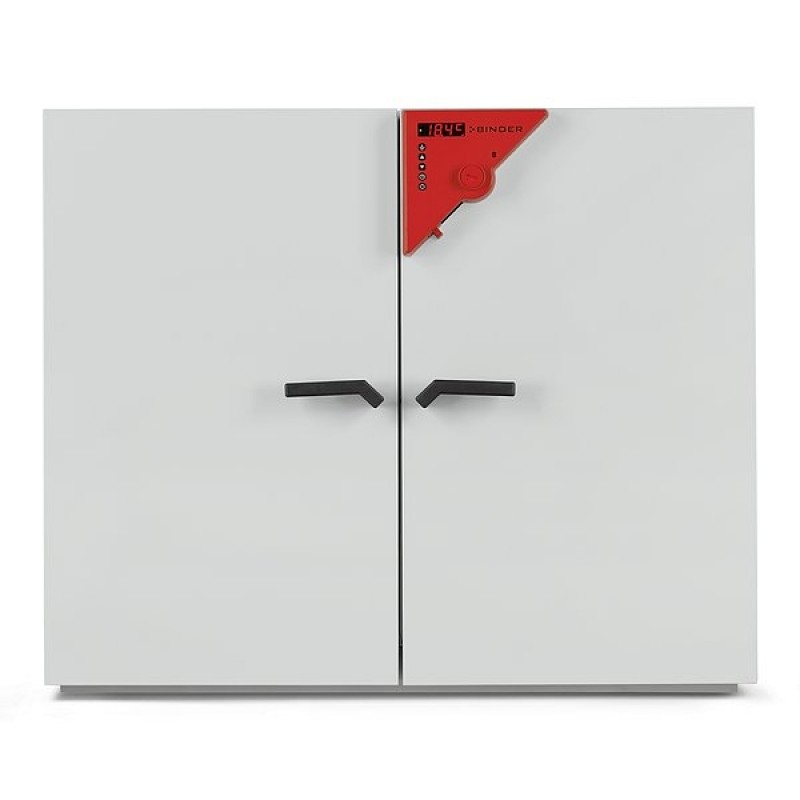

BINDER FED400-400V Series FED Classic.Line - Drying And Heating Chambers, With Forced Convection And Enhanced Timer Functions, 9010-0216

Benefits

Uniform drying conditions thanks to APT.line™ technology
Identical test conditions throughout the chamber interior independent of sample size and quantity
Outstanding thermal insulation saves operation costs

Important characteristics

Temperature range: room temperature plus 5 °C to 300 °C
APT.line™ preheating chamber technology
Adjustable fan speed
Adjustable exhaust air flap
Controller with expanded timer functions
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Computer interface: RS 422

Technical specifications

Performance Data Temperature:

Heating-up time to 150 °C [min]: 29
Recovery time after 30 seconds door open at 150 °C [min]: 6
Temperature fluctuation at 150 °C [± K]: 0.7
Temperature range +5 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 3.8

Air change data

Air change (approx.) at 150 °C [x/h]: 18

Electrical data

Nominal power [kW]: 3.4
Phase (Nominal voltage): 3~
Power frequency [Hz]: 50/60
Rated Voltage [V]: 400
Unit fuse [A]: 3 x 16

Doors

Unit doors: 2

Housing dimensions not incl. fittings and connections

Depth net [in]: 30.14
Height net [in]: 40.4
Width net [in]: 48.7

Internal Dimensions

Depth [in]: 20.09
Height [in]: 31.52
Width [in]: 39.4

Measures

Interior volume [cu.ft.]: 14.1
Load per rack [lbs]: 77
Net weight of the unit (empty) [lbs]: 320
Permitted load [lbs]: 198
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 150 °C [Wh/h]: 1200

Fixtures

Number of shelves (std./max.): 2/10
