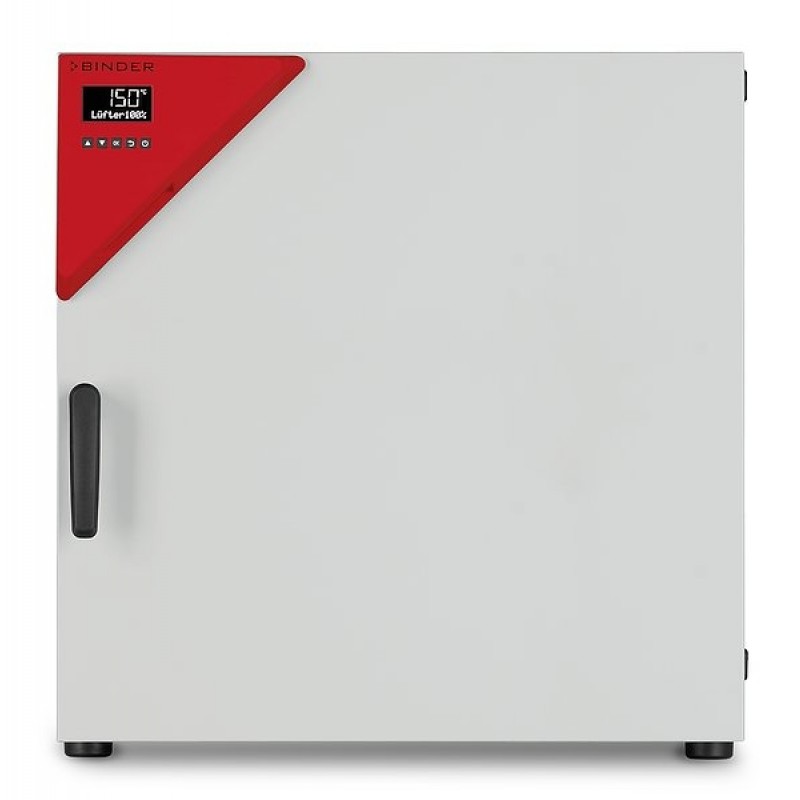

BINDER ED115UL-120V Series ED Avantgarde.Line - Drying And Heating Chambers, With Gravity Convection, 9010-0336

Benefits

Best energy efficiency on the market
Excellent temporal and spatial temperature accuracy
USB connection for recording data
Temperature range up to +300 °C

Important characteristics

Temperature range: ambient temperature plus 5 °C to 300 °C
High temperature accuracy thanks to APT.line™ technology
Gravity convection
Controller with LCD display
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Stackable
Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
Ergonomic handle design
USB port for recording data

Technical specifications

Performance Data Temperature

Heating-up time to 150 °C [min]: 45
Recovery time after 30 seconds door open at 150 °C [min]: 16
Temperature fluctuation at 150 °C [± K]: 0.4
Temperature range +5 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 1.5

Air change data

Air change (approx.) at 100 °C [x/h]: 6

Electrical data

Nominal power [kW]: 1.35
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 12.5

Doors

Unit doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 23.84
Height net [in]: 27.78
Width net [in]: 27.97

Internal Dimensions

Depth [in]: 16.74
Height [in]: 20.88
Width [in]: 20.09

Measures

Interior volume [cu.ft.]: 4
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 126
Permitted load [lbs]: 331
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 150 °C [Wh/h]: 245

Fixtures

Number of shelves (std./max.): 2/5
