Quick Overview

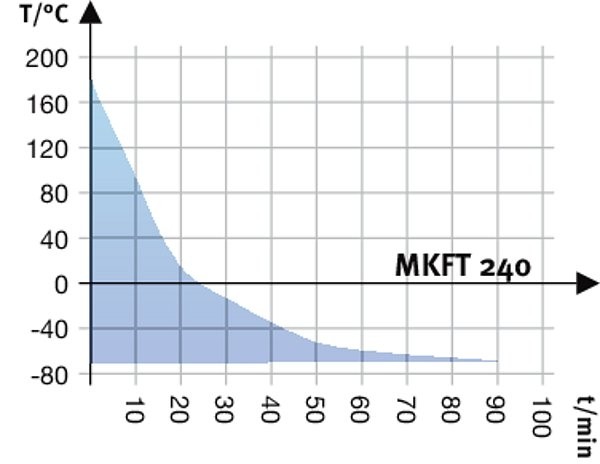

Average cooling down time according to IEC 60068-3-5 [K/min]: 4.2

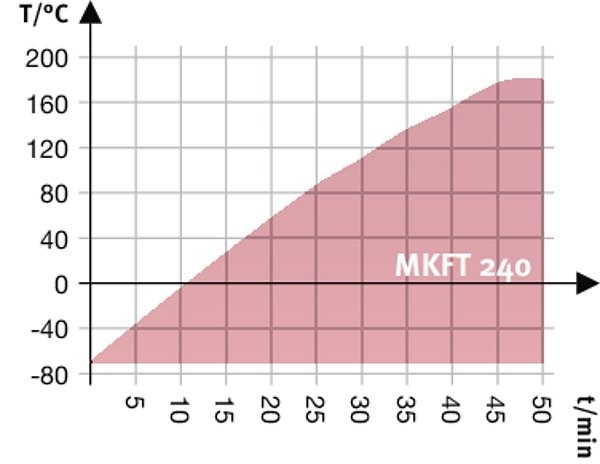

Average heating-up rate according to IEC 60068-3-5 [K/min]: 5

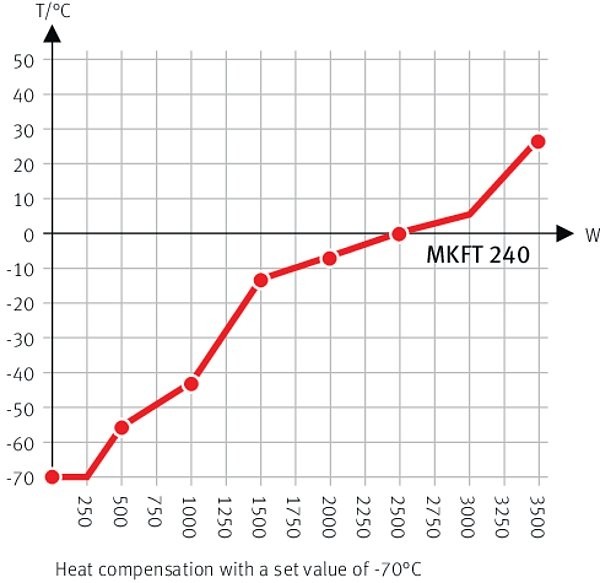

Max. heat compensation at 25 °C [W]: 3000
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -70…180
Temperature variation depending on setpoint [± K]: 0.2…1.8
Details
Benefits
Homogeneous climate conditions thanks to APT.line™ technology
Automatic water and wastewater management
Pressure humidification with fast response times
Comprehensive programming and data acquisition
Large heated viewing window
Important characteristics
Temperature range: -70 °C to +180 °C
Humidity range: 10 % to 98 % RH
Integrated water-storage tank, 20 liters
4 zero-voltage relay contacts
APT.line™ preheating chamber technology
Programmable condensation protection for test material
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Heated viewing window with LED interior lighting
Humidity regulation with capacitative humidity sensor and vapor humidification
BINDER Multi Management Software APT-COM™ Basic Edition
Troubleshooting system with visual and audible alarms
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Access port with silicone plug: 50 mm, left
4 castors, two with brakes
Computer interface: Ethernet
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
Alarm notification in the event of insufficient water in fresh water tank
1 stainless steel rack
Complete safety connection kit for water supply and drainage, up to 1 m in height
Inner chamber made of stainless steel
CFC-free refrigerants R-452A and R-23
Cooling with cascade compressor cooling unit
Technical specifications
Performance Data Temperature:
Average cooling down time according to IEC 60068-3-5 [K/min]: 4.2
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5
Max. heat compensation at 25 °C [W]: 3000
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -70…180
Temperature variation depending on setpoint [± K]: 0.2…1.8
Performance Data Climate
Dew point temperature range [°C]: 5…94
Humidity fluctuation depending on setpoint: ≤2,5 ± % RH
Humidity range: 10…98
Temperature fluctuation depending on setpoint [± K]: 0.1…1
Temperature range [°C]: 10…95
Electrical data
Nominal power [kW]: 6
Phase (Nominal voltage): 3~
Power frequency [Hz]: 50
Rated Voltage [V]: 400
Unit fuse [A]: 16
Doors
Unit doors: 1
Housing dimensions not incl. fittings and connections
Depth net [in]: 36.45
Height net [in]: 76.4
Width net [in]: 43.9
Internal Dimensions
Depth [in]: 17.45
Height [in]: 27.58
Width [in]: 28.96
Measures
Interior volume [cu.ft.]: 8
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 915
Permitted load [lbs]: 154
Viewing window height [in]: 11.82
Viewing window width [in]: 20.02
Wall clearance back [in]: 11.82
Wall clearance sidewise [in]: 7.88
Environment-specific data
Sound-pressure level [dB(A)]: 67
Fixtures
Number of shelves (std./max.): 1/6
