Quick Overview
• Homogenizer Kit Indludes: Drive Motor, Stand, DS-500/2 Generator Probe
• Volume Capacity : 5000 mL
• Speed Range : 10000 - 29000 RPM
• Fineness: Suspensions & Emulsion (10 - 15 μm) & (1 - 10 μm)
• Immersion Length : 215 mm
• Volume Capacity : 5000 mL
• Speed Range : 10000 - 29000 RPM
• Fineness: Suspensions & Emulsion (10 - 15 μm) & (1 - 10 μm)
• Immersion Length : 215 mm
Details

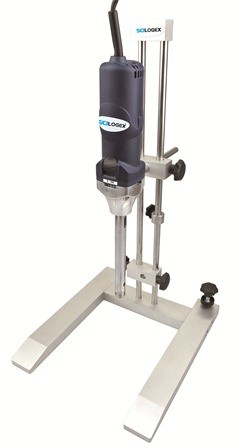

- The Scilogex D500/2 Homogenizer Package comes with Drive Motor,H-600 stand, and DS-500/2 Generator Probe. The DS-500/2 probe with S20F 20mm open slot fine generator, and ER20 20mm emulsifying rotor are used for oil in water or water in oil emulsions at volumes of 10 - 5000 mL.
- Included in Package Flat Head, Open Slot Fine Generator Probe for Water in Oil or Oil in Water Media | 10 - 5000 mL Volumes
Flat Head, Open Slot Coarse Generator Probe for Liquid/Solid Media | 10 - 5000 mL Volumes
Flat Head, Open Slot Generator Probe for Solid/Liquid Media | 1 - 50 mL Volumes - The 6 speed control dial has a maximum speed of 29000 RPM which reduces processing time significantly for applications such as mixing, shredding, chopping, or emulsification. At 29000 RPM the noise emission is 72 dB(A).
- The generator shaft is constructed of 316L stainless steel and provides reliable results with extremely high precision and speed, while still being easy to hold and light weight for one hand operations. Generators and rotors can be combines to suit various applications, even suitable for solvents and abrasive substances.
- This homogenizer has a 6 position control dial. The smooth motor drive provides safe and comfortable operation and an overload protection feature increases the life span of the motor.
- This product comes with a 2 year warranty.
Additional Information
| Brand | Scilogex |
|---|---|
| UNSPSC | 41101504 |
| Type of Product | Homogenizer |
| Speed Range | 10000 - 29000 RPM |
| Accessory Type | No |
| Immersion Length | 215 mm |
| Equipment Compatibility | No |
| Fineness | Suspensions & Emulsion (10 - 15 μm) & (1 - 10 μm) |
| Accessory Volume | No |
| Noise Emission | 72 dB(A) at 29000 RPM |
| Capacity | 5000 mL |
| Control Type | 6 Position Control Dial |
| Motor Type | 130 Watt, Universal Motor |
| Voltage | 110V |
| Weight | 20 lbs. |
| Dimensions | 2.5 L x 2.5 W x 9 H " |
Price:
$3162.66
Ships in 1-3 days if in stock, contact us for current availability
