Quick Overview

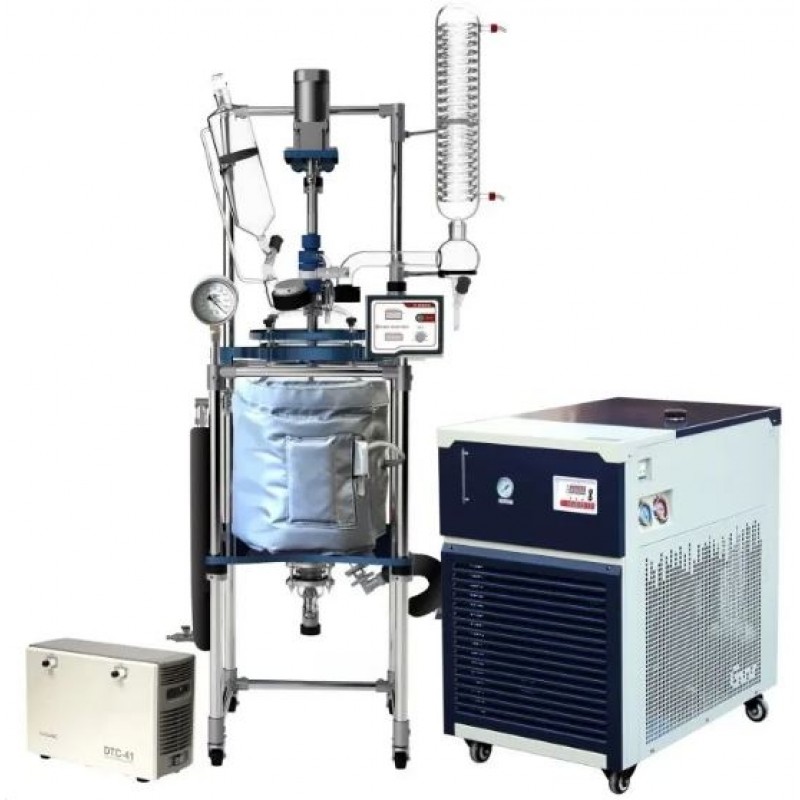

Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed.
Now includes a FREE high quality thermo insulation jacket (a $459 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors.
Now includes a FREE high quality thermo insulation jacket (a $459 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors.
Details
* This package does not include the Chiller for top condenser or certification. Contact us if you would like these features added for an additional cost
One year warranty and lifetime US-based parts, service, and support.
Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
Adjustable stirring rate provides great torque or high speed.
Patented PTFE stirring rod bearing for reliable and quiet operation.
Optional multi-layer stirring blades for optimal reaction results.
Wide range of temperature operations, from -110F to 400F.
Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
Easily visual operation with digital speed and temperature displays.
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
Model: R20
Electrical requirements: 110V 60Hz or 220V 50/60Hz, 1-PH, 90W
Reaction glass vessel capacity: 5.3 gallons (20L)
Cooling/heating jacket capacity: 1.6 gallons (6L)
Glass material: High borosilicate glass 3.3
Rotation controller: Digital controller with variable frequency drive
Maximum jacket pressure: 4.4 psi or 0.03 MPa
Drain valve: Flush seal design with large opening and flat flange clamp
Agitator: impeller, 304 stainless steel with PTFE liner
Condenser: Dual-cooling coil design
Funnel: Pressure equalizing
Vacuum gauge: Mechanical
Swivel caster Four
Glass vessel temperature range: -110F to 400F
Vacuum level: < 700 torrs
Vacuum sealing: Glass or PTFE
Drain port ground clearance: 13 inches
Reactor dimensions (WxDxH): 20 x 27 x 80"
Shipping dimensions: 24 x 75 x 31"
One year warranty and lifetime US-based parts, service, and support.
Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
Adjustable stirring rate provides great torque or high speed.
Patented PTFE stirring rod bearing for reliable and quiet operation.
Optional multi-layer stirring blades for optimal reaction results.
Wide range of temperature operations, from -110F to 400F.
Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
Easily visual operation with digital speed and temperature displays.
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
Model: R20
Electrical requirements: 110V 60Hz or 220V 50/60Hz, 1-PH, 90W
Reaction glass vessel capacity: 5.3 gallons (20L)
Cooling/heating jacket capacity: 1.6 gallons (6L)
Glass material: High borosilicate glass 3.3
Rotation controller: Digital controller with variable frequency drive
Maximum jacket pressure: 4.4 psi or 0.03 MPa
Drain valve: Flush seal design with large opening and flat flange clamp
Agitator: impeller, 304 stainless steel with PTFE liner
Condenser: Dual-cooling coil design
Funnel: Pressure equalizing
Vacuum gauge: Mechanical
Swivel caster Four
Glass vessel temperature range: -110F to 400F
Vacuum level: < 700 torrs
Vacuum sealing: Glass or PTFE
Drain port ground clearance: 13 inches
Reactor dimensions (WxDxH): 20 x 27 x 80"
Shipping dimensions: 24 x 75 x 31"
Additional Information
| Brand | Across International |
|---|---|
| UNSPSC | 41104801 |
