Quick Overview
SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.
Every vacuum oven goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving the warehouses.
Manufactured in accordance with
UL 61010-1
CSA C22.2
ISO 9001:2000
ISO 12100-1:2003, ISO 12100-2:2003
EN1050:1996, EN294:1992, EN60204-1:2006
CE
Every vacuum oven goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving the warehouses.
Manufactured in accordance with
UL 61010-1
CSA C22.2
ISO 9001:2000
ISO 12100-1:2003, ISO 12100-2:2003
EN1050:1996, EN294:1992, EN60204-1:2006
CE
Details

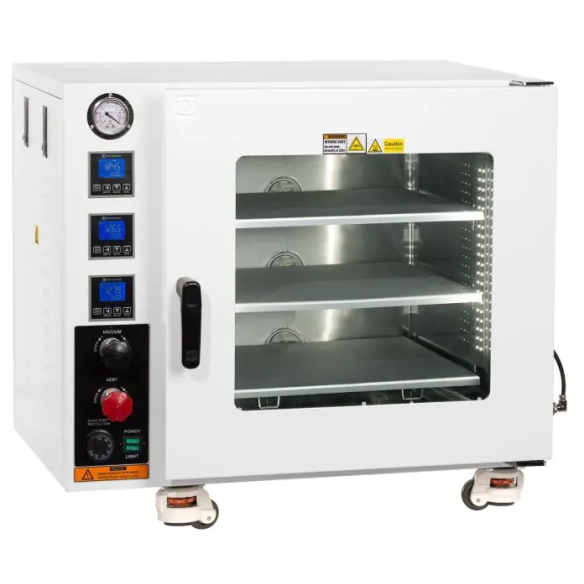

Introducing the new UL certified 3.2. cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Features
UL certified.
New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
Three aluminum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
Dual layer observation window with 5/8" tempered safety glass.
4th gen low proportional gain temperature controllers keep your oven temperature accurate
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
Built-in swivel casters with leveling feet.
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
All ovens shipped from New Jersey or Nevada location for quick delivery.
2-year warranty and lifetime US-based parts and service support.
Vacuum oven specifications
Electric
110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
or
220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
Heater 500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient
and uniform heating.
Chamber
Size: 18 x 18 x 18"
Material: Stainless steel
Capacity: 3.2 cubic feet
Temperature control
Controller: low proportional gain, microcomputer PID controlled with LCD display
Range: ambient to 250°C (or 480°F)
Display units: Fahrenheit or Celsius
Uniformity: +/- 5% of setpoint
Dwelling timer range: 1 to 9999 minutes
Warm-up time to 100°F: 35 minutes
Warm-up time to 480°F: 60 minutes
Vacuum
Ultimate vacuum level: better than 500 microns/millitorrs
(may vary based on your altitude, click here to learn more)
Mechanical gauge range: 0 to 30 inch mercury

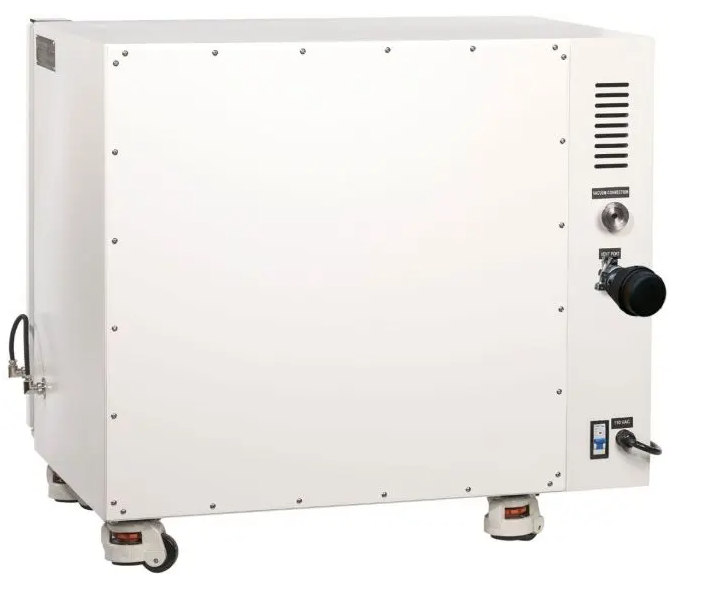

Vacuum port: KF25 flange x 1
Vent port: KF25 flange x 1

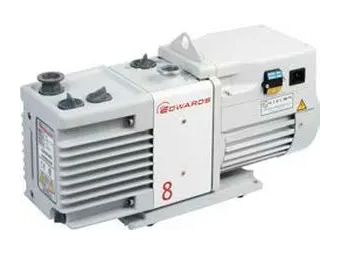

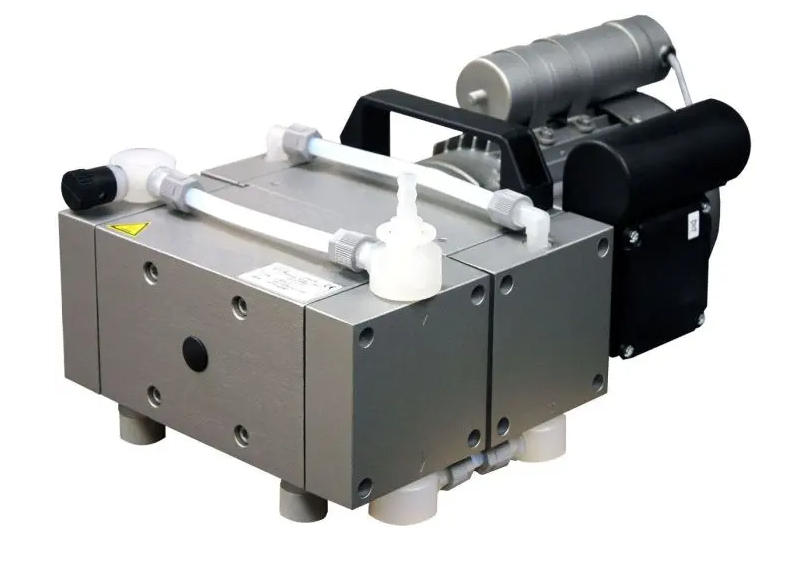

Vacuum pump: Sold separately
Weight Unit: 260 Lbs, shipping: 400 Lbs
Dimensions (WxDxH) Unit: 30.5 x 24 x 29"
Shipping: 36 x 33 x 35"
Shelves
Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each
Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH)
Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2
Distance between shelves (without stackable shelves): 4.75 inches
Distance between shelves (with 3 stackable shelves): 2.25 inches
Max. load capacity per shelf: 20 Lbs
Door gasket material Silicone or Viton
Observation window 1/2" tempered safety glass
Safety
Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial
In-door lights White LED
Warranty 2 years
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Features
UL certified.
New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
Three aluminum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
Dual layer observation window with 5/8" tempered safety glass.
4th gen low proportional gain temperature controllers keep your oven temperature accurate
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
Built-in swivel casters with leveling feet.
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
All ovens shipped from New Jersey or Nevada location for quick delivery.
2-year warranty and lifetime US-based parts and service support.
Vacuum oven specifications
Electric
110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
or
220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
Heater 500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient
and uniform heating.
Chamber
Size: 18 x 18 x 18"
Material: Stainless steel
Capacity: 3.2 cubic feet
Temperature control
Controller: low proportional gain, microcomputer PID controlled with LCD display
Range: ambient to 250°C (or 480°F)
Display units: Fahrenheit or Celsius
Uniformity: +/- 5% of setpoint
Dwelling timer range: 1 to 9999 minutes
Warm-up time to 100°F: 35 minutes
Warm-up time to 480°F: 60 minutes
Vacuum
Ultimate vacuum level: better than 500 microns/millitorrs
(may vary based on your altitude, click here to learn more)
Mechanical gauge range: 0 to 30 inch mercury
Vacuum port: KF25 flange x 1
Vent port: KF25 flange x 1
Vacuum pump: Sold separately
Weight Unit: 260 Lbs, shipping: 400 Lbs
Dimensions (WxDxH) Unit: 30.5 x 24 x 29"
Shipping: 36 x 33 x 35"
Shelves
Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each
Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH)
Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2
Distance between shelves (without stackable shelves): 4.75 inches
Distance between shelves (with 3 stackable shelves): 2.25 inches
Max. load capacity per shelf: 20 Lbs
Door gasket material Silicone or Viton
Observation window 1/2" tempered safety glass
Safety
Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial
In-door lights White LED
Warranty 2 years
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Additional Information
| Brand | Across International |
|---|---|
| UNSPSC | 41104509 |
