Mfg Part Number
AT32e

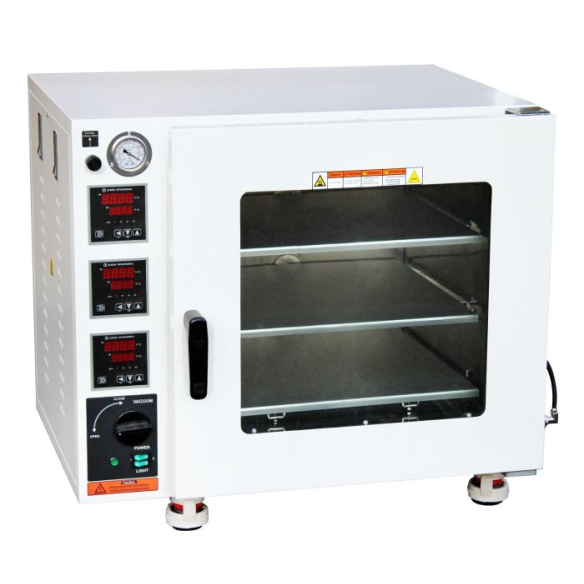

Across International ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights AT32e
Quick Overview
With Ai internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Manufactured in accordance with
ISO 9001:2000
ISO 12100-1:2003, ISO 12100-2:2003
EN1050:1996, EN294:1992, EN60204-1:2006
CE
$4,026.91
Order will ship within 1-3 business days
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Features
Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
Three alumimum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
Dual layer observation window with 5/8"" tempered safety glass.
3rd gen low proportional gain temperature controllers keep your oven temperature accurate.
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
Built-in swivel casters with leveling feet.
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
All ovens shipped from our New Jersey or Nevada location for quick delivery.
2-year warranty and lifetime US-based parts and service support.
Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
Specifications
Electric
110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
or
220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
Heater
500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient and uniform heating.
Chamber
Size: 18 x 18 x 18
Material: Stainless steel
Capacity: 3.2 cubic feet
Temperature control
Controller: 3rd gen low proportional gain, microcomputer PID controlled
Range: ambient to 150°C
Display units: Fahrenheit or Celsius
Uniformity: +/- 5% of setpoint
Dwelling timer range: 1 to 9999 minutes
Warm-up time to 100°F: 35 minutes
Warm-up time to 480°F: 60 minutes
Vacuum
Ultimate vacuum level: better than 500 microns/millitorrs
Mechanical gauge range: 0 to 30 inch mercury
Vacuum port: KF25 flange x 1
Vent port: 1/4" ball valve
Weight
Unit: 240 Lbs, shipping: 380 Lbs
Dimensions (WxDxH)
Unit: 30.5 x 24 x 29""
Shipping: 36 x 33 x 35""
Shelves
Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25"" (WxD) each
Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25"" (WxDxH)
Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2
Distance between shelves (without stackable shelves): 4.75 inches
Distance between shelves (with 3 stackable shelves): 2.25 inches
Max. load capacity per shelf: 20 Lbs
Door gasket material
Silicone (standard), Viton (optional)
Observation window
1/2" tempered safety glass
Safety
Built-in circuit breaker
Overheat shutoff protection
In-door lights
White LED
Warranty
1 year
Compliance
CE
| Brand | Across International |
|---|---|
| UNSPSC | 41104509 |
| Certificate | CE |
| Oven Type | Convection Oven |
| Heat Range | ambient to 150°C |
| Temperature Accuracy | 0.1 °C |
| Shelves | 3 |
| Weight | 400 lbs |
| Exterior Dimensions | 30.5 x 24 x 29 in |
| Power | 110 V |
| Volume | 3.2 cu.ft |
| Interior Dimensions | 18 x 18 x 18 in |
| Display | digital |
| Control Type | digital |
