Mfg Part Number
R100-A85t-UDP6

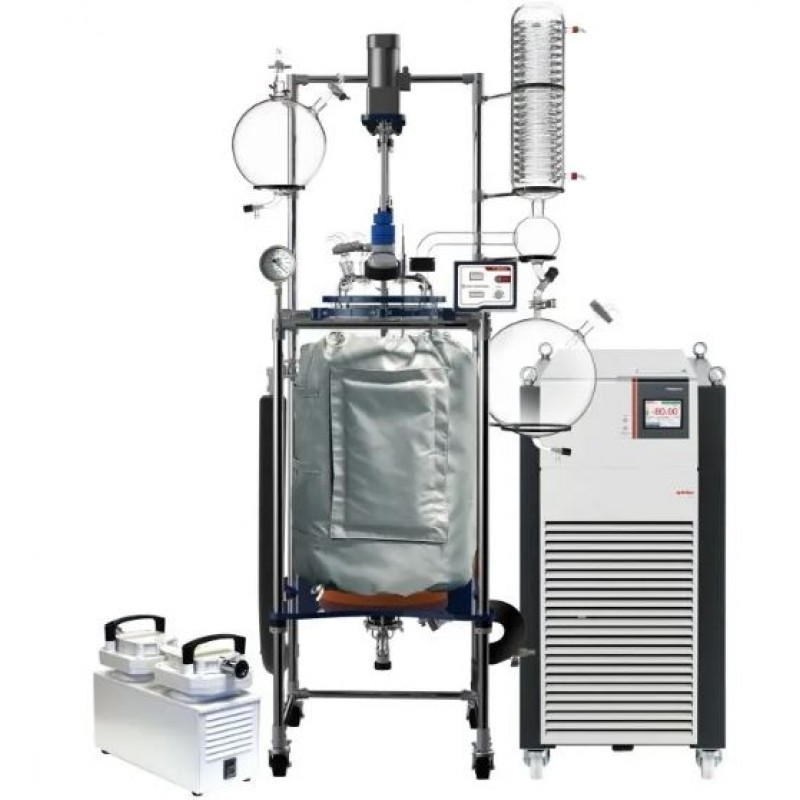

Across International R Series 100L Single Jacketed Glass Reactor W/ Chiller & Pump R100-A85t-UDP6
Quick Overview
Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed.
Now includes a FREE high quality thermo insulation jacket (a $779 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
$82,512.11
Order will ship within 1-3 business days
* This package does not include the Chiller for top condenser or certification. Contact us if you would like these features added for an additional cost
One year warranty and lifetime US-based parts, service, and support.
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
Adjustable stirring rate provides great torque or high speed.
Patented PTFE stirring rod bearing for reliable and quiet operation.
Optional multi-layer stirring blades for optimal reaction results.
Wide range of temperature operations, from -110F to 400F.
Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
Easily visual operation with digital speed and temperature displays.
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
Model: R100
Electrical requirements: 110V 60Hz or 220V 50/60Hz, 1-Phase, 250W
Reaction glass vessel capacity: 26 gallons (100L)
Cooling/heating jacket capacity: 8 gallons (30L)
Glass material: High borosilicate glass 3.3
Rotation controller: Digital controller with variable frequency drive
Rotation speed: 50 to 500 rpm
Maximum jacket pressure: 4.4 psi or 0.03 MPa
Drain valve: Flush seal design with large opening and flat flange clamp
Agitator: impeller, 304 stainless steel with PTFE liner
Funnel: Pressure equalizing
Vacuum gauge: Mechanical
Swivel caster: Four
Glass vessel temperature range: -110F to 400F
Vacuum level: < 700 torrs
Vacuum sealing: Glass or PTFE
Drain port ground clearance: 13.5 inches
Unit dimesions (WxDxH): 28 x 42 x 95"
| UNSPSC | 41104801 |
|---|
