Mfg Part Number
H100-7-UL.110

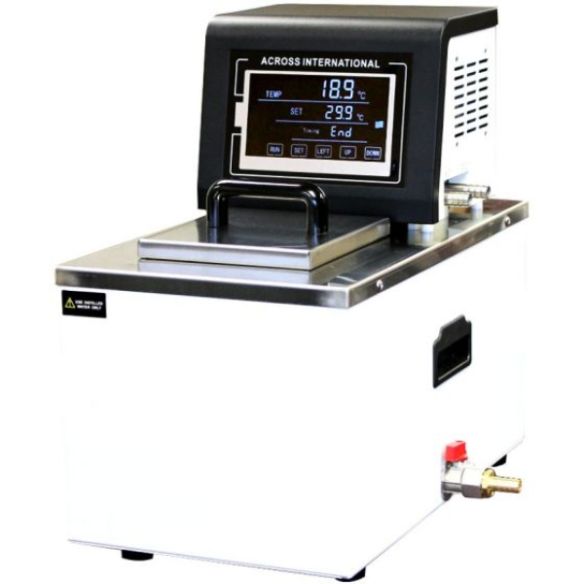

Ai 100°C 7L Capacity Compact Heated Recirculator 110V
Quick Overview
Digital microprocessor PID controlled
Display: 7" touch screen
Display unit: Celsius °C
Temperature step: 0.1°C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to 100°C
$1,302.44
Order will ship within 1-3 business days
Specifications
Model: H100-7
Temperature range: Ambient to 100°C (No load)
Electrical requirements: 110V 60Hz 1-Phase 1,600 watts:
Heating capacity: 1,500 watts
Recirculating pump: Pumping speed: 20 liters per minute, adjustable
Maximum head: 16 feet or 5 meters:
Reservoir: Dimensions: 9.5 x 12 x 7.5" (WxDxH):
Material: 304 stainless steel:
Capacity: 7 liters or 1.9 gallons:
Thermo fluid connection: 3/8" hose barb x 2:
Thermo fluid drain port: 3/8" hose barb with on/off valve:
Working environment: -15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters: No
Unit/shipping dimensions: 10.5 x 17 x 17" / 17 x 20 x 22" (WxDxH):
Warranty: One year
Compliance: UL 61010-1 :2012 Ed.3+R:29Apr2016
Safety:
Short circuit and ground protection
Over-current protection
Over-temperature protection:
Upper/lower temperature alarm protection:
| Brand | Across International |
|---|---|
| UNSPSC | 41103007 |
