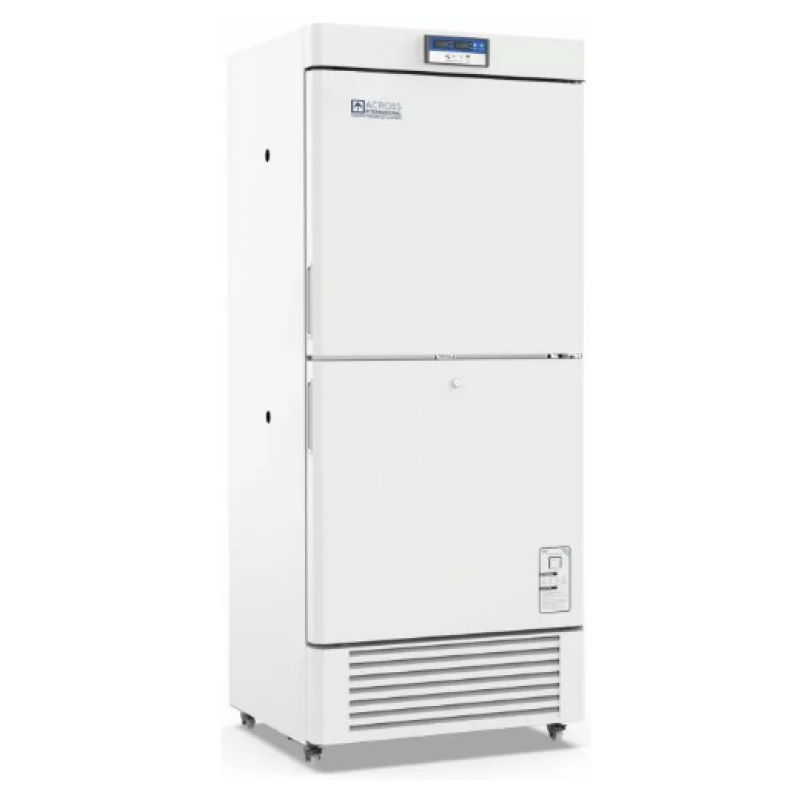

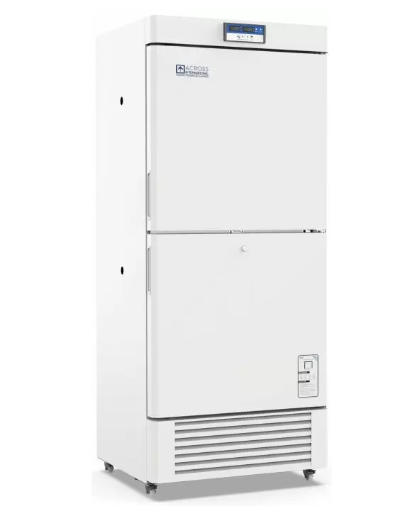

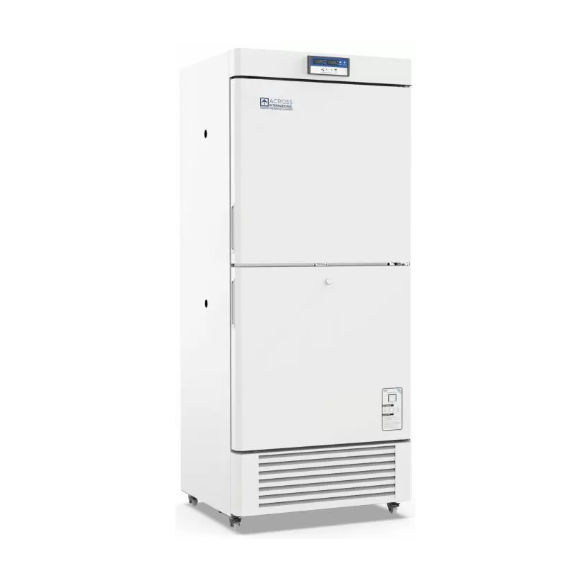

The Ai DeepFreeze series -40C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.
Important!
Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
This unit is NOT designed to be used on a mobile platform.
Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
High/low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Dual silicon sealing gaskets for ultra airtight operation
48-hour battery backup for controller

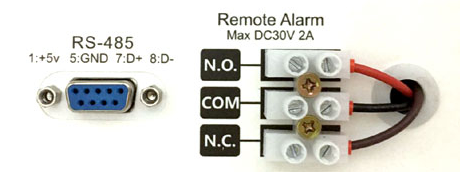

Built-in remote alarm and RS-485 port
USB interface for data export and storage
Environmentally friendly refrigerant
Use only RoSH compliant non-toxic components and materials
Specifications Electrical requirements
110V (±10%) 60Hz 1-Phase 8.89A
Performance
Temperature range: -20°C to -40°C
Compressor
Number of compressors: two
Cooling method: direct cooling
Defrost mode: manual
Style: parallel
Refrigerant: R290
Chamber
Dimensions: 25.5 x 22.5 x 24.5" (WxDxH)
Number of chambers: two
Material: stainless steel
Volume: 15.9 Cu Ft
Shelf
Quantity: two in each chamber, four in total
Style: fixed
Material: stainless steel
Door
2
Working environment
- Temperature: 16°C to 32°C
- Humidity: <80% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
Access port
Two
Communication
Remote alarm 4-20mA transmitter, USB, RS-485
Built-in swivel casters
Four, two with brakes
Noise level
52 dBA
Unit/shipping weight & dimensions
320 Lbs / 345 Lbs
30.5 x 26.5 x 73" / 37.5 x 34.5 x 80" (WxDxH)
Safety
Compressor over-temp protection
Compressor power surge delay protection
Power failure protection
Low battery, door open, filter clogging, system failure, sensor error, condenser
overheat alarms
External door with lock
Warranty
One year
