Quick Overview
Ai C20 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Compliance
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3
Compliance
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3
Details

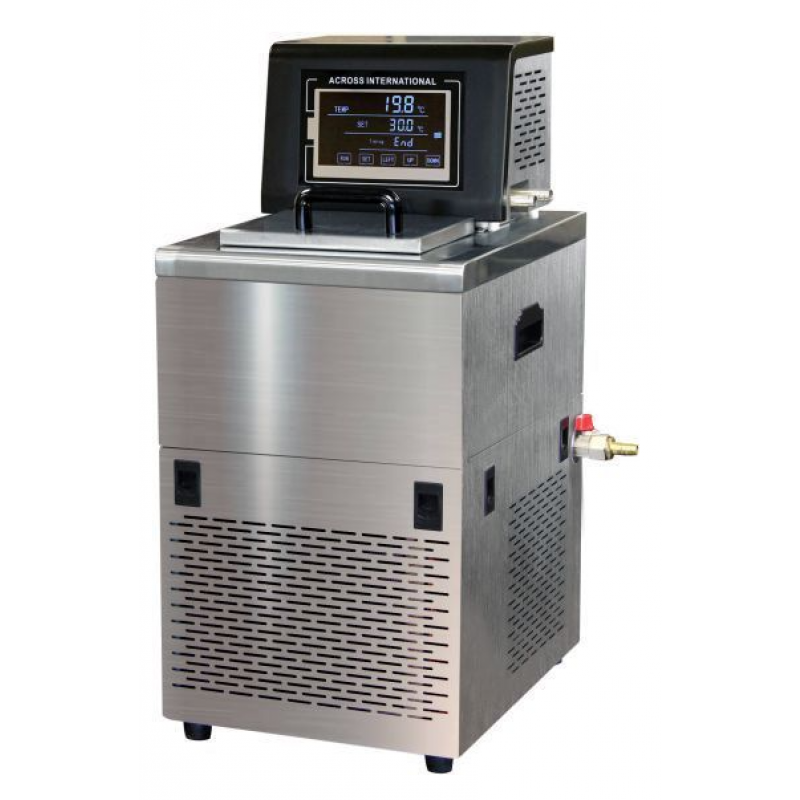

Ai C20 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while 2nd generation controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -20C ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C20 recirculating chiller features
ETL tested to UL and CSA standards
All stainless steel finish
Powerful 2,000 watts heater
Adjustable pumping speed up to 20 liters per minute
2nd generation 7" TFT touch screen controller
No dry ice or liquid nitrogen needed
ANSI standard all stainless steel reservoir
All steel construction for durability
Eco-friendly R404A refrigerant
Small footprint saves valuable lab space
Cost saving as the water consumption is completely eliminated
Connection tubing included
Recommended for 2L rotary evaporators and 2L-10L distillation systems
Specifications
Model C20-7sst
Temperature range -20°C to +99°C (No load)
Electrical requirements
110V 60Hz or 220V 60Hz 1-Phase 2,500 watts
Compressor Make: SECOP (formerly known as Danfoss), Germany
Number of compressor: one
Refrigerant: R404A (190g)

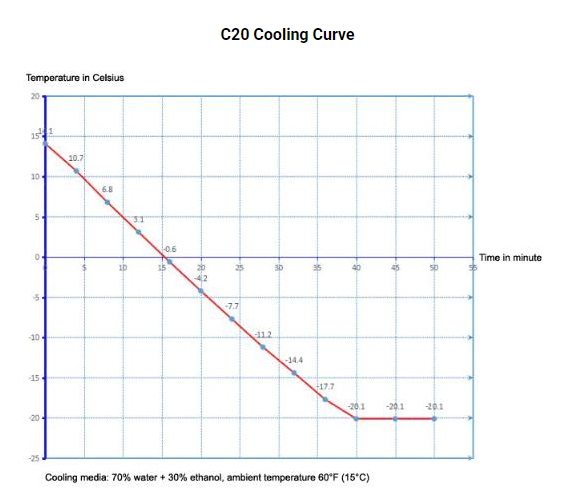

Cooling capacity:
420W at 20°C
410W at 10°C
390W at 0°C
350W at -10°C
300W at -20°C
Heating capacity 2,000 watts
Recirculating pump Pumping speed: 20 liters per minute, adjustable
Maximum head: 16 feet or 5 meters
Reservoir
Dimensions: 8 x 10 x 5.5" (WxDxH)
Material: Type 304 stainless steel, polished
Capacity: 7.3 liters or 1.9 gallons
Chilling fluid connection: 3/8" hose barb x 2
Chilling fluid drain port: 3/8" hose barb with on/off valve
Temperature controller
Type: Digital microprocessor PID controlled
Display: 7" TFT touch screen
Display unit: Degree Celsius °C
Temperature step: 0.1°C
Temperature accuracy: +/- 2°C
Temperature range: -20°C to 99°C
Recommended coolant
For 50°F/10°C or higher:
Distilled water
Between 50°F/10°C and -4°F/-20°C:
50% ethylene glycol + 50% distilled water
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters No
Unit/shipping dimensions
12 x 15.5 x 26" / 15 x 20 x 30" (WxDxH)
Unit/shipping weight 68 Lbs / 100 Lbs
Safety Compressor over-temp protection
Compressor power surge delay protection
Short circuit and ground protection
Over-current protection
Over-temperature protection
Upper/lower temperature alarm protection
Compressor delay start protection
Recommended for
Ai 2L, 5L or 10L short path distillation systems
Ai 2L SolventVap rotary evaporators
Warranty One year
Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.
IMPORTANT! -20C ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C20 recirculating chiller features
ETL tested to UL and CSA standards
All stainless steel finish
Powerful 2,000 watts heater
Adjustable pumping speed up to 20 liters per minute
2nd generation 7" TFT touch screen controller
No dry ice or liquid nitrogen needed
ANSI standard all stainless steel reservoir
All steel construction for durability
Eco-friendly R404A refrigerant
Small footprint saves valuable lab space
Cost saving as the water consumption is completely eliminated
Connection tubing included
Recommended for 2L rotary evaporators and 2L-10L distillation systems
Specifications
Model C20-7sst
Temperature range -20°C to +99°C (No load)
Electrical requirements
110V 60Hz or 220V 60Hz 1-Phase 2,500 watts
Compressor Make: SECOP (formerly known as Danfoss), Germany
Number of compressor: one
Refrigerant: R404A (190g)
Cooling capacity:
420W at 20°C
410W at 10°C
390W at 0°C
350W at -10°C
300W at -20°C
Heating capacity 2,000 watts
Recirculating pump Pumping speed: 20 liters per minute, adjustable
Maximum head: 16 feet or 5 meters
Reservoir
Dimensions: 8 x 10 x 5.5" (WxDxH)
Material: Type 304 stainless steel, polished
Capacity: 7.3 liters or 1.9 gallons
Chilling fluid connection: 3/8" hose barb x 2
Chilling fluid drain port: 3/8" hose barb with on/off valve
Temperature controller
Type: Digital microprocessor PID controlled
Display: 7" TFT touch screen
Display unit: Degree Celsius °C
Temperature step: 0.1°C
Temperature accuracy: +/- 2°C
Temperature range: -20°C to 99°C
Recommended coolant
For 50°F/10°C or higher:
Distilled water
Between 50°F/10°C and -4°F/-20°C:
50% ethylene glycol + 50% distilled water
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters No
Unit/shipping dimensions
12 x 15.5 x 26" / 15 x 20 x 30" (WxDxH)
Unit/shipping weight 68 Lbs / 100 Lbs
Safety Compressor over-temp protection
Compressor power surge delay protection
Short circuit and ground protection
Over-current protection
Over-temperature protection
Upper/lower temperature alarm protection
Compressor delay start protection
Recommended for
Ai 2L, 5L or 10L short path distillation systems
Ai 2L SolventVap rotary evaporators
Warranty One year
Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.
Additional Information
| Brand | Across International |
|---|---|
| UNSPSC | 41103007 |
