Quick Overview

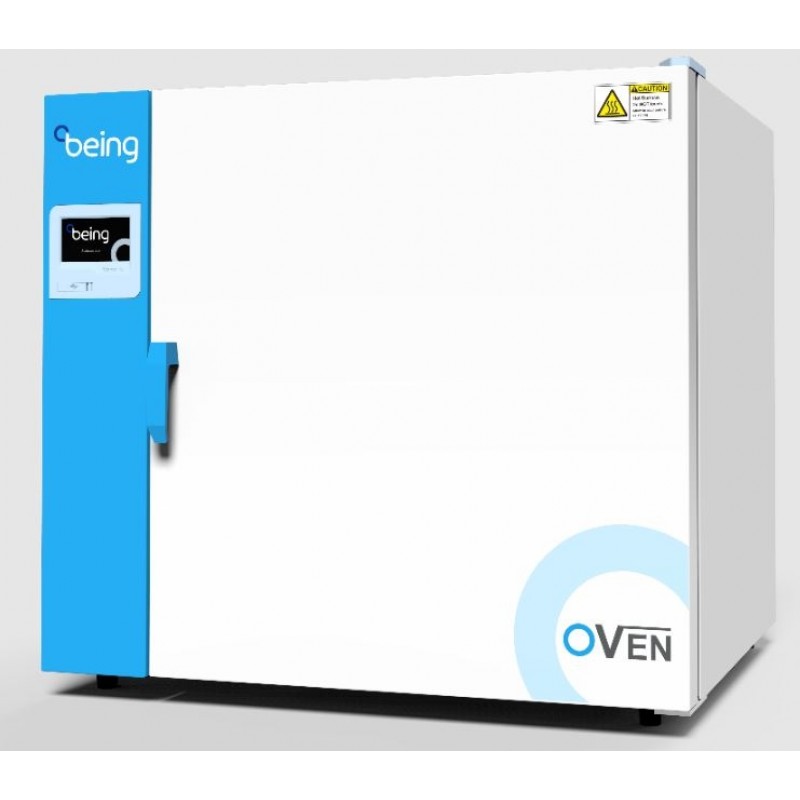

The BOF Forced-air Convection Drying Oven series distributes heat evenly inside the chamber with an integrated fan. This is ideal for drying protocols with very tight temperature requirements.
NEW Stackable Design and USB data collection compatibility.
Replacement for the BOF-120 (BO152120C) and BOF-120 (BO152120C) Mechanical Convection Drying Ovens
NEW Stackable Design and USB data collection compatibility.
Replacement for the BOF-120 (BO152120C) and BOF-120 (BO152120C) Mechanical Convection Drying Ovens
Details
Category: Oven - Mechanical Convection
Special Features: Touch Screen Programmable P.I.D. Controller, Multiple Safety Alarms
Temperature range: Ambient+18 ℉ - 572 ℉ , Ambient+10℃ - 300℃
Temperature stability: ±0.5
Display resolution: 0.1
Uniformity at 100℃: ±3.0
Heated to 100℃: 40 mins
Chamber volume: 4.2 Cuft 121 Liters
Work chamber material: stainless steel
Internal Dimension (W×H×D): 20.5×20.9×17.3(inch)
External Dimension (W×H×D): 30.9×30.1×29.7(inch)
Max number of shelves: 12
Number of shelves: 3
Max. load per shelf: 20 kg
Timer: 1~5999mins
Power Consumption: 2050W
Power supply: 110V 60Hz
Warranty: 2 years
Certification: ETL
Indentations stamped into the unit’s sheet metal provide easy alignment and stability. The feet are height-adjustable to level the units, front to back and side to side. Insert a USB flash drive or cable into the oven’s controller before running your experiment to automatically store the work cycle parameter data on your device at 1-minute intervals.
Special Features: Touch Screen Programmable P.I.D. Controller, Multiple Safety Alarms
Temperature range: Ambient+18 ℉ - 572 ℉ , Ambient+10℃ - 300℃
Temperature stability: ±0.5
Display resolution: 0.1
Uniformity at 100℃: ±3.0
Heated to 100℃: 40 mins
Chamber volume: 4.2 Cuft 121 Liters
Work chamber material: stainless steel
Internal Dimension (W×H×D): 20.5×20.9×17.3(inch)
External Dimension (W×H×D): 30.9×30.1×29.7(inch)
Max number of shelves: 12
Number of shelves: 3
Max. load per shelf: 20 kg
Timer: 1~5999mins
Power Consumption: 2050W
Power supply: 110V 60Hz
Warranty: 2 years
Certification: ETL
Indentations stamped into the unit’s sheet metal provide easy alignment and stability. The feet are height-adjustable to level the units, front to back and side to side. Insert a USB flash drive or cable into the oven’s controller before running your experiment to automatically store the work cycle parameter data on your device at 1-minute intervals.
Additional Information
| Brand | Being Scientific |
|---|---|
| UNSPSC | 41120000 |
