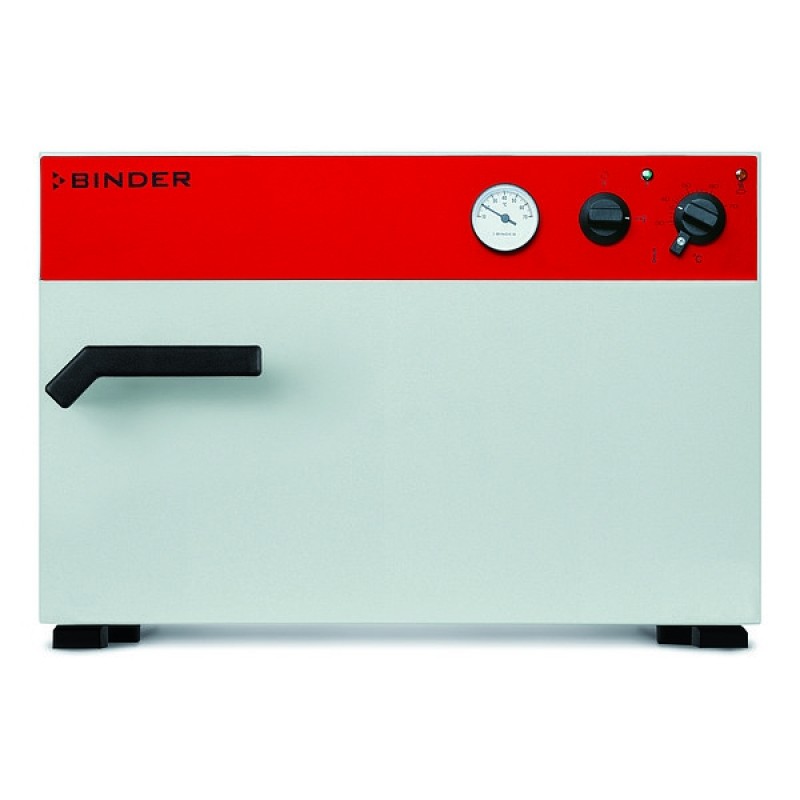

BINDER B028-120V Series B Classic.Line - Standard-Incubators, With Mechanical Adjustment, 9010-0067

Benefits

Safe: Unique condensate and dry-out protection for all operating conditions
Reliable: Fail-safe operation due to intelligent thermoelectric tempering
Smart: Temperatures programmable for intermitted incubation and refrigeration
Economical: Minimum energy consumption thanks to optimized thermoelectric cooling

Important characteristics

Temperature range: 0 °C through +70 °C (max. 26 °C below the ambient temperature)
APT.line™ preheating chamber technology
Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
Inner door made of tempered safety glass
Inner chamber made completely of stainless steel
2 stainless steel racks
Adjustable condensate protection
Access port with silicone plug Ø 30 mm
LCD to display temperature along with additional information and alarms
Internal data logger, measured values can be read out in open format via USB
Unit self-test for comprehensive status analysis

Technical specifications

Performance Data Temperature:

Heating-up time to 37 °C [min]: 95
Temperature fluctuation at 37 °C [± K]: 1
Temperature range: 30…70
Temperature variation at 37 °C [± K]: 1.5

Electrical data

Nominal power [kW]: 0.25
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120

Doors

Unit doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 16.74
Height net [in]: 15.96
Width net [in]: 22.85

Internal Dimensions

Depth [in]: 9.85
Height [in]:11.03
Width [in]: 15.76

Measures

Interior volume [cu.ft.]: 1
Load per rack [lbs]: 22
Net weight of the unit (empty) [lbs]: 51
Permitted load [lbs]: 55
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Fixtures

Number of shelves (std./max.): 2/4
