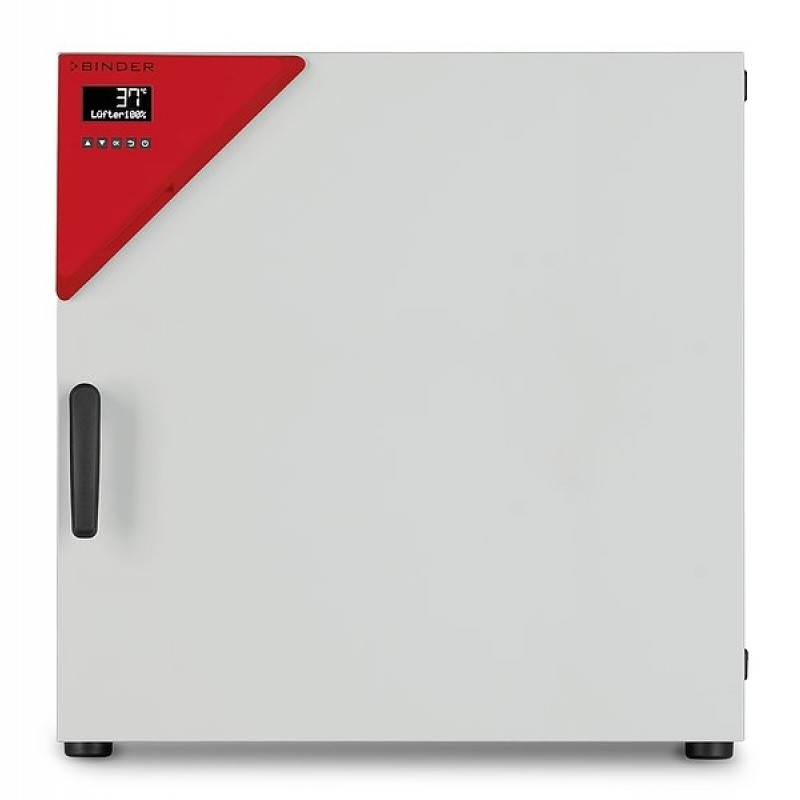

BINDER BD115UL-120V Series BD Avantgarde.Line - Standard-Incubators, With Gravity Convection, 9010-0326

Benefits

Excellent temporal and spatial temperature accuracy
High process reliability
100 °C disinfection routine

Important characteristics

Temperature range: ambient temperature plus 5 °C to 100 °C
High temperature accuracy thanks to APT.line™ technology
Gravity convection
Controller with LCD display
Electromechanical control of the exhaust air flap
Inner door made of tempered safety glass
2 chrome-plated racks
Units up to 115 L are stackable
Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
Ergonomic handle design
USB port for recording data

Technical specifications

Performance Data Temperature:

Heating-up time to 37 °C [min]: 55
Recovery time after 30 seconds door open at 37 °C [min]: 15
Temperature fluctuation at 37 °C [± K]: 0.1
Temperature range +5 °C above ambient temperature to [°C]: 100
Temperature variation at 37 °C [± K]: 0.3

Electrical data

Nominal power [kW]: 0.35
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 12.5

Doors

Unit doors: 1

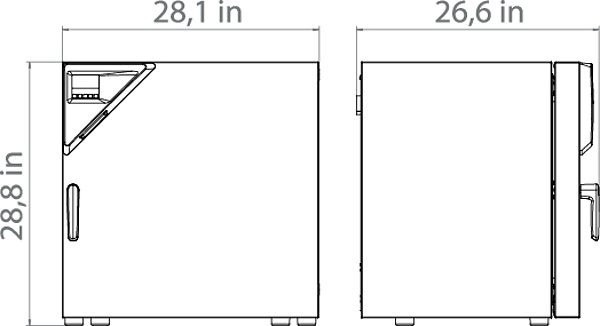

Housing dimensions not incl. fittings and connections

Depth net [in]: 23.84
Height net [in]: 27.78
Width net [in]: 27.97

Internal Dimensions

Depth [in]: 16.55
Height [in]: 20.88
Width [in]: 20.09

Measures

Interior volume [cu.ft.]: 4
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 126
Permitted load [lbs]: 331
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 37 °C [Wh/h]: 25

Fixtures

Number of shelves (std./max.): 2/5
