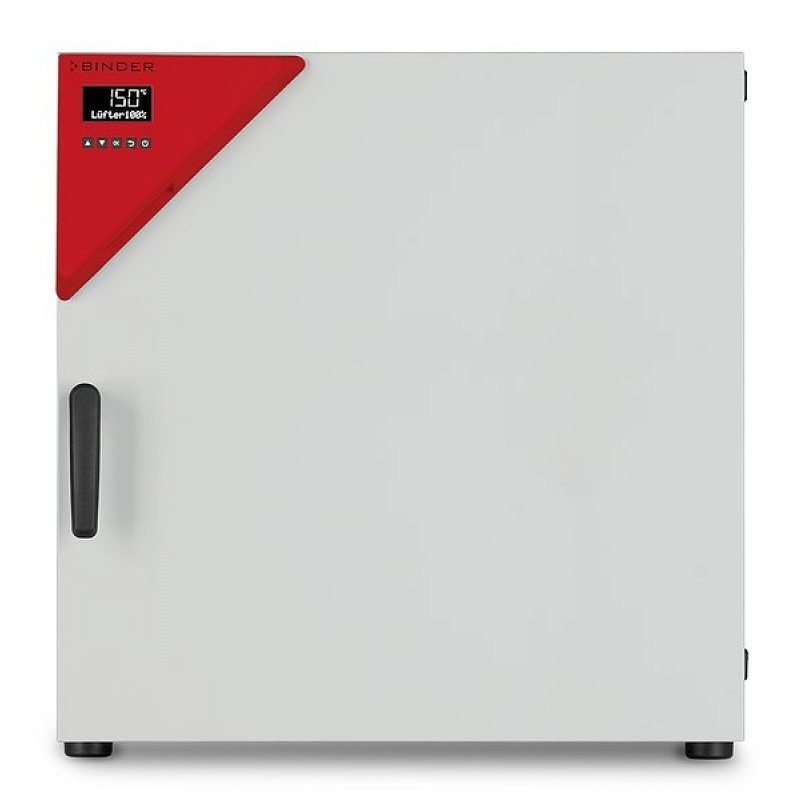

BINDER FD115UL-120V Series FD Avantgarde.Line - Drying And Heating Chambers, With Forced Convection, 9010-0306

Benefits

Best energy efficiency on the market
Excellent temporal and spatial temperature accuracy
USB connection for recording data
Temperature range up to +300 °C

Important characteristics

Temperature range: +10 °C above ambient temperature to +300 °C
High temperature accuracy thanks to APT.line™ technology
Forced convection
Controller with LCD display
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Units up to 115 L are stackable
Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
Ergonomic handle design
USB port for recording data

Technical specifications

Performance Data Temperature:

Heating-up time to 150 °C [min]: 18
Recovery time after 30 seconds door open at 150 °C [min]: 4
Temperature fluctuation at 150 °C [± K]: 0.3
Temperature range +10 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 1.7

Air change data

Air change (approx.) at 100 °C [x/h]: 32

Electrical data

Nominal power [kW]: 1.4
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 12.5

Doors

Unit doors: 1

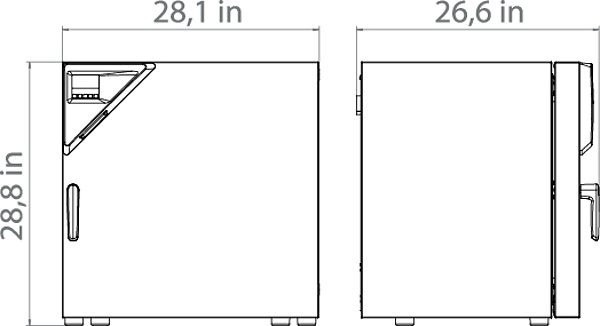

Housing dimensions not incl. fittings and connections

Depth net [in]: 23.84
Height net [in]: 28.96
Width net [in]: 27.97

Internal Dimensions

Depth [in]: 15.17
Height [in]: 21.67
Width [in]: 21.67

Measures

Interior volume [cu.ft.]: 4.1
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 126
Permitted load [lbs]: 331
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 150 °C [Wh/h]: 340
Sound-pressure level [dB(A)]: 43

Fixtures

Number of shelves (std./max.): 2/5
